Gree GMV5

GREE Photovoltaic Direct-driven Inverter Multi VRF Units
43

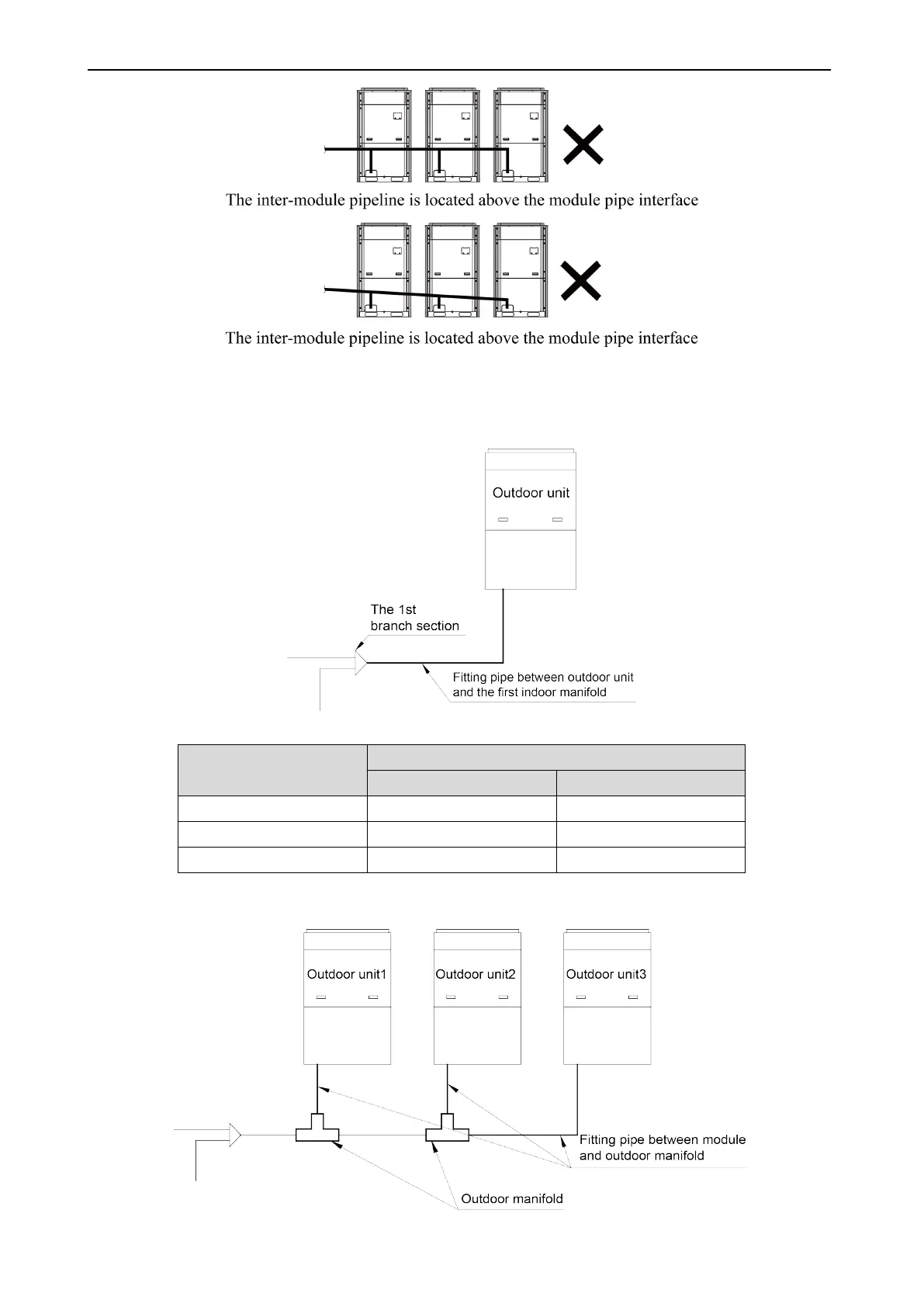

5.5 Fitting pipe between Outdoor Unit and the First Manifold
1. For single module system, pipe size (between outdoor unit and the first manifold) is determined
by that of outdoor unit.
Pipe size of basic outdoor module is shown as follows:
Basic Module
Pipe between ODU and the first branch of IDU
Gas Pipe mm(inch)
Liquid Pipe mm(inch)
GMV-Y72WM/C-F(U)
Φ19.05(3/4)
Φ9.52(3/8)
GMV-Y96WM/C-F(U)
Φ22.2(7/8)
Φ9.52(3/8)
GMV-Y120WM/C-F(U)
Φ28.6(1-1/8)
Φ12.7(1/2)
2. For multi-module unit, select appropriate manifold connected to outdoor module as per the pipe
size of basic module. Pipe size of basic outdoor module is shown as follows:
