Super Free Match
Service Manual
INSTALLATION
67
4.2.6 Installation of the Indoor Unit
1) Requirements on the Installation Location
Ensure the hanger is strong enough to withstand the weight of the unit.
The drainage of the drain pipe is easy.
No obstacle is in the inlet/outlet and the air circulation is in good condition.

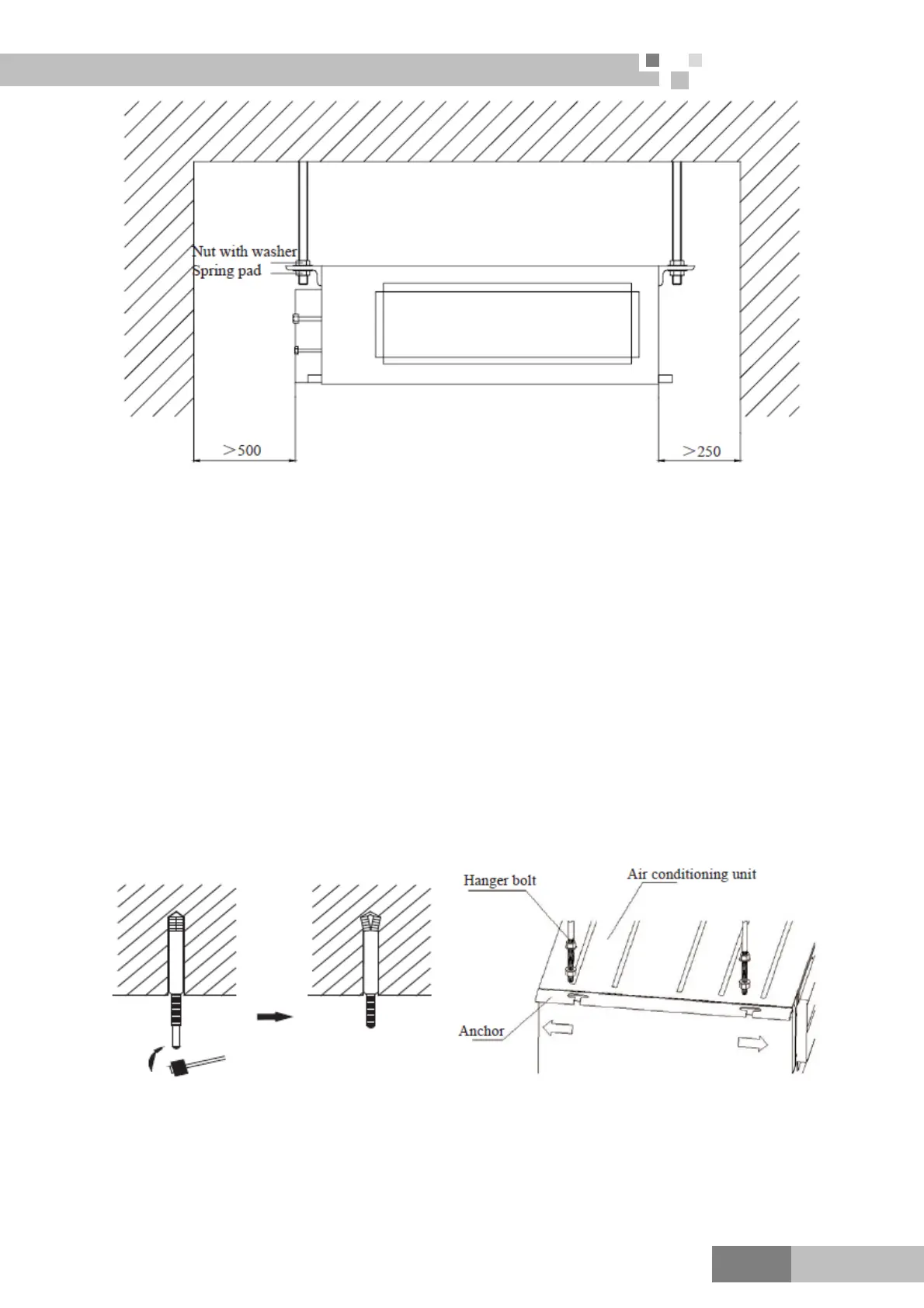

Ensure the installation space shown in the following figures is left for the access to maintenance.
It should be far away from where there is heat source, leakage of inflammable, explosive substances, or
smog.
It is the ceiling type unit (concealed in the ceiling).
The power cords and connection lines of the indoor and outdoor units must be at least 1m away from the
TV set or radio to avoid the image interference and noise ( even if 1m is kept, the noise may be
produced due to the strong electric wave).
2) Installation of the Indoor Unit
Insert the M10 expansion bolt into the hole, and then knock the nail into the bolt. Refer to the Outline
Dimension Drawings of the Indoor Unit for the distance between holes and see the following figures for the
installation of the expansion bolt.
To Next Page
