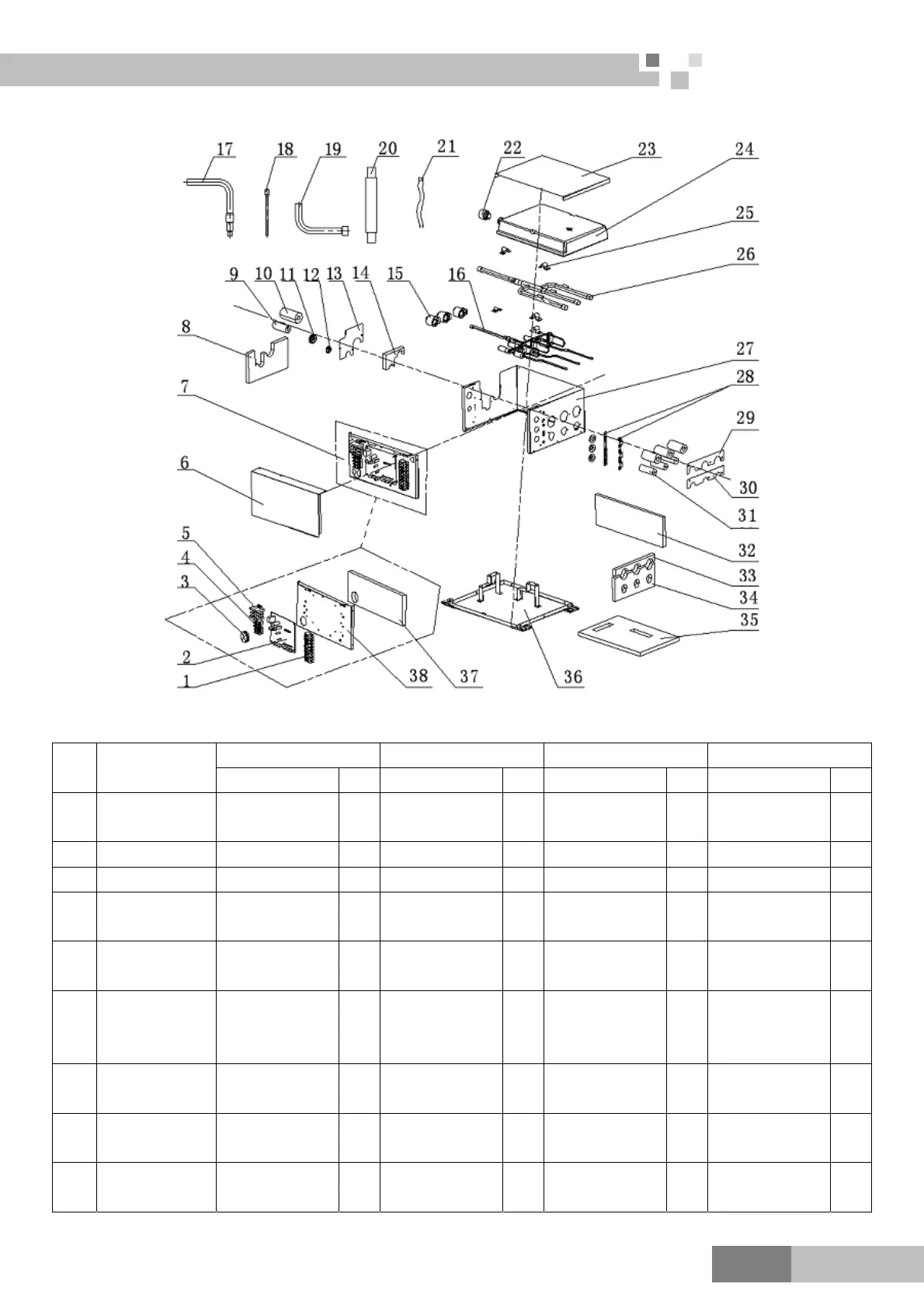

7.3 BU Module
FXA2A-D; FXA2B-D; FXA3A-D; FXA3B-D
Part list: FXA2A-D for EN01300120; FXA2B-D for EN01300080;
FXA3A-D for EN01300130; FXA3B-D for EN01300090.
NO. Description
FXA2A-D FXA2B-D FXA3A-D FXA3B-D
Code Qty Code Qty Code Qty Code Qty
1
Terminal
Board
420111041 2 420111041 2 420111041 3 420111041 3
2 Main Board 30276000002 1 30276000002 1 30276000002 1 30276000002 1
3 Rubber Ring 76515202 1 76515202 1 76515202 1 76515202 1
4
Terminal
Board
42011154 2 42011154 2 42011154 2 42011154 2
5
Terminal
Board
420111451 1 420111451 1 420111451 1 420111451 1
6
Electrical
Equipment
Plate
01424731P 1 01424731P 1 01424731P 1 01424731P 1
7
Electric Box
Sub-assy
01324100033 1 01324100033 1 01324100032 1 01324100032 1
8
Sponge(Left
base Frame)
12204440 1 12204440 1 12204440 1 12204440 1
9
Heat Insulation
Pipe 2
7509410000601 1 7509410000601 1 7509410000601 1 7509410000601 1
