MAINTENANCE
N
157

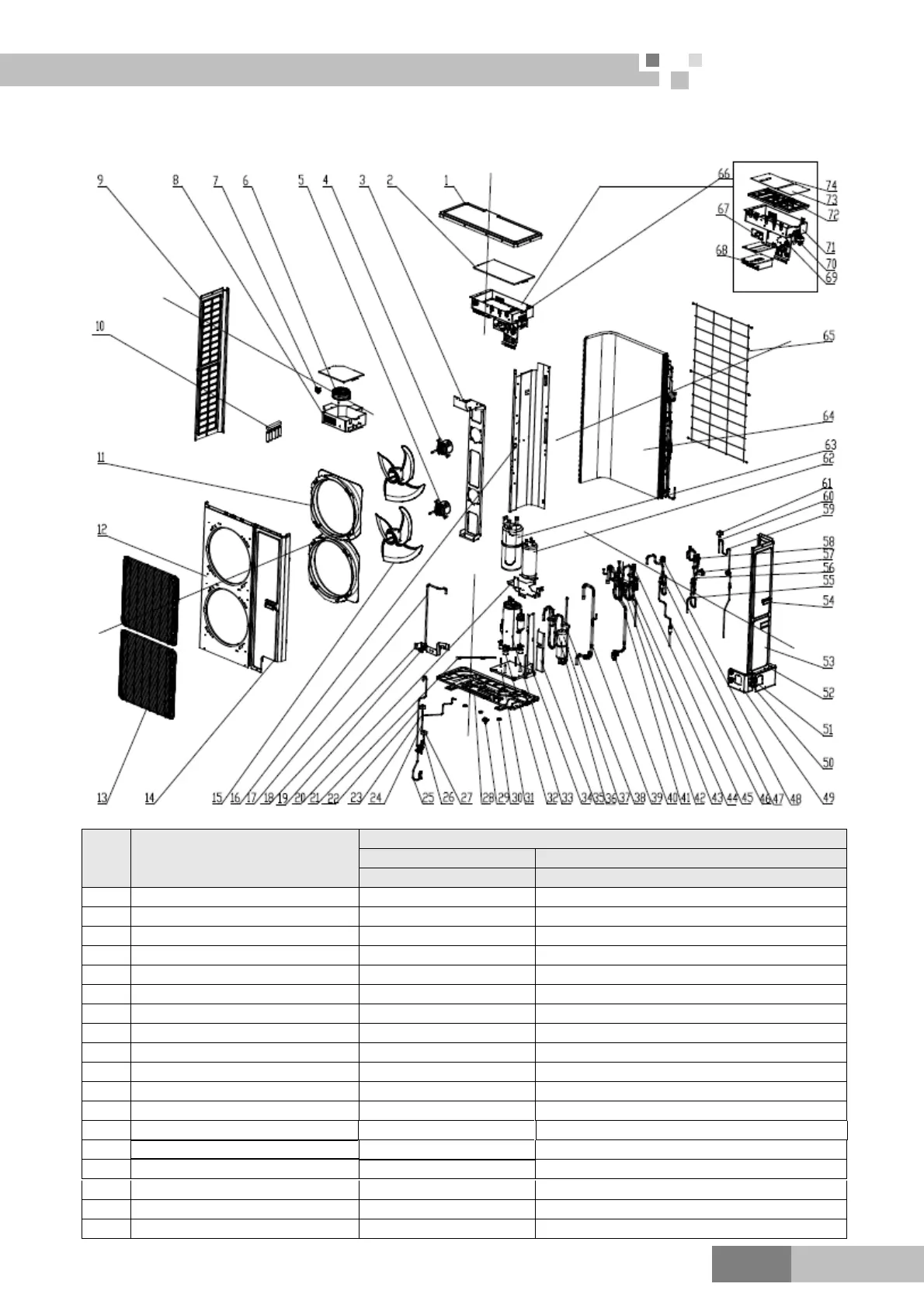

7 EXPLODED VIEWS AND PART LIST
7.1 Outdoor unit
Parts list:
NO. Name of Part
MULTIU48HP230V1BO
Product Code CN860W0330
Part Code Quantity
1 Coping 01264100008P 1
2 Electric Box Cover 012020000071 1
3 Motor Support Sub-Assy 017012000032 1
4 Brushless DC Motor 15704100013 1
5 Brushless DC Motor 1570410001301 1
6 PFC Inductance 340032000005 1
7 Cable Cross Loop 76512008 1
8
Inductance Box Sub-assy 01394100625 1
9 Left Side Plate 01314100013P 1
10 Sensor Sub-assy 39008000141G 1
11 Diversion Circle 10474100001 1
12 Cabinet 01514100002P 1
13 Front Grill
01574100009
1
14
Front Side Plate
01314100012P
1
15 Axial Flow Fan 10434100004 2
16 Clapboard Sub-Assy
1244100043
1
17 Cut off Valve Sub-Assy 07334100077 1
18 Joint Plank groupware 01344100113 1

Gree SUPER+ MULTI ULTRA Series Specifications

General

Brand	Gree
Model	SUPER+ MULTI ULTRA Series
Category	Air Conditioner
Language	English
