Gree SUPER+ MULTI ULTRA Series

Super Free Match
Service Manual
INSTALLATION
90

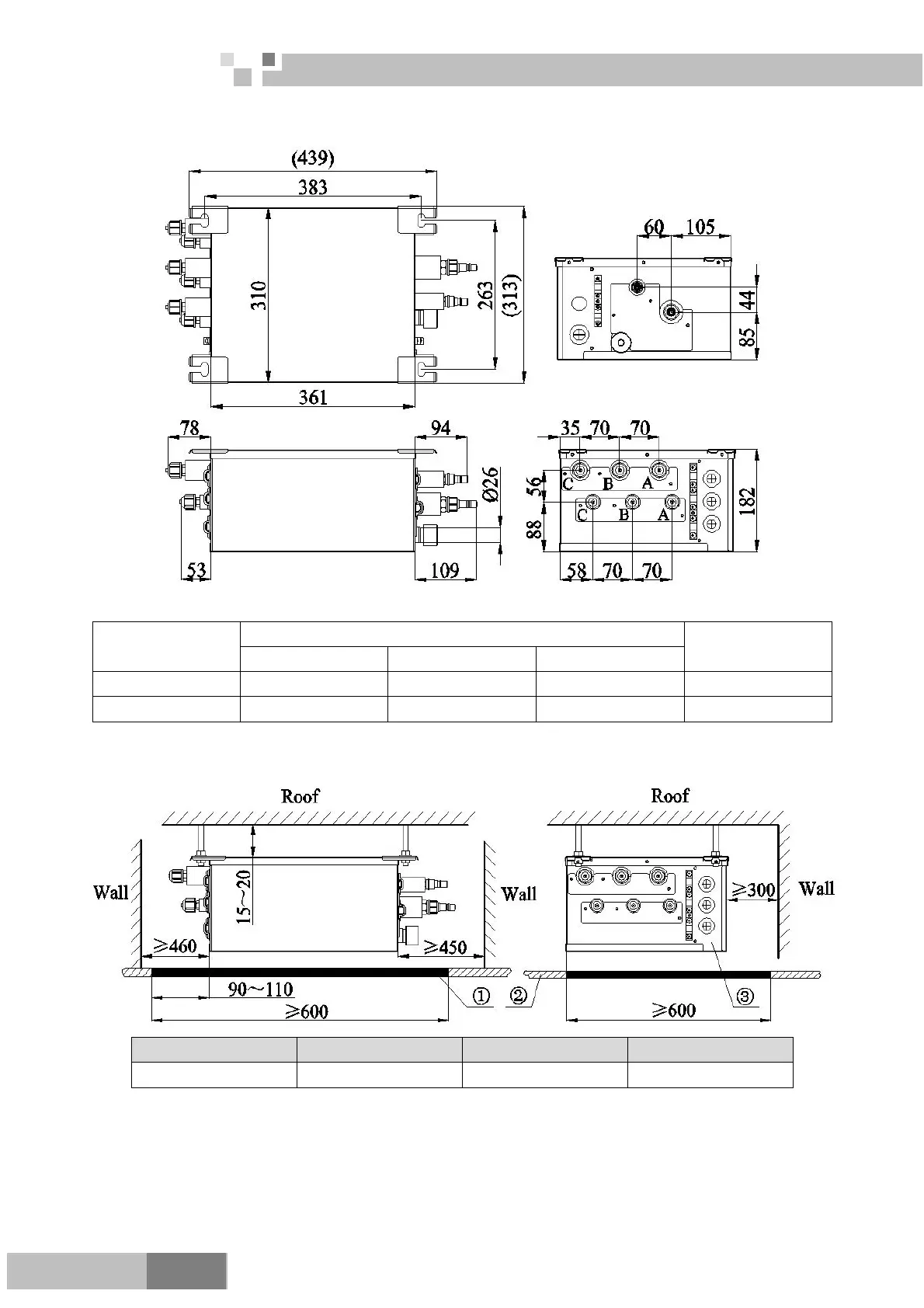

5.6 Outline Dimension and Servicing Space of FXA3A-D
1) Outline dimension
Sorts
Indoor unit side (mm)
Outdoor unit side
(mm)
Port A Port B Port C
Liquid pipe Φ6.35 Φ6.35 Φ6.35 Φ9.52
Gas liquid Φ9.52 Φ9.52 Φ9.52 Φ15.9
2) Installation and service space
NO.   ③
Name Servicing space Ceiling Electrical box side
