6) Recover the surface panel.
7) The temperature of refrigerant circuit will be high, please keep the interconnection cable away from the
copper tube.
8 INSTALLATION OF DRAINAGE PIPELINE
8.1 Material Quality Requirements for Condensate Pipe
Generally, the condensate pipe shall be water supply U-PVC pipe, adhered by using special glue. The other
materials available include: PP-R pipe, PP-C pipe and hot-dipped galvanized steel pipe. It is not allowed to use
aluminum plastic composite pipe.
8.2 Key Points for Condensate Pipe Installation

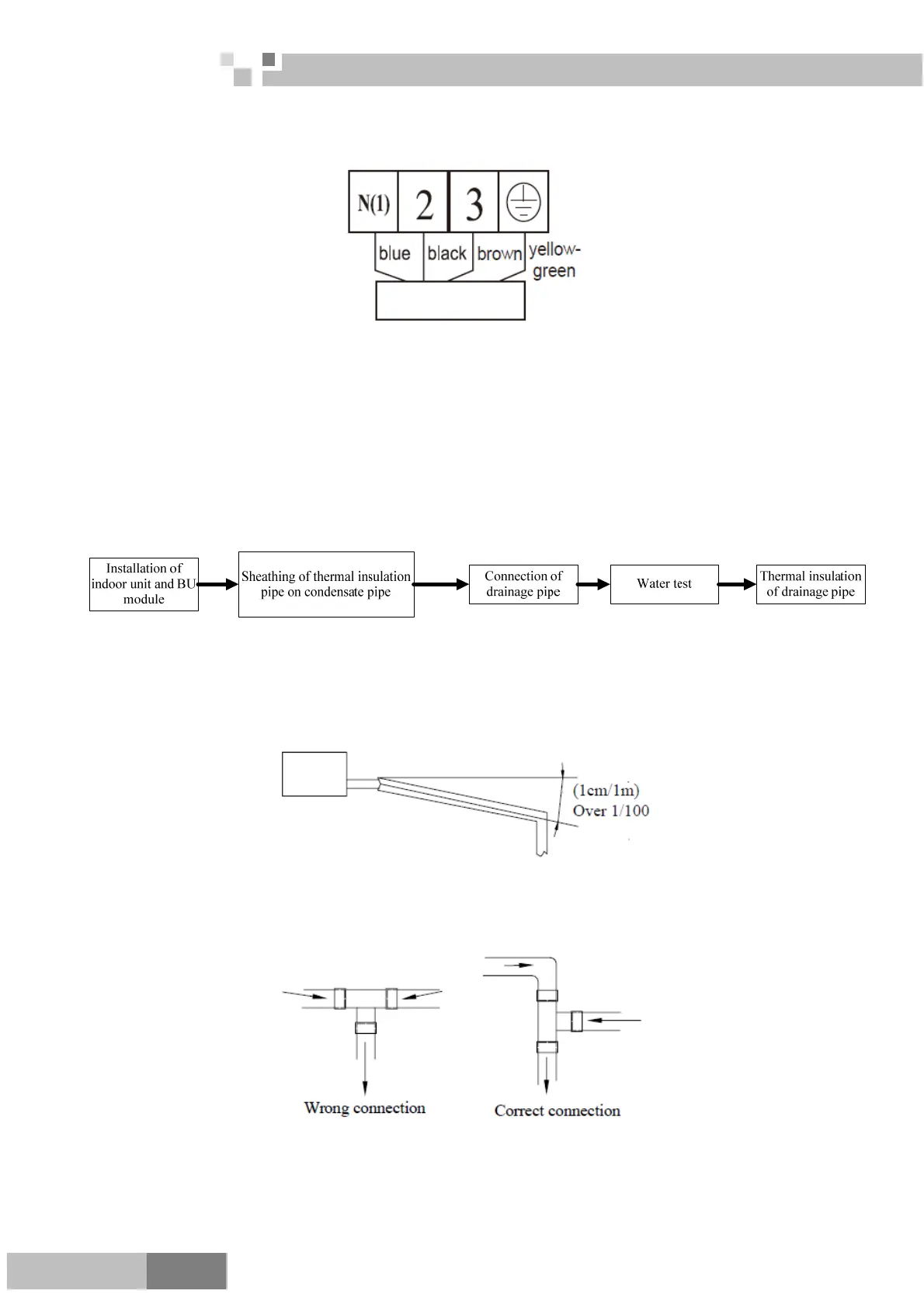

1) Work Order
2) Determine the direction and elevation of condensate pipe before installation. To ensure the gradient
smooth and straight, avoid intersecting with other pipelines. The height of the clamp fixing the pipe
hanger frame shall be adjustable and fixed from the outer of thermal insulation.
3) The gradient of condensate pipe shall be over 1% and the gradient of main pipe shall not be less than
0.3%, while there shall be no overhanging slope.
4) When connecting the 3-way section of condensate pipe, the 2-way straight section on 3-way pipe shall
be on the same gradient. The two ends of 2-way section shall not have different gradient. See the
schematics below:
5) Confluence toward the horizontal pipe shall be best from the upper. Back flow is easy to occur if from
the lengthwise direction.
To Next Page
