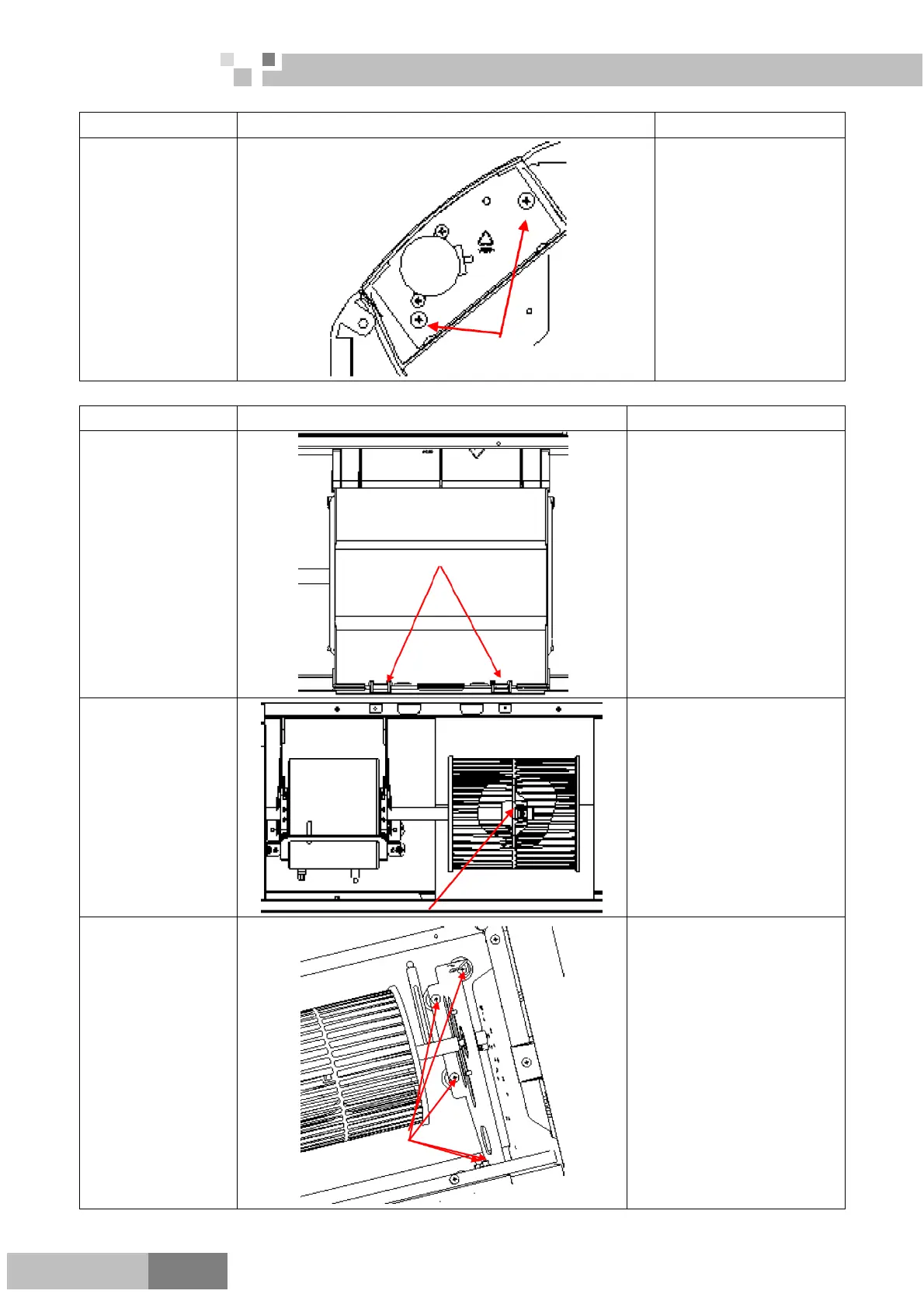

◆ Remove fixing plate sub-assy for air sweeping fans
Steps Illustrations Operation Instructions
Remove fixing plate
sub-assy for air
sweeping fans
Remove the screws shown
in the graph
◆ Remove fan and motor components
Steps Illustrations Operation Instructions
1. Remove front and
back scroll cases
Press the buckle at the joints of
front and back scroll cases
with hands and pull upward to
remove the front scroll case.
Then remove the screws on the
back scroll case. Lift the
buckle of back scroll case with
hands and remove it.(As is
shown in the graph, circle
represents 2 screws on left and
right.)
2.Remove fans
Remove the fixed screws of
fan wheel with inner
hexagonal and remove the
wheel. The inner hexagonal
and its direction of effect are
shown by the arrow in the
graph.
3. Remove bearing
fixing plates
Remove 4 screws on the
bearing fixing plates with
screwdriver. (As shown in the
box in the graph)
