Safety Reminder: Make sure to unplug the machine before assembling.
GREEN STAR ASSEMBLY

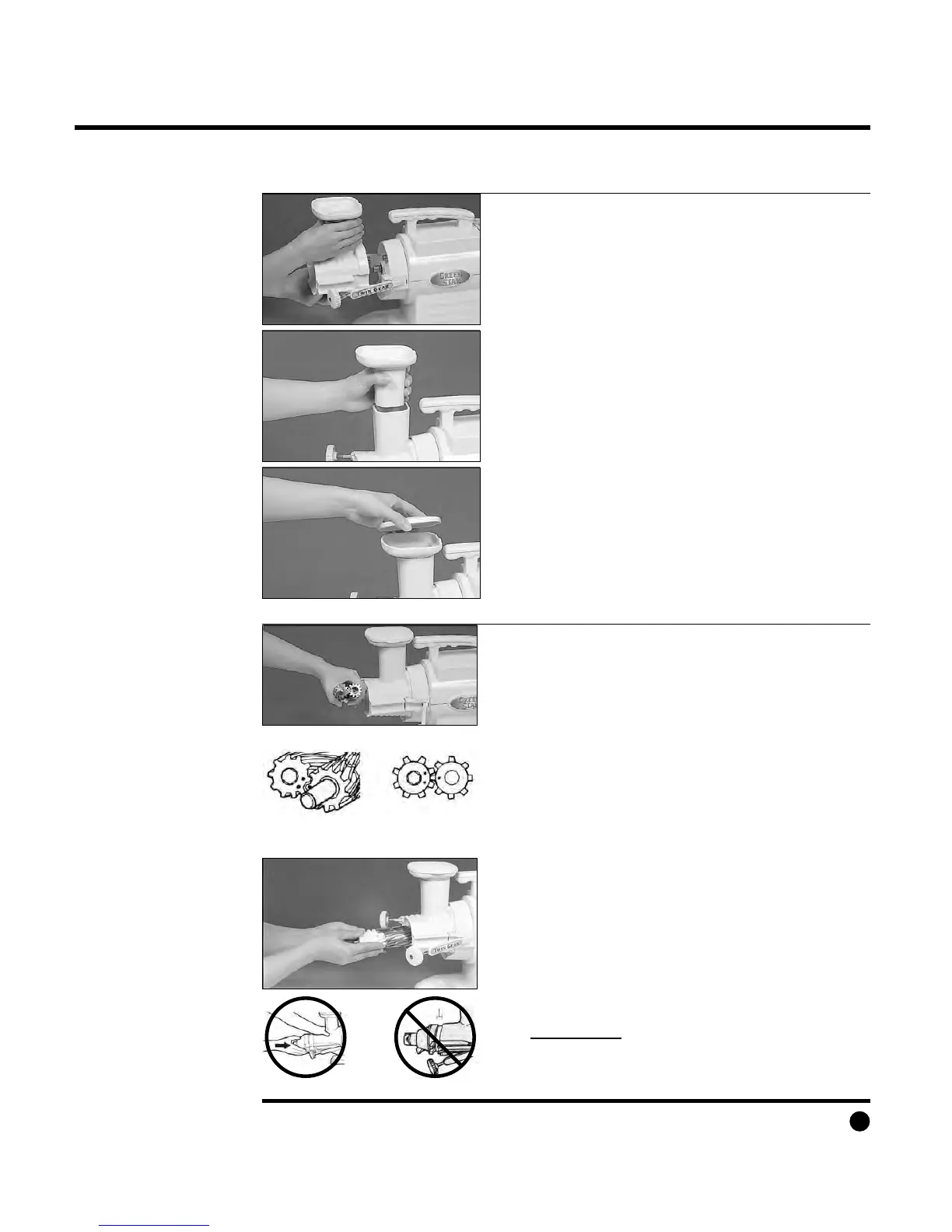

1. Slide the Twin Gear Housing onto the
main body with the Latching Arm Knobs
loosened and the Latching Arms open.
2. Very Important!
Assemble the Twin Gears as follows:
Find the ‘Locating Dots’ marked on the
end surface of each gear. Position the
single dot on one gear between the two
dots on the other gear. Holding the Twin
Gears in this position, and with the Free
Wheel Gear on the right, slide them into
the Twin Gear Housing. Once the gears
come to a stop, slowly turn the gears and
continue to push in until the gears lock
into position.
Hint :
To check whether the Twin Gears are seated
properly, try to turn the gears with your hands. If you
can turn the gears, they are not seated properly.
Also, look down the feeding chute – if any part of
the drive shaft in front of the drive gear is visible,
the gears are not seated properly. Rotate the gears
while pushing them in until they lock into position.
WARNING! Failure to properly seat the Twin
Gears could result in damage to the Gears and the
Drive Shaft, which may not be covered under the
warranty.
Note : Before putting your machine away for future
use, cover the Feeding Chute with its protective lid
once it has been cleaned and dried. Simply place
the Feeding Chute Lid on top of the Feeding Chute,
with the two “ears” pointing to the sides of the juicer
and the oval end of the lid toward the front of the
machine. Gently push it down into position. Remove
lid before using the juicer.
Insert the Feeding Chute into the Twin
Gear Housing “neck”, with the small
rectangular tab toward the rear of the
machine.
Drive Gear
↘
Position the 1 dot between the 2 dots and insert
them into the twin gear housing.
Free Gear
↙
↑
Drive Gear
Gap
↑
Free Gear
×
To Next Page
