High Volume, Low Speed Ceiling Fans 5
®
Verify that all of the following parts and hardware
have been received prior to beginning installation.
Contact your local representative or the manufacturer if
replacement parts are required.
NOTE: Additional parts (provided by others) may be
required to complete the fan installation, including
additional wiring, steel angle or Unistrut
®
channel, and
hardware for connecting the fan mount to the building
structure.
NOTE: Hardware quantities listed below indicate what
is required to complete installation. Hardware kits may
include extra fasteners as a convenience.

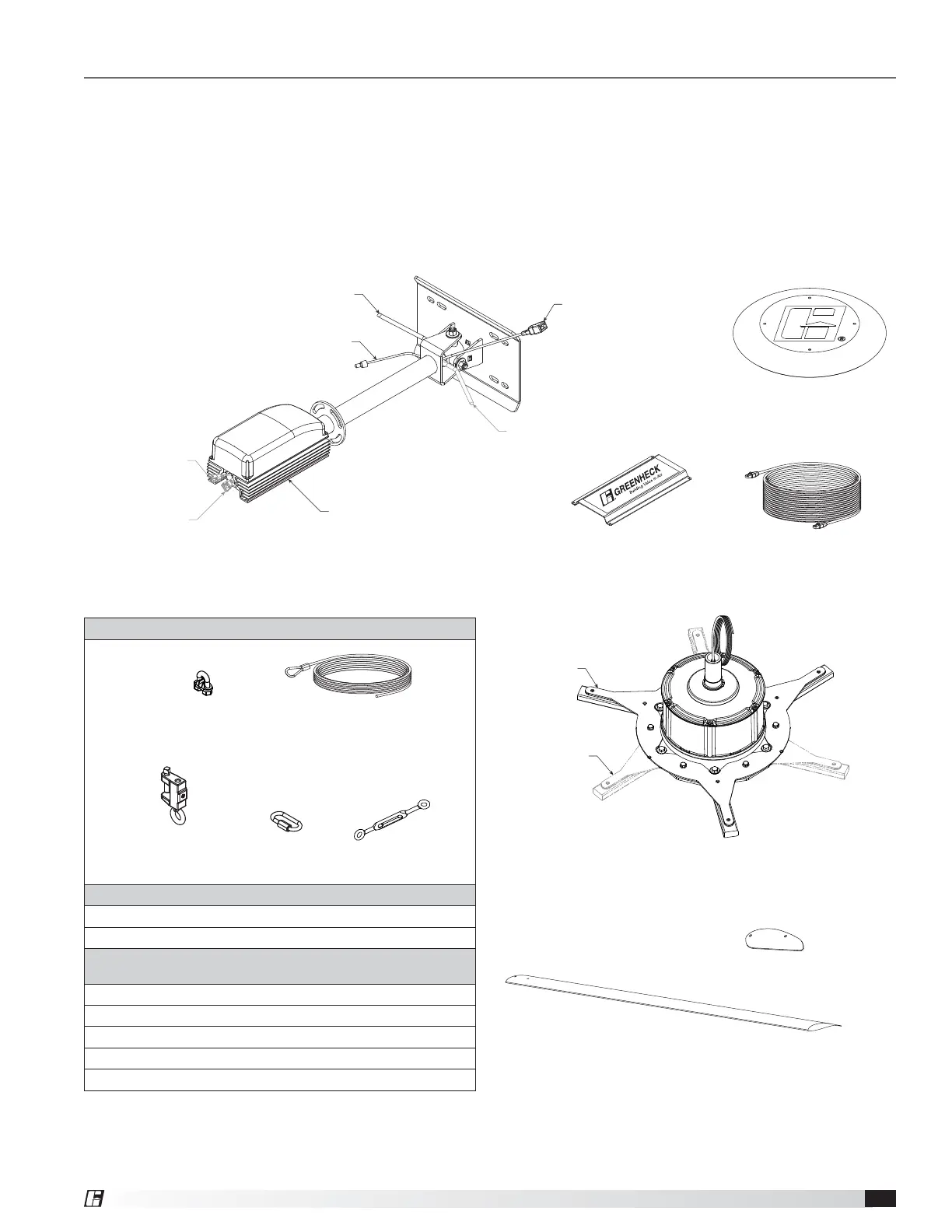

Fan Components
POWER CABLE
LIGHT POWER CABLE
(OPTIONAL)
FACTORY INSTALLED VFD
FIRE ALARM LANDING POINT
COMMUNICATION CABLE
WITH RJ45 SPLITTER
LIGHT POWER PLUG
(OPTIONAL)
LIGHT COMMUNICATION PLUG
(OPTIONAL)
Downtube and Mount Assembly (1)
Airfoil Blade (3 OR 6)
Winglet (3 OR 6)
Rear VFD Cover (1)
CAT-5e Control
Cable (1)
Hub Plate (1)
DS-3
DS-6
Motor/Hub Assembly (1)
Bag # 916290
U-Bolt Steel Cable
Clamps (10)
20 Ft.
Guy Wire (4)
Guy Wire
Clamps (4)
Quick Link (8)
Turnbuckle (4)
Motor/Hub Hardware Kit Bag # 915065
3/8 in. – 16 x 2¾ in. Grade 8, Hex Bolt (2)
M4 – 0.7 x 10 Machine Screw (4)
Airfoil Blade and Hub Plate Hardware Kit
Bag # 915066 OR 854832
5/16 in. Washer (12 OR 24)
5/16 in. – 18 Grade 8, Nylon Locknut (6 OR 12)
5/16 in. – 18 x 2 in. Grade 8, Hex Bolt (6 OR 12)
#10 – 12 x 3/4 in. Screw (6 OR 12)
1/4 in. – 20 x 1 in. Machine Screw (4)
