High Volume, Low Speed Ceiling Fans6
®
Gripple
®
Hardware Kit (Optional) Bag # 915067
No. 4 Gripple
®
(5)
20 Ft. Guy Wire (4)
Quick Link (8) Turnbuckle (4)
I-Beam Hardware Kit (Optional) Bag # 915428
I-Beam Clamping
Plate (2)
I-Beam Clamping
Plate Shim (2)
1/2 in. Washer (8)
1/2 in. – 13 Grade 8, Nylon Locknut (4)
1/2 in. – 13 x 2½ in. Grade 8, Hex Bolt (4)
Steel Truss Hardware Kit (Optional) Bag # 915429
Square Washer Plate (4)
1/2 in. Washer (16)
1/2 in. – 13 Grade 8, Nylon Locknut (8)
1/2 in. – 13 x 1½ in. Grade 8, Hex Bolt (4)
Wood Beam Hardware Kit (Optional) Bag # 915429
Wood Beam Bracket (2)
1/2 in. – 13 x 1½ in. Grade 8, Hex Bolt (4)
1/2 in. – 13 Grade 8, Nylon Locknut (8)
1/2 in. Washer (16)
Z-Purlin Hardware Kit (Optional) Bag # 915431
Z-Purlin Backing
Plate (2)
Z-Purlin Mounting
Bracket (2)
1/2 in. – 13 x 1¾ in. Grade 8, Hex Bolt (20)
1/2 in. – 13 Grade 8, Nylon Locknut (20)
1/2 in. Washer (40)
LED Light Hardware Kit (Optional) Bag # 915436
LED Light Assembly (1)
LED Light Mounting
Bracket (1)
Hub Covering Plate (1)
1/4 in. – 20 x 3/4 in. Grade 5 Hex Bolt (6)
M10 – 1.5 x 20 in. Grade 8.8 Hex Bolt (1)
3/8 in. Washer (1)

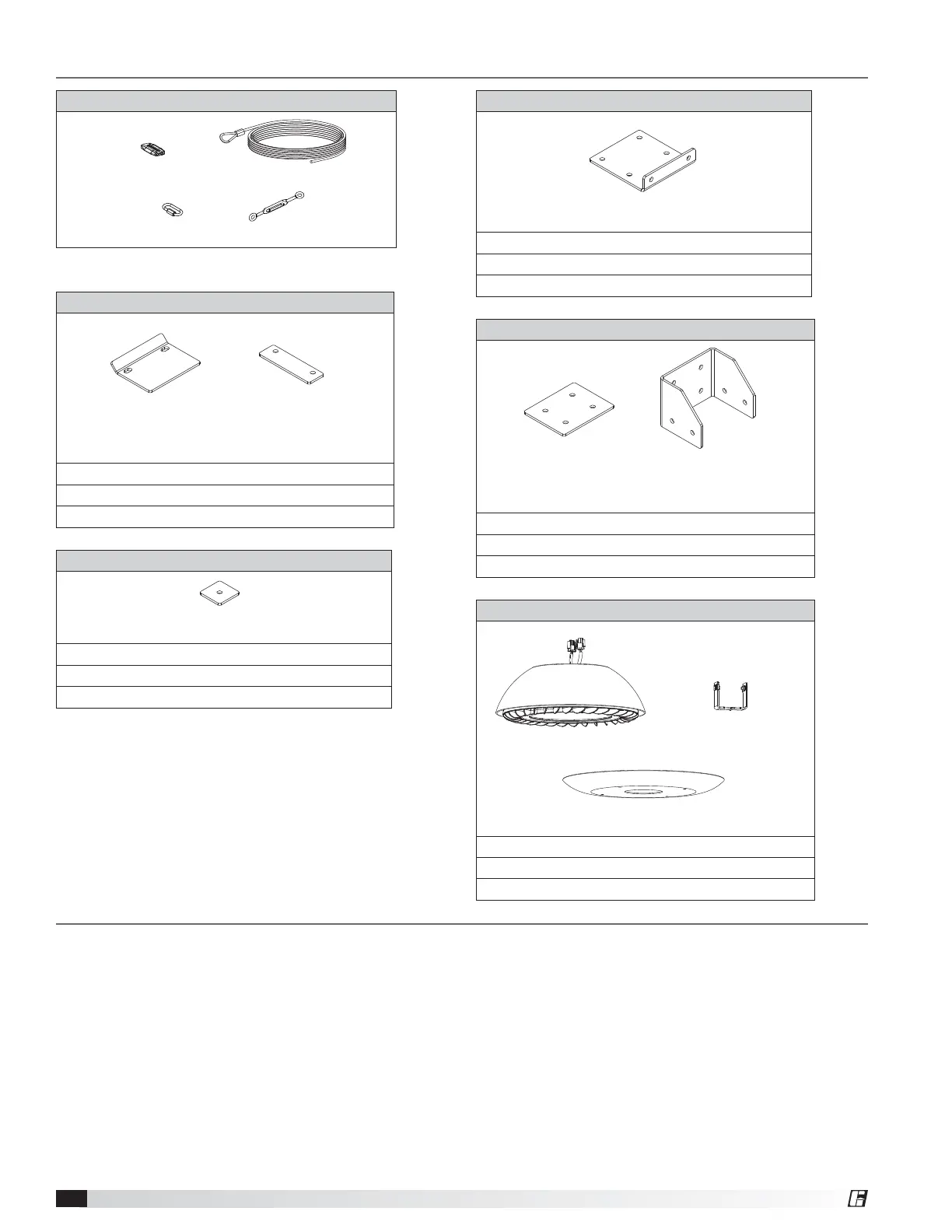

Optional Fan Components
The following tools will be required to complete the
installation of every DS fan. Additional tools may be
required depending on the application and installation
location of the fan.
• Socket Wrench with 7/16 in., 1/2 in., 9/16 in.,
3/4 in. and 17mm Sockets
• 7/16 in., 1/2 in., 9/16 in. and 3/4 in. Wrenches
• Adjustable Wrench
• Torque Wrench (up to 50 ft∙lbf)
• Torque Wrench (up to 120 in∙lbf)
• Drill and 9/16 in. Drill Bit
• Phillips Screwdriver
• Level
• Impact Driver
• #2 Phillips Bit and Driver
• 3/8 in. Magnetic Nut Driver
• Magnetic Nut Driver Extension
NOTE: Model DS fan components can weigh 90 lbs. or
greater depending upon the fan size and accessories
that are provided. A suitable means for lifting the weight
of the fan to the mounting point, such as a scissor lift,
should be used for all DS fan installations.
Required Tools
