Microprocessor Controller for DOAS30
®

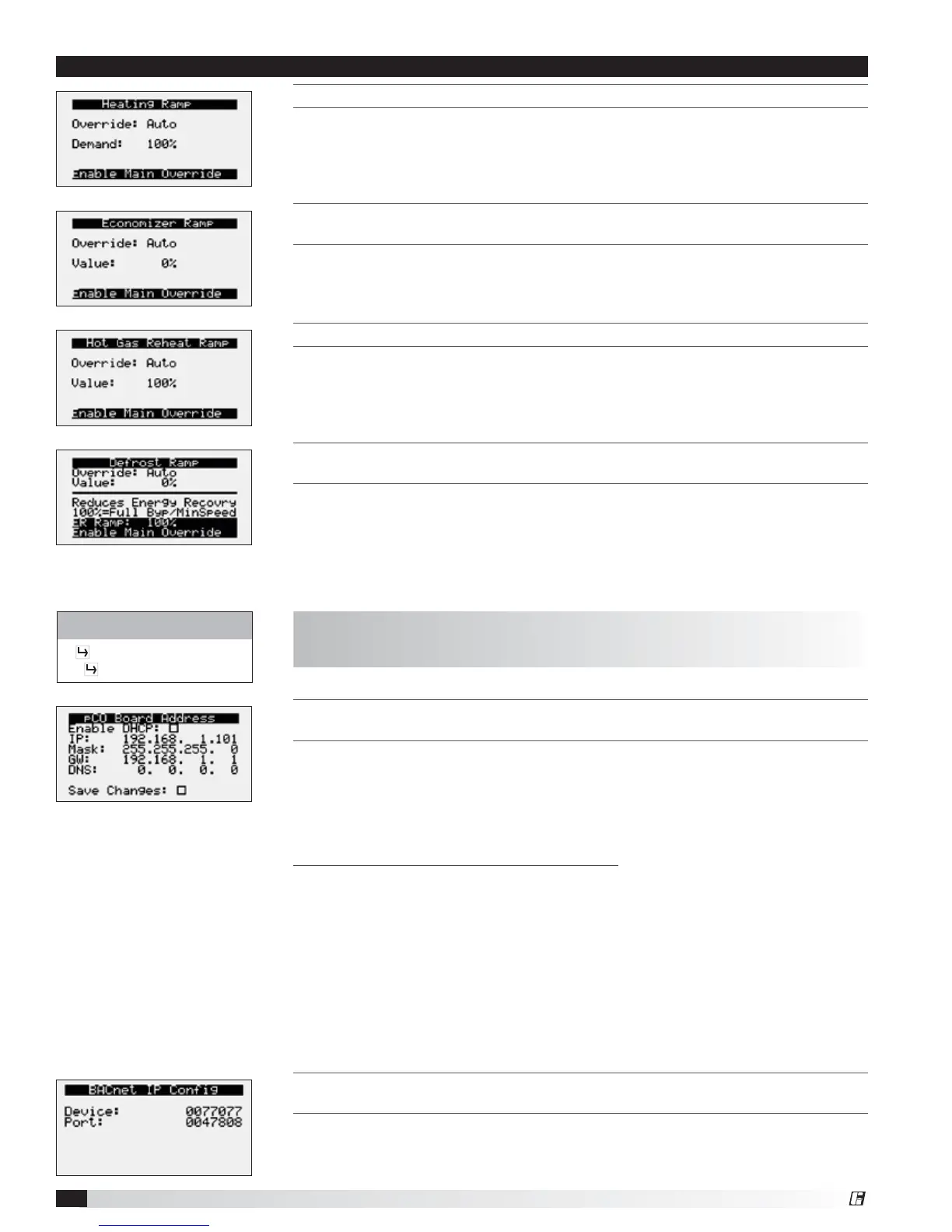

THIS SCREEN ALLOWS THE USER TO VIEW AND ADJUST CONTROLLER TCP/IP
SETTINGS.
This screen will appear with or without a network protocol provided with the unit.
This screen allows the user to configure the IP setting for BMS and/or when
the Web User Interface will be utilized. The controller may have a DHCP server-
assigned address or a manually-assigned static IP address. Factory settings are
shown in the screen to the left.
To change pCO Board Address parameters:
1. Power on the controller and allow several minutes to initialize.
2. Go to Network Settings menu and view pCO Board Address screen.
3. Move cursor to desired parameter by pressing the enter button. Press up and
down arrows to adjust the parameter. Press enter to accept adjusted value.
4. Once desired parameters have been entered, enable the ‘Save Settings’ option
and press the enter button.
5. Reboot the controller by cycling power to the unit. Allow several minutes for the
controller to initialize.
6. View pCO Board Address Config. If changed values did not save, contact the
factory.
The Network Settings Menus allows the user to view and modify network
settings. The service password (9998) is required to make changes.
Control Variables
Advanced
Network Settings
THIS SCREEN ALLOWS THE USER TO OVERRIDE THE HEATING OPERATION.
When the heating control is in the manual mode, use the arrow buttons to vary the
heating output.
THIS SCREEN ALLOWS THE USER TO OVERRIDE THE ECONOMIZER CONTROL
OPERATION.
When the heating control is in the manual mode, use the arrow buttons to vary the
heating output.
THIS SCREEN ALLOWS THE USER TO OVERRIDE THE HOT GAS REHEAT OPERATION.
This screen only appears if modulating hot gas reheat option was provided with
the unit. When the hot gas reheat loop control is in the manual mode, use the
arrow buttons to vary the reheat output.
THIS SCREEN ALLOWS THE USER TO OVERRIDE THE ENERGY RECOVERY DEFROST
OPERATION.
This screen only appears if modulating wheel frost control is equipped. When the
defrost control ramp is in manual mode, use the arrow buttons to vary the defrost
output.
0% = Maximum Wheel Speed
100% = Minimum Wheel Speed
Menu
THIS SCREEN ALLOWS THE USER TO VIEW AND ADJUST CONTROLLER BACNET IP
CONFIG SETTINGS.
This screen will appear if the unit is set for BACnet IP and allows the user to set
the device and port settings.
