Greenlee / A Textron Company 12 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
881 and 881CT Cam Track
®
Hydraulic Benders
Assembly and Operation Instructions

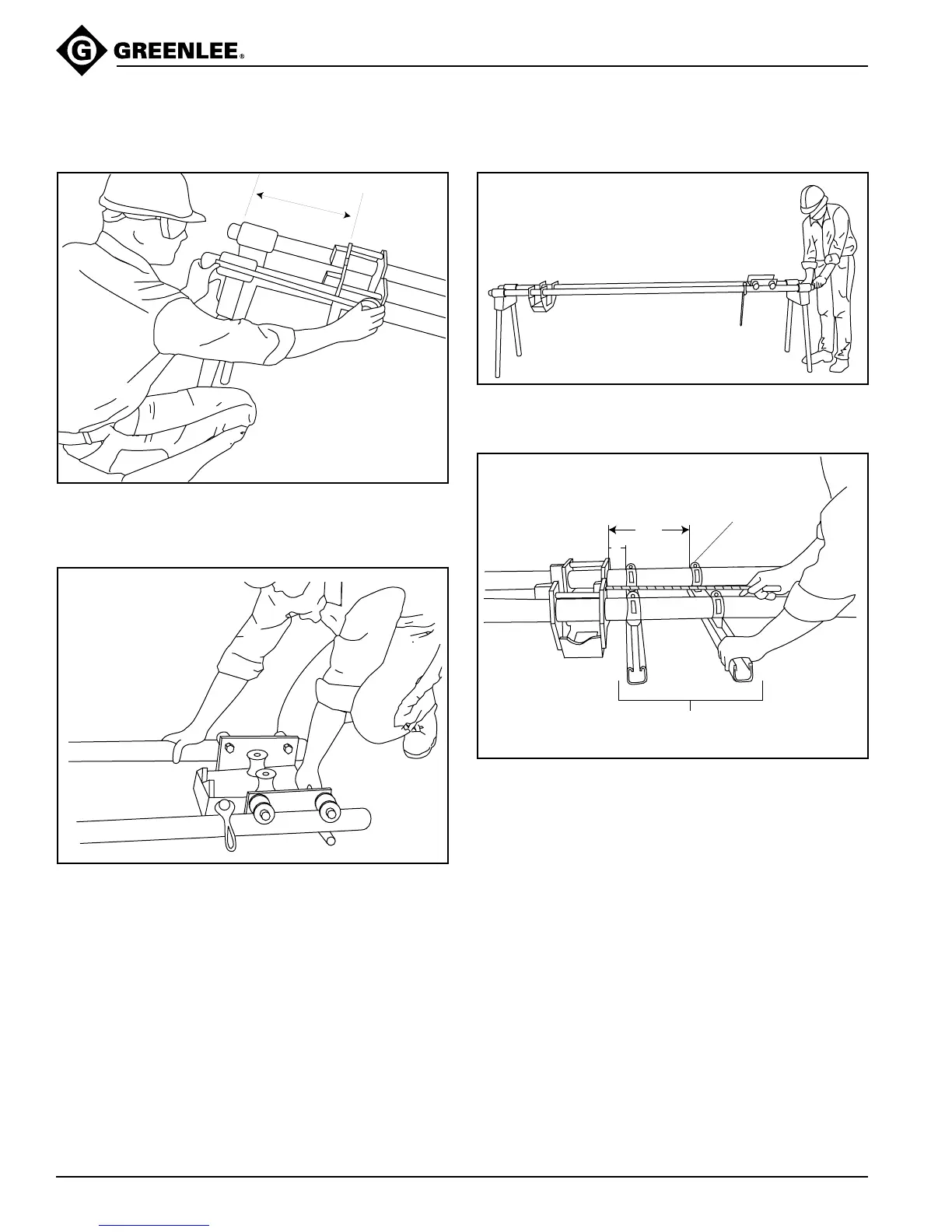

881 and 881CT with 1813 Bending Table (cont’d)
8. Slide the pipe vise unit (38) onto the two 10-foot
conduits, as shown.
15"
7. Position the bender mounting unit 15" from the
leg support unit. Tighten the two bender mounting
unit screws (28).
10. Hang the two pipe clamps (34) over each of the
10-foot conduits. Set the pipe clamps 5" and 12"
from the bender mounting unit. Mount the pump
supports (26) onto the clamps. Do not tighten
the clamps.
9. Attach the second leg support unit (23) to the
10-foot conduits. Tighten the four screws (24).
PIPE CLAMP
5"
PUMP SUPPORT
UNIT
12"
To Next Page
