881 and 881CT Cam Track
®
Hydraulic Benders
Assembly and Operation Instructions
881 and 881CT with 1813 Bending Table (cont’d)

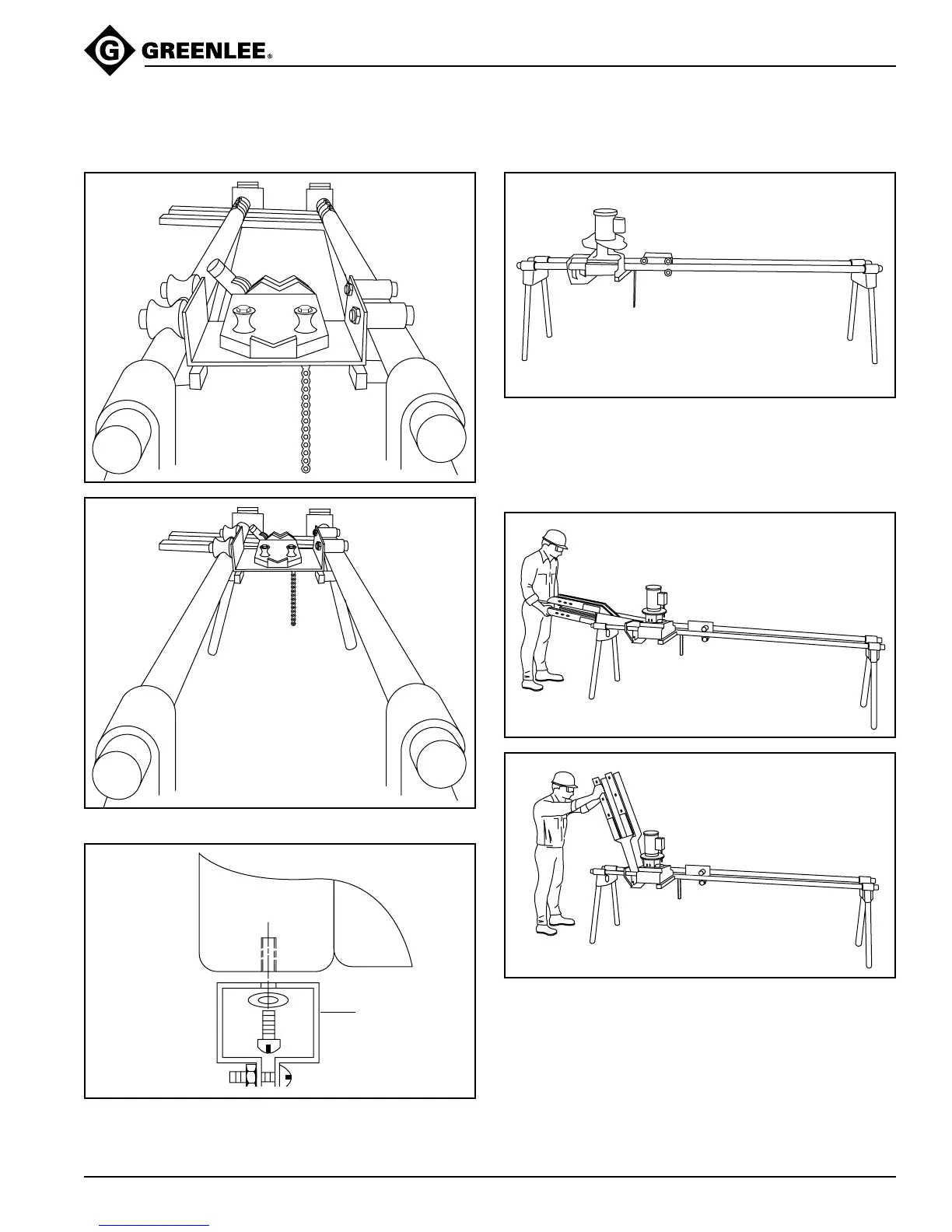

11 and 12. Level the table at both ends.
PUMP
RESERVOIR
PUMP
BRACKET
13. Remove the rubber feet/casters from the pump.
Attach the pump bracket (64) to the pump with the
pump bracket mounting hardware (40-43). See
illustration.
14. Slide the pump onto the pump supports. Tighten the
screws on the lower sides of the pump brackets to
secure the pump. Verify that the pump supports are
5" and 12" from the bender mounting unit. Tighten
the pipe clamp screws.
15 and 16. Load the connecting bar and roller unit
into the bender mounting unit.
