881 and 881CT Cam Track
®
Hydraulic Benders
Assembly and Operation Instructions
881 and 881CT with 1813 Bending Table (cont’d)

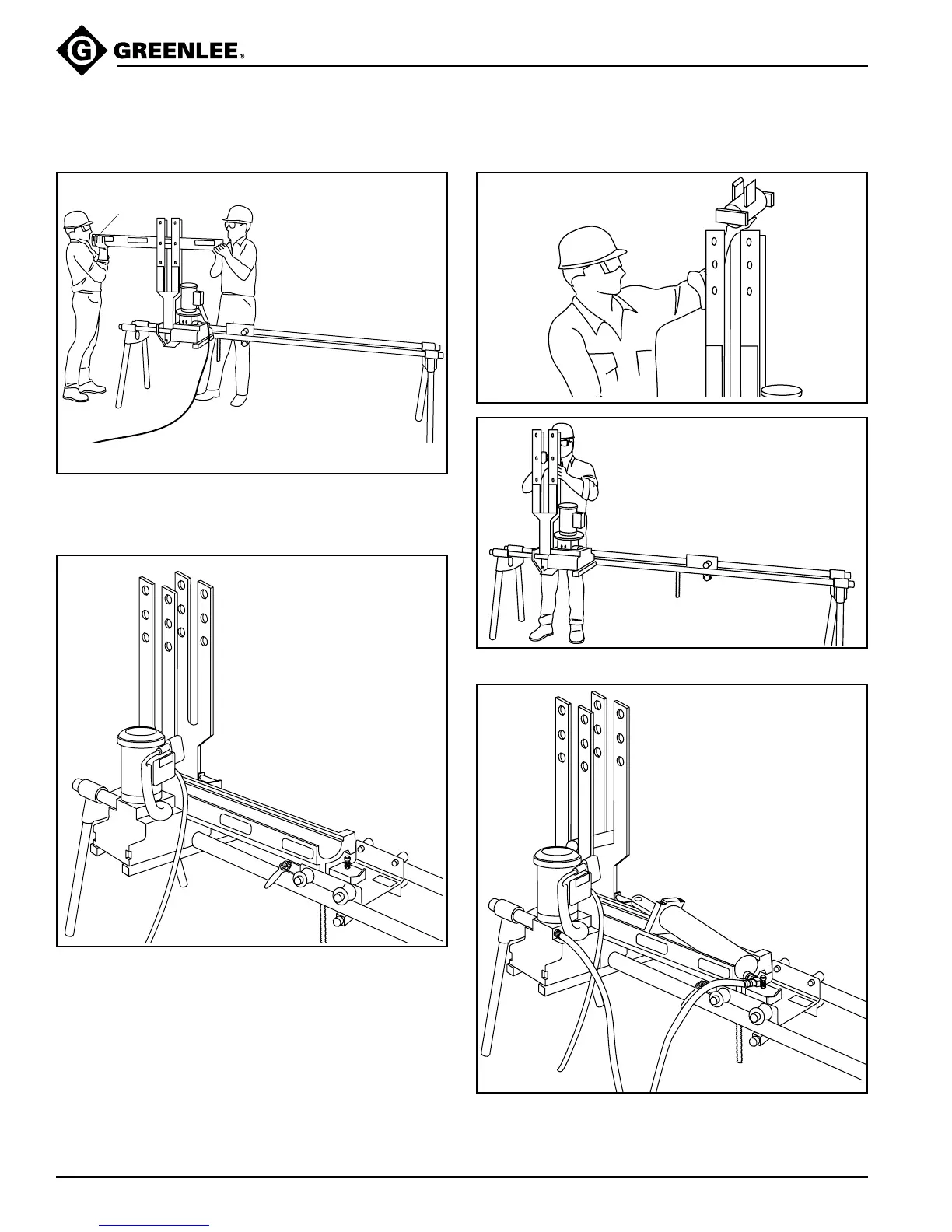

17. Insert the follow bar into the bender with the end
marked START, as shown.
18. Support the rear of the follow bar on the pipe
vise unit.
19 and 20. Insert the ram positioner (33).
21. Attach the hydraulic fitting unit (29) to the ram, and
connect the hose to the fitting unit. Set the cylinder
and yoke unit on the follow bar. Rotate the pump
control lever counterclockwise.
START
To Next Page
