881 and 881CT Cam Track
®
Hydraulic Benders

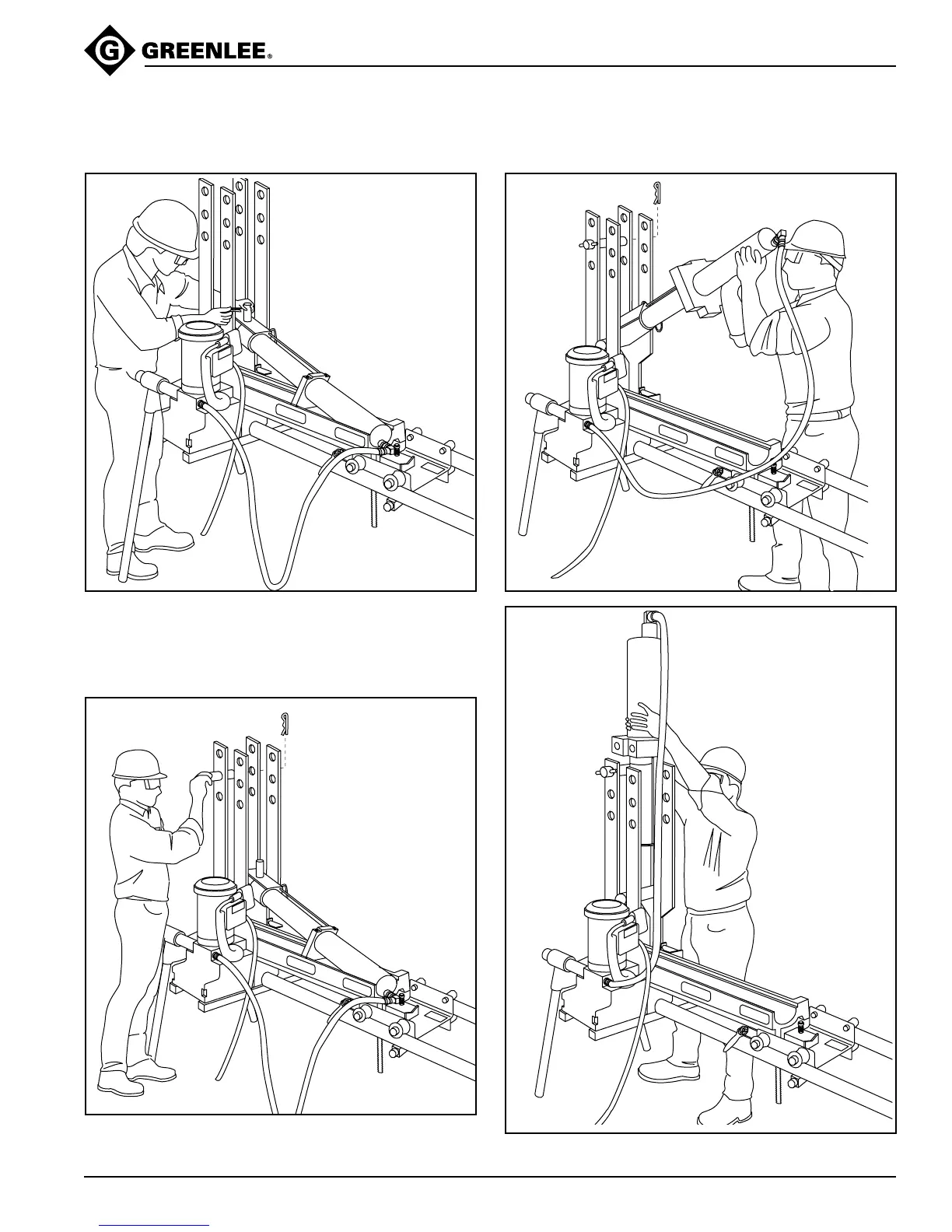

24 and 25. Swing the ram unit into position.
23. Insert one cylinder block pin (F) into the hole marked
3" CONDUIT as shown.
Assembly and Operation Instructions
881 and 881CT with 1813 Bending Table (cont’d)
22. Activate the hydraulic pump to extend the ram
approximately 14 inches. DO NOT OVER EXTEND.
Attach the yoke to the ram positioner with the yoke
pin (G). Secure the yoke pin with a hitch pin clip (E).
To Next Page
