853 Quad Bender™
Deduct Table
Scale Reading Table
SIZE 1 1-1/4 1-1/2 2
STEEL RIGID 11-7/8 14-3/8 15-3/8 16-5/8
DEDUCT EMT 11-7/8 14-3/8 15-3/8 16-7/8
IMC 11-7/8 14-3/8 15-3/8 16-5/8
ALUM. RIGID 11-7/8 14-3/8 15-3/8 16-5/8
MINIMUM STUB LENGTH = DEDUCT PLUS 2 INCHES
Figures are approximate
STEEL RIGID EMT
15° 30° 45° 60° 90° 15° 30° 45° 60° 90°
1 17-1/2 32-1/2 48-3/4 63-3/4 95 16-1/4 31-1/4 47-1/2 62-1/2 93-3/4
1-1/4 17-1/2 33-3/4 48-3/4 65 95 18-3/4 33-3/4 48-3/4 65 96-1/4
1-1/2 17-1/2 32-1/2 47-1/2 63-3/4 95 17-1/2 32-1/2 48-3/4 63-3/4 95
2 17-1/2 32-1/2 48-3/4 63-3/4 95 17-1/2 32-1/2 47-1/2 63-3/4 93-3/4
CONDUIT
SIZE
IMC ALUMINUM RIGID
15° 30° 45° 60° 90° 15° 30° 45° 60° 90°
1 20 35 51-1/4 66-1/4 97-1/2 16-1/4 32-1/2 48-3/4 63-3/4 95
1-1/4 21-1/4 36-1/4 52-1/2 67-1/2 98-3/4 18-3/4 33-3/4 50 65 96-1/4
1-1/2 20 35 51-1/4 66-1/4 97-1/2 17-1/2 33-3/4 48-3/4 65 95
2 21-1/4 36-1/4 52-1/2 67-1/2 98-3/4 18-3/4 35 50 66-1/4 96-1/4
Figures are approximate

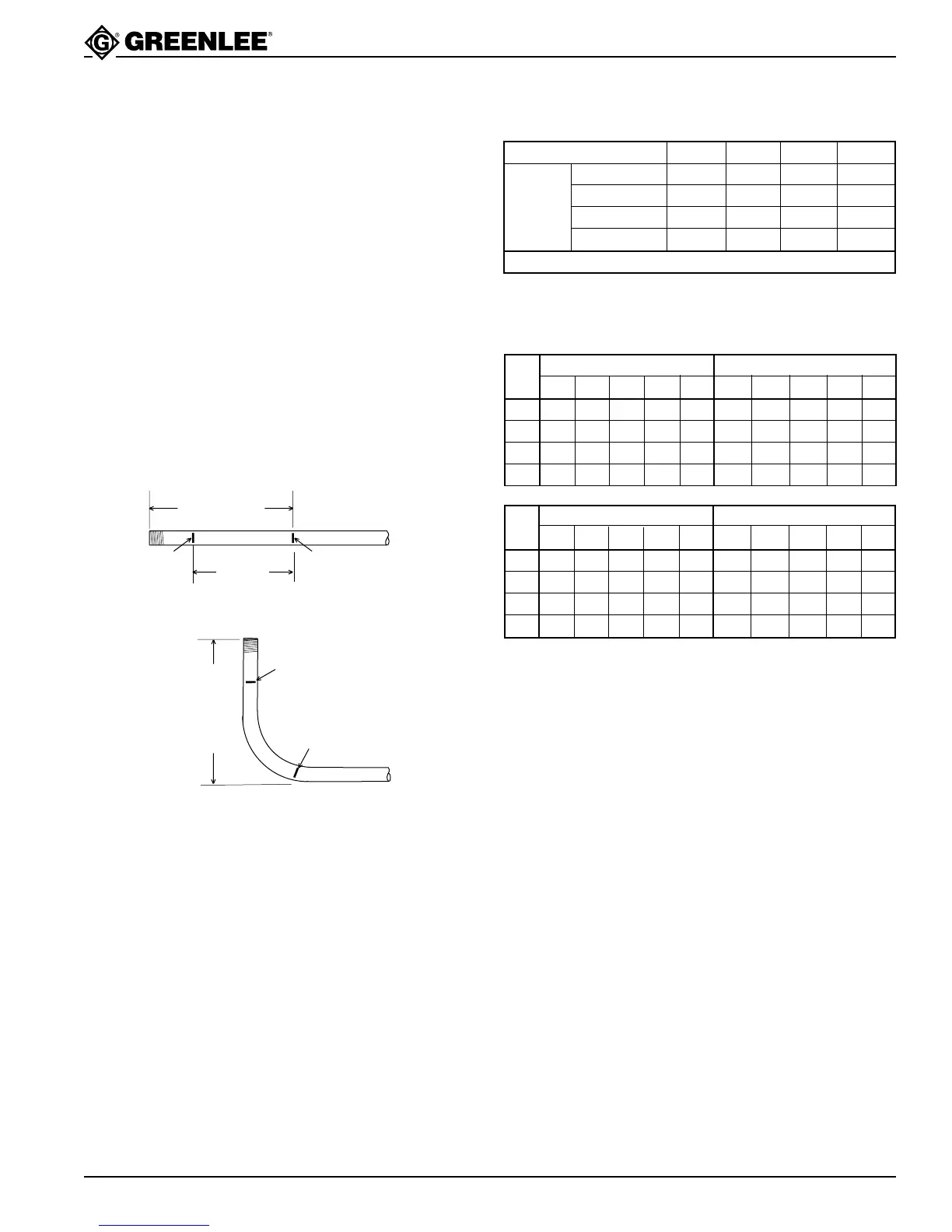

90° STUBS
1. Measure the length of the required stub.
2. See the Minimum Stub Length formula on the
Deduct Table. The required stub must be equal to
or longer than the Minimum Stub Length.
3. Measure and mark the stub length on the conduit.
This is Mark 1. Subtract the Deduct from this mark
and make a new mark. This is Mark 2.
4. Align Mark 2 with the front edge of the hook and
bend the conduit.
Notes: When the operator presses “UNLOAD”, the
conduit may spring back a few degrees.
Compensate by overbending as shown in the
Scale Reading Table.
The shoe bends to 90 ° maximum.
STUB LENGTH
DEDUCT
MARK 2
MARK 2
MARK 1
MARK 1
STUB LENGTH
