Greenlee 853 - Identification and Specifications; Component Identification; Technical Specifications

Greenlee Textron / Subsidiary of Textron Inc.
6
4455 Boeing Dr., Rockford, IL 61109-2988 815/397-7070
853 Quad Bender™
Identification
Height.................................................................................................... 1118 mm (44")
Width .................................................................................................... 775 mm (30.5")
Depth ...................................................................................................... 889 mm (35")
Mass/Weight ........................................................................................ 202 Kg (445 lb)
Power Supply....................................................................................120 VAC, 20 amp
GFCI-protected receptacle
Operating Conditions
Temperature ...................................................... –20 °C to 49 °C (–5 °F to 120 °F)
Relative Humidity ..................................................................................... 0 to 98%
Capacity .................. 1" to 2" EMT, IMC and Rigid Steel and Rigid Aluminum Conduit

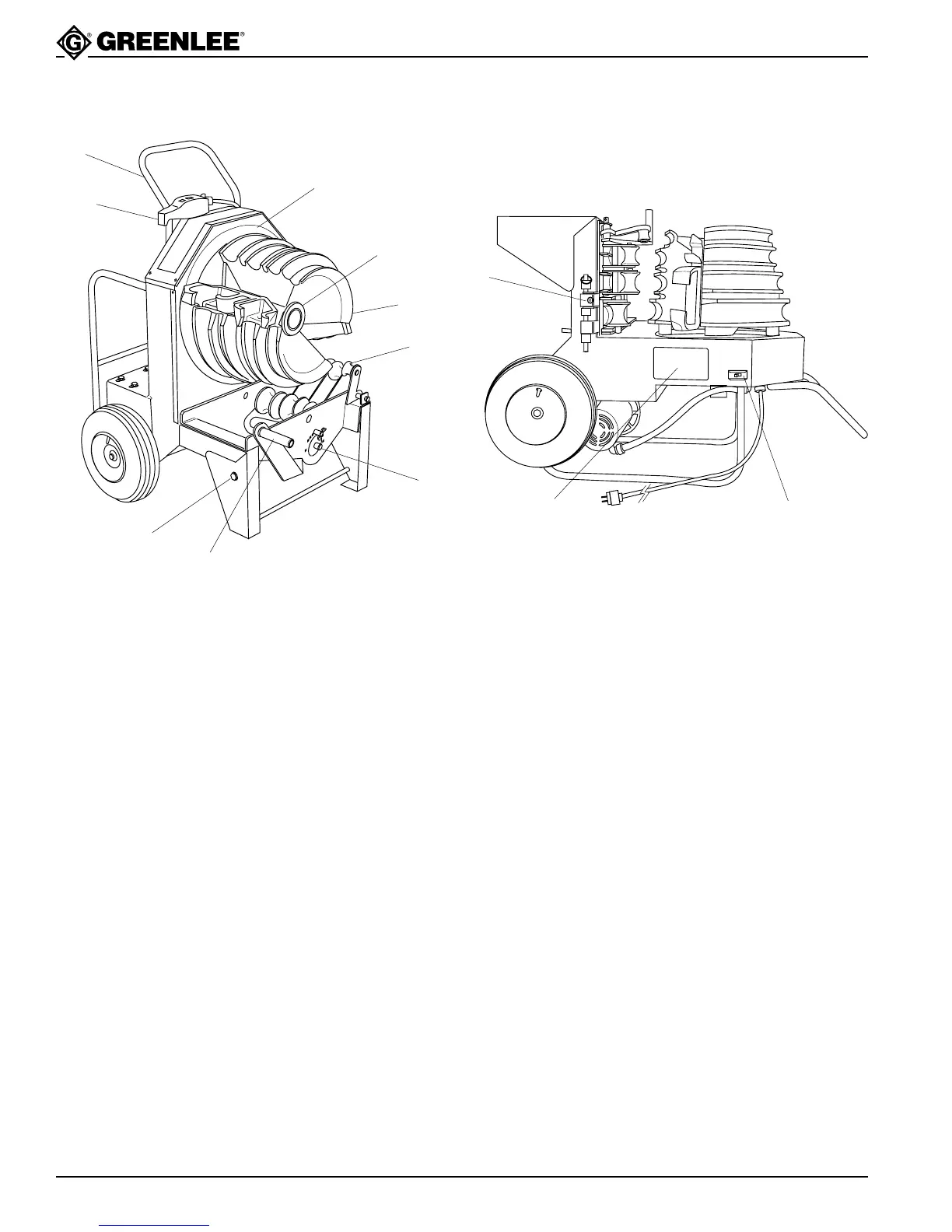

853 Quad Bender™
1. Handle 7. Bending Instructions Decal
2. Pendant 8. Circuit Breaker (ON/OFF switch)
3. Protractor 9. Support Roller Engagement Handle/Pedal
4. Main Shaft 10. Support Roller Squeeze Adjustment
5. Bending Shoe 11. L.H. Locator for Roller Support Assembly
6. 1" to 2" Roller Support 12. R.H. Locator for Roller Support Assembly
Specifications
7
12
8
1
2
3
9
10
11
4
5
6
