853 Quad Bender™

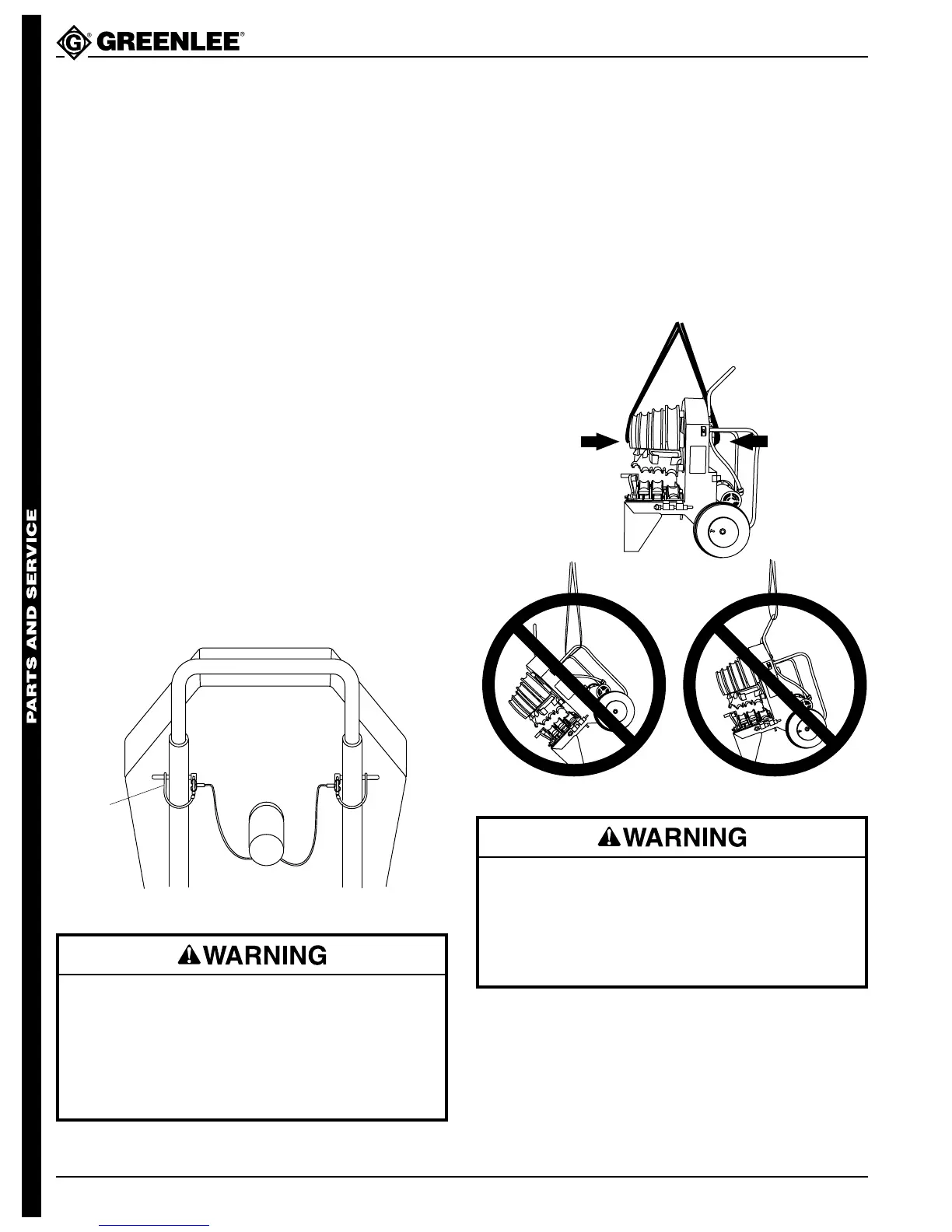

Handle Removal and Replacement
The handle of the 853 is removable. This feature is
convenient when performing complex bending, and
makes it easy to replace a damaged handle.
Removal
1. Place the bender in the upright position.
2. Release the spring clip on the safety snap pin.
3. Remove the pin from the handle and the sleeve of
the frame.
4. Repeat for the other end of the handle.
5. Lift the handle to remove.
Replacement
1. Insert the handle into the sleeves of the frame.
2. Align the holes in the handle with the holes in the
sleeves.
3. Insert the safety snap pin. Ensure that the pin goes
through the handle and the sleeve on the frame.
4. Engage the safety spring clip over the end of the
pin. Ensure that the loop on the clip is completely
around the pin.
5. Repeat for the other end of the handle.
Transporting the Bender
Make sure that all components used to lift this bender
are properly rated for the 202 kg (445 lb) weight. Use
a ramp to load and unload the bender from a truck or
other vehicle that is not equipped with a lift gate.
To lift the bender, loop a nylon or polyester sling
through the spindle. Thread one end of the sling through
the length of the spindle as shown. Securely fasten to
lifting device.
Lifting Bender
Make sure that the handle is properly installed and
secured with the safety spring clips and snap pins
before lifting or moving the bender. An improperly
installed handle could allow the bender to fall,
injuring nearby personnel.
Failure to observe this warning can result in severe
injury or death.
safety
snap
pin
Removing or Replacing Handle
Lift bender using a nylon or polyester sling through
the spindle. Do not attempt to lift bender by the
handles. Make sure all lifting components are
properly rated for the 202 (445 lb) weight.
Failure to observe this warning can result in severe
injury or death.
