GREENLINE 33 - Page 70

Greenline 33 63
It is reccomended that all 24 h consumers are ALWAYS ON to avoid possible system malfunction.
Pay special attention to the automatic bilge pump system.

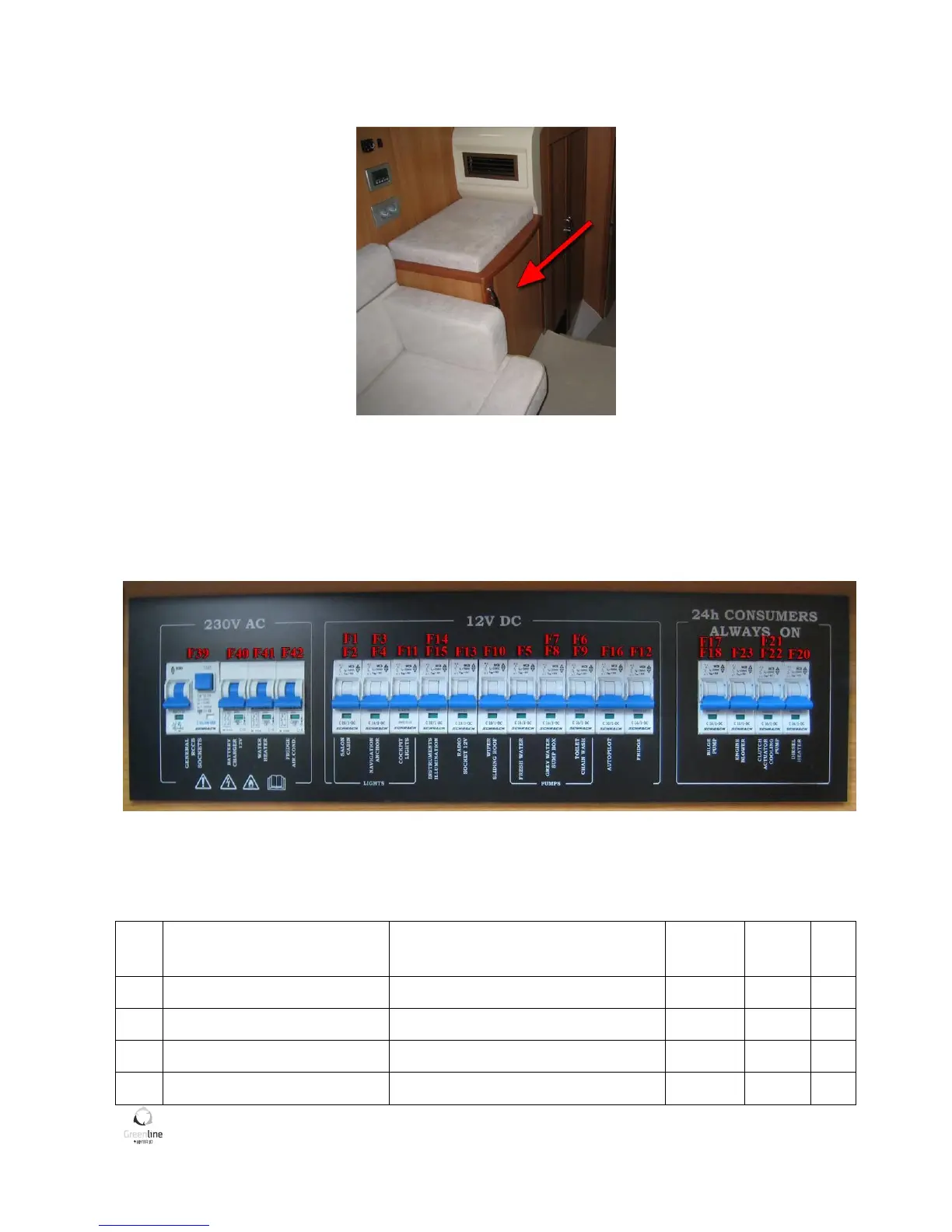

Picture 11: Location of AC/DC panel
AC/DC panel
Picture 12: AC/DC panel
Table 2: Fuses and relays (full option)
#
Fuse
Power supply / wiring path /
description
Voltage
[V]
Rating
[A]
Typ
e
F1
Cabin lights, salon lights
From service bat. via S3 via F32
12
25
CB
F3
Navigation lights, anchor lights
From service bat. via S3 via F32
12
10
CB
F5
Fresh water pump
From service bat. via S3 via F32
12
10
CB
F6
Toilet, chain wash
From service bat. via S3 via F32
12
16
CB
