Greenline 33 71
POWER SOURCES
12V power source:
There is one 12V socket on console for phone chargers, etc. (Pic. 23). For power supply informatoin see table
2, F13.

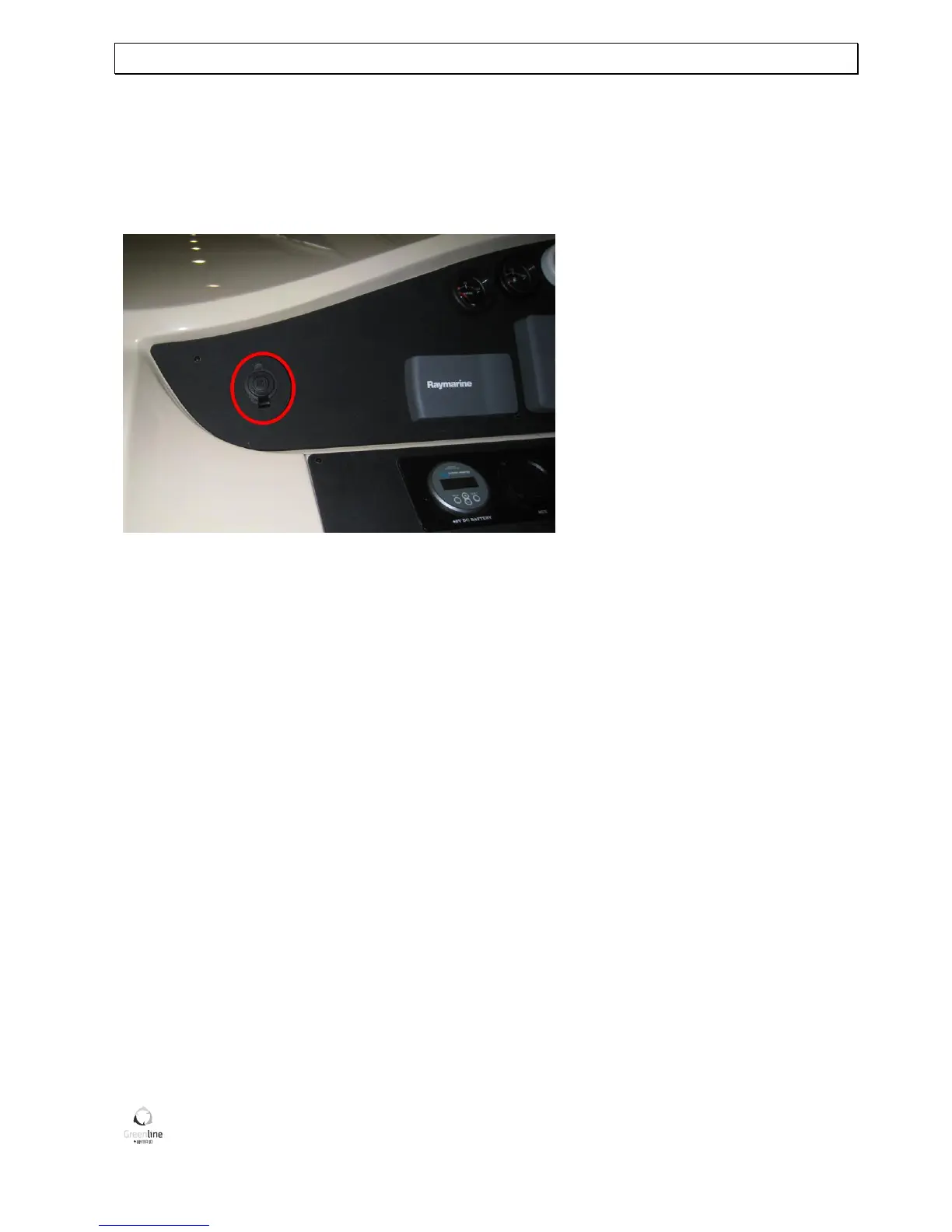

Picture 21: 12V socket on console
230Vac power source:
230V circuit is powered from shore cable through Multiplus inverter/charger (hybrid only) or directly
(standard). When shore cable is not connected Multiplus goes to inverter mode (hybrid only).
There are seven 230V plugs for house consumers. Four in the salon (kitchen and above port locker), two are in
the cabin under bed on port side and one in the toilet. (See Pic. 24-27).
