Grizzly G0454 User Manual

"'"
<%)*($<%)*)JeYViZB[\#H^cXZ-$&'
)(%6
&&.K'
&&,K'
)(%6"&
)(%6"'
)(%6")
)(%6"*
)(%6"+
)(%6",
)(%6"-
)(%6".
)(%6"&%
&''K'
)'.
&')K'
)'."&
)'."'
)'.",
)'."- )'.".
)'."&%
)'.")
)'."*
)'."+

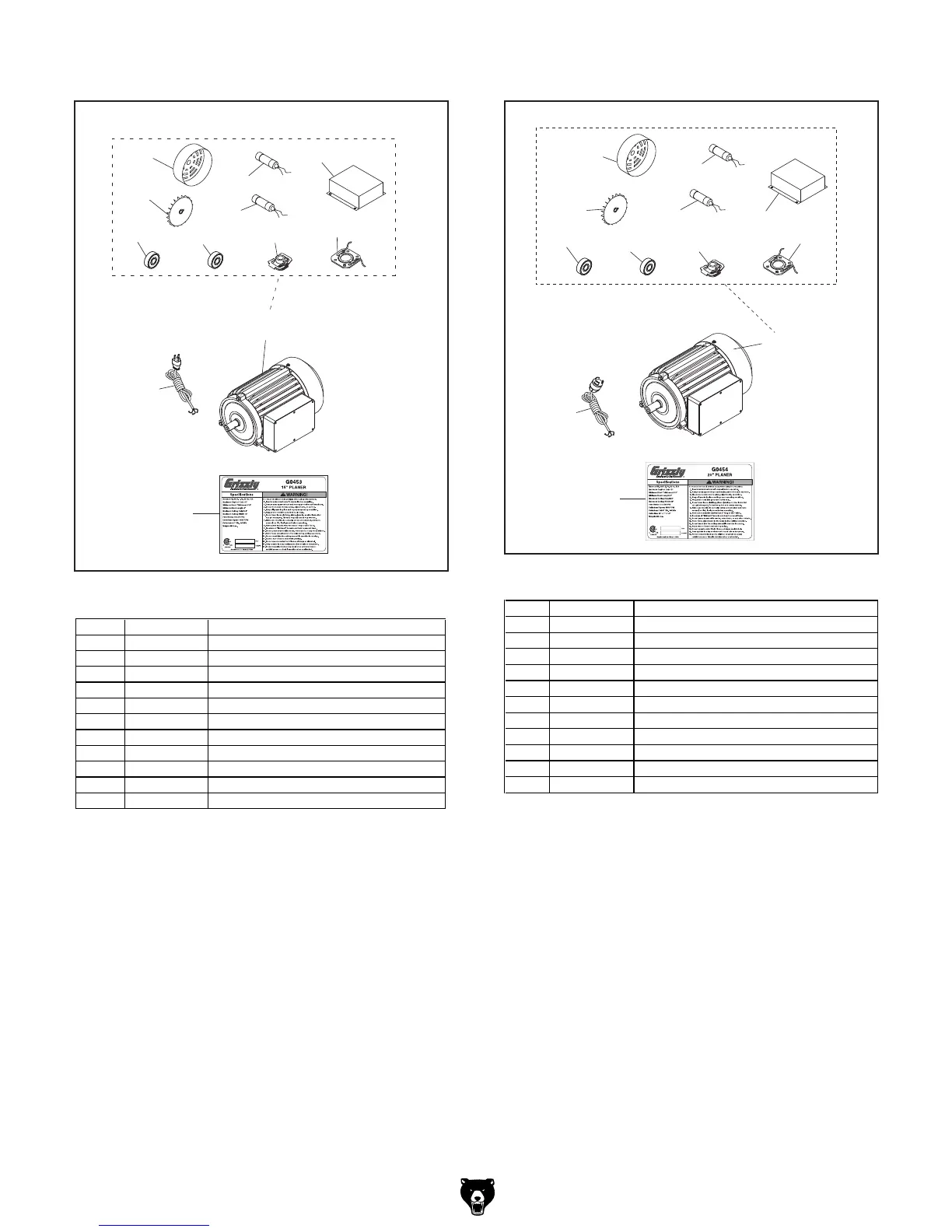

New/Revised G0453 Parts
REF PART # DESCRIPTION
117V2 P0453117V2 MACHINE ID LABEL CSA V2.08.12
119V2 P0453119V2 POWER CORD 12G 3W 72" 6-20P V2.08.12
430A P0453430A MOTOR 3HP 240V 1-PH V2.03.08
430A-1 P0453430A-1 MOTOR FAN COVER V2.03.08
430A-2 P0453430A-2 MOTOR FAN V2.03.08
430A-4 P0453430A-4 R CAPACITOR 20M 400V V2.03.08
430A-5 P0453430A-5 S CAPACITOR 200M 250V V2.03.08
430A-6 P0453430A-6 JUNCTION BOX V2.03.08
430A-7 P6205ZZ BALL BEARING 6205ZZ
430A-8 P6203ZZ BALL BEARING 6203ZZ
430A-9 P0453430A-9 CENTRIFUGAL SWITCH 16MM 3450
430A-10 P0453430A-10 CONTACT PLATE16MM
REF PART # DESCRIPTION
122V2 P0454122V2 MACHINE ID LABEL CSA V2.08.12
124V2 P0454124V2 POWER CORD 12G 3W 72" L6-30P V2.08.12
429 P0454429 MOTOR 5HP 240V 1-PH
429-1 P0454429-1 MOTOR FAN COVER
429-2 P0454429-2 MOTOR FAN
429-4 P0454429-4 S CAPACITOR 300M 250V
429-5 P0454429-5 R CAPACITOR 60M 450V
429-6 P0454429-6 MOTOR WIRING JUNCTION BOX
429-7 P6206ZZ BALL BEARING 6206ZZ
429-8 P6204ZZ BALL BEARING 6204ZZ
429-9 P0454429-9 CENTRIFUGAL SWITCH 19MM 3450
429-10 P0454429-10 CONTACT PLATE 19MM
New/Revised G0454 Parts
