Grizzly G0454 User Manual

-55-
G0453/G0454 (Mfg. Since 3/08)
REF PART # DESCRIPTION REF PART # DESCRIPTION
500A P0453500A GEARBOX ASSEMBLY 522 P0453522 SHAFT
501 P0453501 BALL BEARING 6204ZZ 523 P0453523 GEAR
502 P0453502 EXT RETAINING RING 20MM 524 P0453524 BALL BEARING 6201ZZ
503 P0453503 OIL PLUG 525 P0453525 KEY 5 X 5 X 10
504 P0453504 CAP SCREW M6-1 X 25 526 P0453526 GEAR SHAFT
505 P0453505 GEARBOX BASE 527 P0453527 GEAR
506 P0453506 GASKET 528 P0453528 BALL BEARING 6201ZZ
507 P0453507 PIN 5 X 10 529 P0453529 KEY 5 X 5 X 14
508 P0453508 BALL KNOB M10-1.5 530 P0453530 GEAR SHAFT
509 P0453509 O-RING 15.8 X 2.4 P16 531 P0453531 GEAR
510 P0453510 HANDLE SHAFT 532 P0453532 FLAT WASHER 6MM
511 P0453511 SHIFTING FORK 533 P0453533 PHLP HD SCR M6-1 X 8
512 P0453512 HEX BOLT M8-1.25 X 16 534 P0453534 CAP SCREW M6-1.0 X 20 LH
513 P0453513 FLAT WASHER 8MM 535 P0453535 GEAR 14T
514 P0453514 KEY 5 X 5 X 16 536 P0453536 OIL SEAL 25 X 40 X 10
515 P0453515 SPROCKET 537 P0453537 CAP SCREW M5-.8 X 12
516 P0453516 OIL SEAL 20 X 35 X 7 538 P0453538 FLANGE COVER
517 P0453517 BALL BEARING 6204ZZ 539 P0453539 CAP SCREW M8-1.25 X 50
518 P0453518 BALL BEARING 6201ZZ 540 P0453540 GEARBOX COVER
519 P0453519 STEEL BALL 4MM 541 P0453541 FLANGE BOLT M6-1 X 12
520 P0453520 COMPRESSION SPRING 542 P0453542 CHAIN 06B-1 X 49
521 P0453521 KEY 5 X 5 X 50

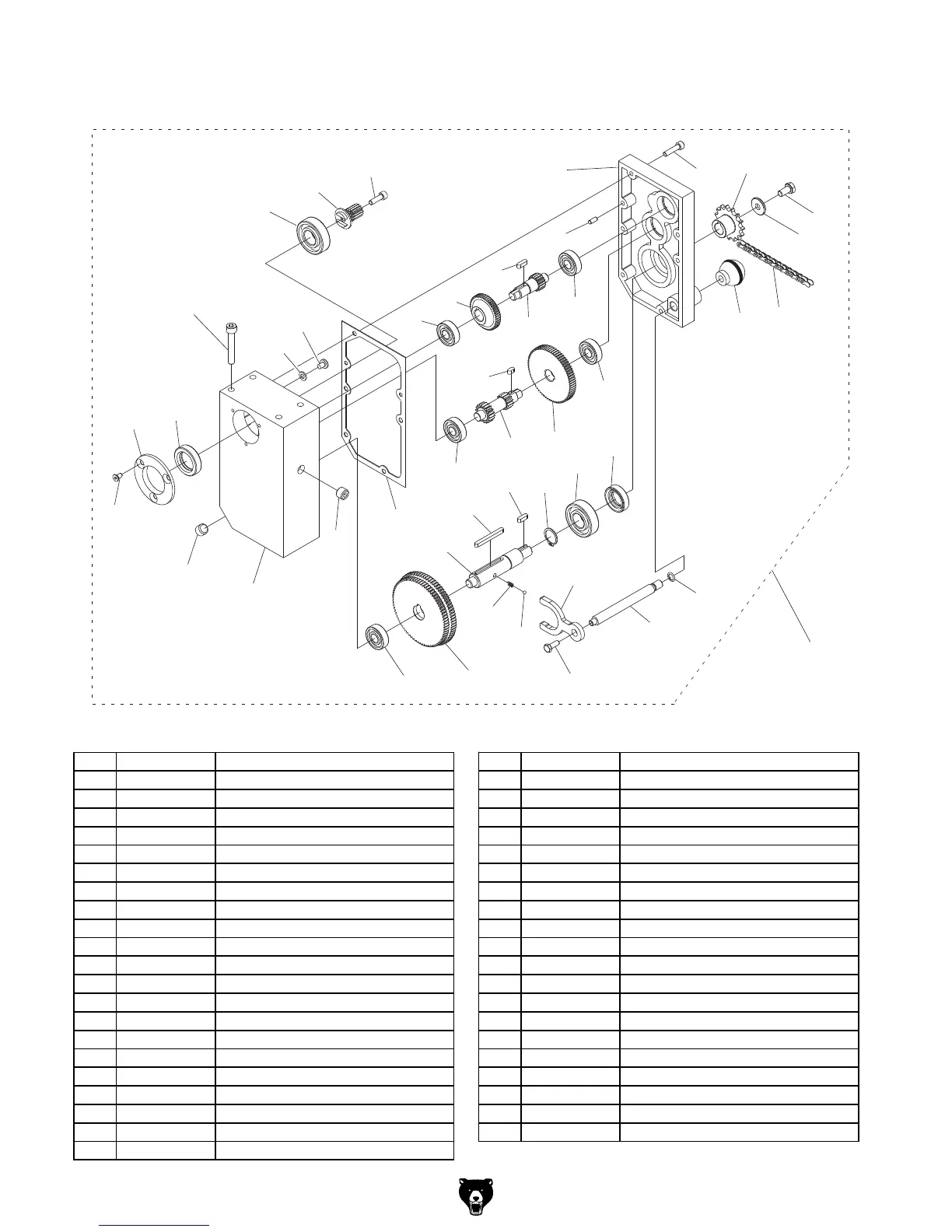

G0453 Gearbox Breakdown
500A
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
503
541
524
528
542

Grizzly G0454 Specifications

General

Brand	Grizzly
Model	G0454
Category	Planer
Language	English
