Grizzly G0454 User Manual

-52-
G0453/G0454 (Mfg. Since 3/08)

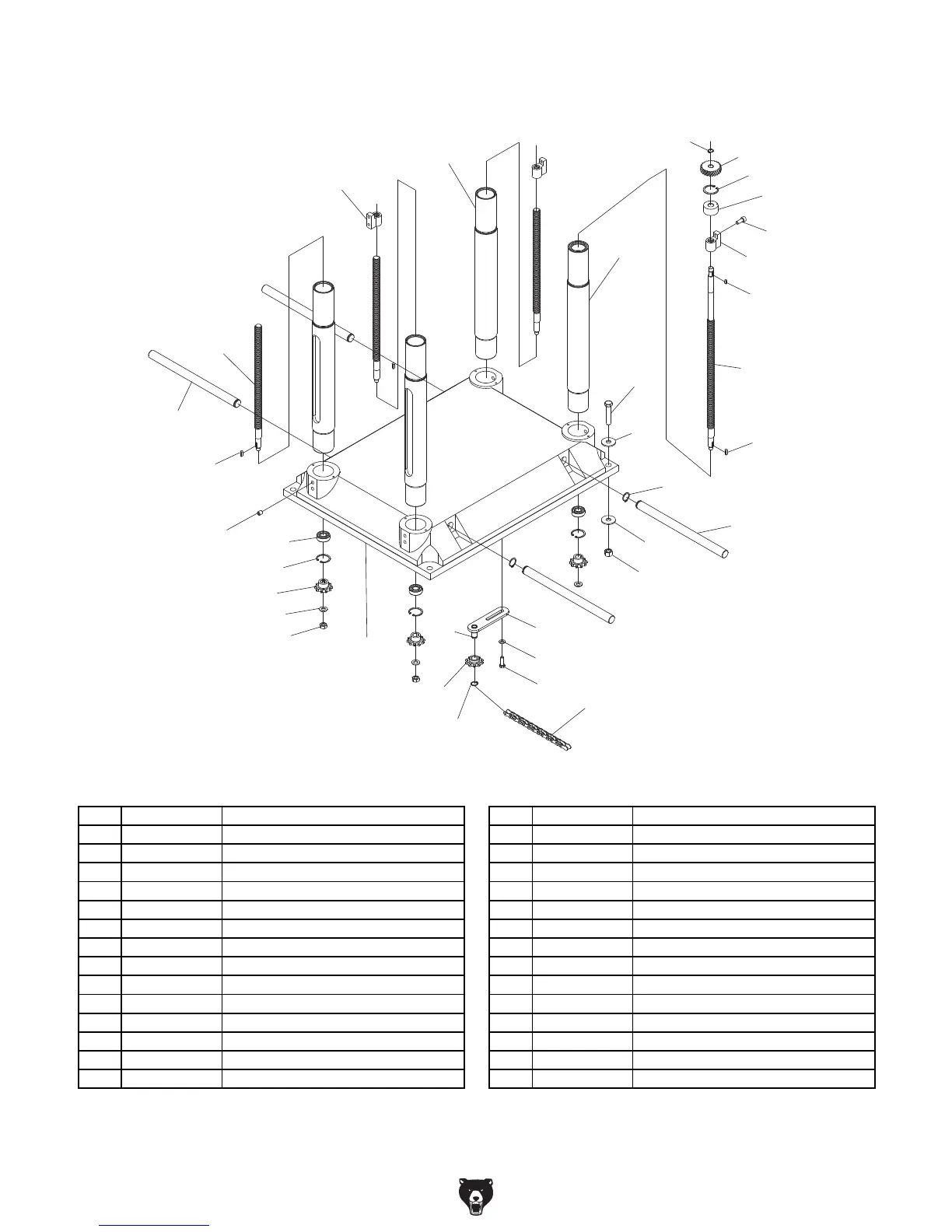

G0453 Columns Breakdown
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
305
314
320
330
REF PART # DESCRIPTION REF PART # DESCRIPTION
303 P0453303 CHAIN 12.7A X 134 319 P0453319 CAP SCREW M6-1 X 20
304 P0453304 EXT RETAINING RING 15MM 320 P0453320 LEADSCREW NUT
305 P0453305 LIFTING BAR 321 P0453321 PRIMARY LEADSCREW
306 P0453306 HEX BOLT M8-1.25 X 20 322 P0453322 SECONDARY LEADSCREW
307 P0453307 FLAT WASHER 8MM 323 P0453323 SET SCREW M10-1.5 X 12
308 P0453308 EXT RETAINING RING 15MM 324 P0453324 INT RETAINING RING 40MM
309 P0453309 SPROCKET 325 P0453325 BUSHING
310A P0453310A SPROCKET BRACKET ASSEMBLY 326 P0453326 PRIMARY COLUMN
312 P0453312 HEX NUT M10-1.5 327 P0453327 INT RETAINING RING 42MM
313 P0453313 FLAT WASHER 10MM 328 P0453328 BALL BEARING 6302ZZ
314 P0453314 KEY 5 X 5 X 16 329 P0453329 SECONDARY COLUMN
315 P0453315 SPROCKET 330 P0453330 FLAT WASHER 12MM
316 P0453316 EXT RETAINING RING 12MM 331 P0453331 HEX NUT M12-1.75
317 P0453317 KEY 4 X 4 X 12 332 P0453332 HEX BOLT M12-1.75 X 45
318 P0453318 GEAR 333 P0453333 BASE
