Grizzly G0454 User Manual

-61-
G0453/G0454 (Mfg. Since 3/08)

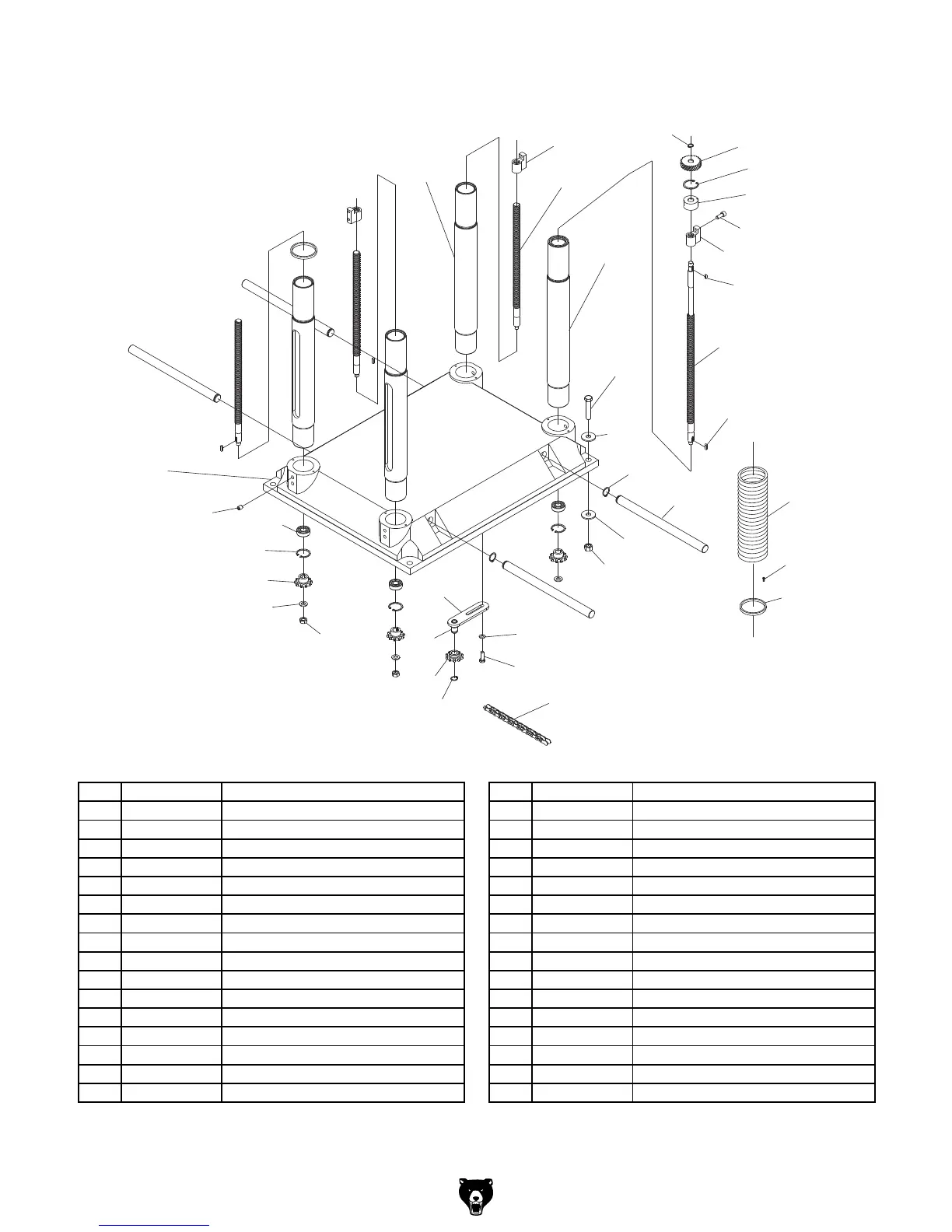

G0454 Columns Breakdown
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
333
324
REF PART # DESCRIPTION REF PART # DESCRIPTION
303 P0454303 CHAIN 08A-1 X 66 320 P0454320 KEY 4 X 4 X 12
304 P0454304 DUST BOOT 321 P0454321 GEAR
305 P0454305 PHLP HD SCR M5-.8 X 10 322 P0454322 BUSHING
306 P0454306 DUST BOOT SEAL 323 P0454323 CAP SCREW M8-1.25 X 20
307 P0454307 EXT RETAINING RING 5MM 324 P0454324 LEADSCREW NUT
308 P0454308 LIFTING BAR 325 P0454325 PRIMARY LEADSCREW
309 P0454309 FLAT WASHER 8MM 326 P0454326 SECONDARY LEADSCREW
310 P0454310 SPROCKET 327 P0454327 SET SCREW M10-1.5 X 12
311 P0454311 HEX BOLT M8-1.25 X 25 328 P0454328 INT RETAINING RING 38MM
312 P0454312 BRACKET 329 P0454329 PRIMARY COLUMN
313 P0454313 EXT RETAINING RING 15MM 330 P0454330 INT RETAINING RING 35MM
314 P0454314 SHAFT 331 P0454331 BALL BEARING 6202ZZ
315 P0454315 HEX NUT M10-1.5 332 P0454332 SECONDARY COLUMN
316 P0454316 FLAT WASHER 10MM 333 P0454333 FLAT WASHER 12MM
317 P0454317 KEY 5 X 5 X 16 334 P0454334 HEX NUT M12-1.75
318 P0454318 SPROCKET 335 P0454335 HEX BOLT M12-1.75 X 60
319 P0454319 EXT RETAINING RING 12MM 336 P0454336 BASE
