-60-
G0453/G0454 (Mfg. Since 3/08)

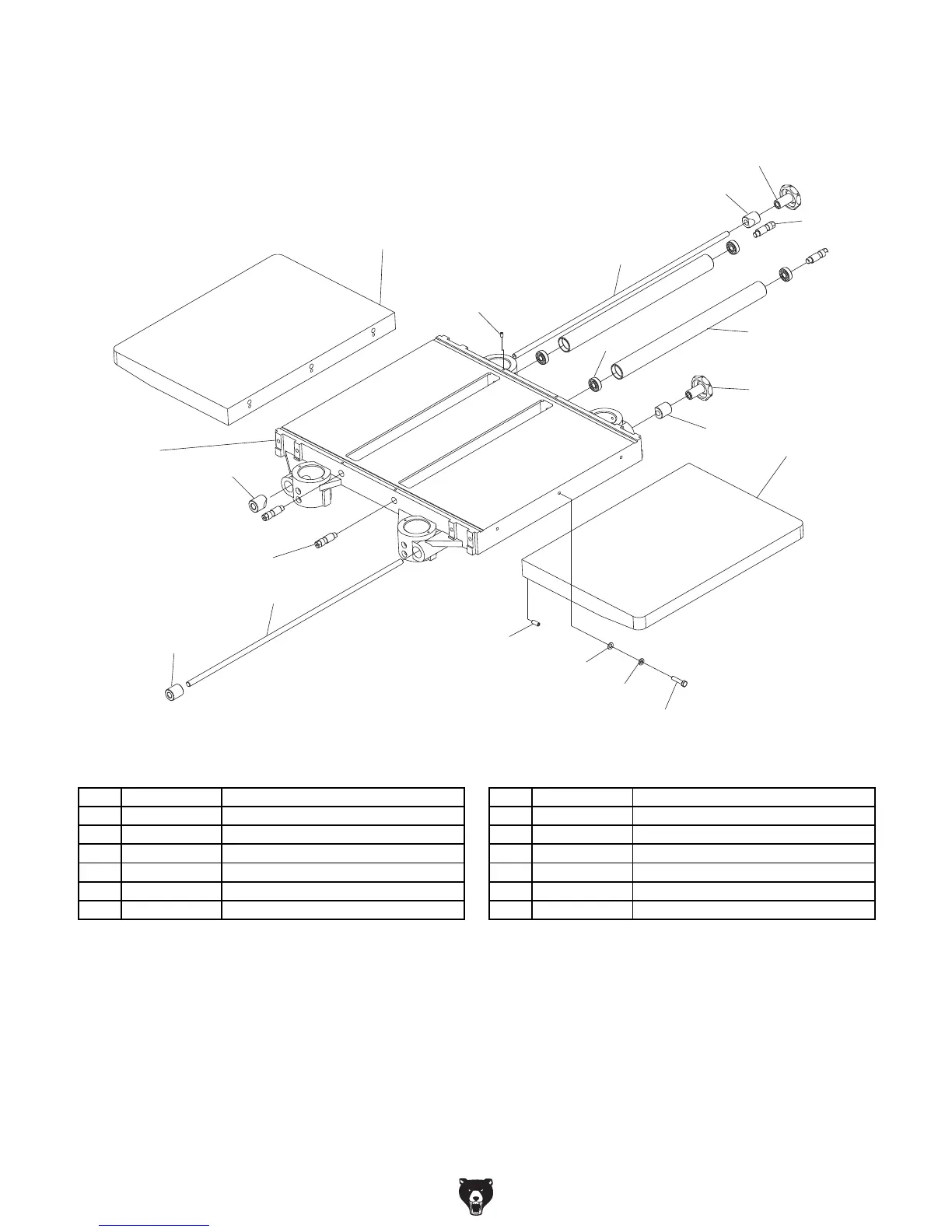

G0454 Table Breakdown
201
202
203
204
205
206
207
208
209
210
211
212
213
204
205
207
214
210
207
206
REF PART # DESCRIPTION REF PART # DESCRIPTION
201 P0454201 HEX BOLT M8-1.25 X 35 208 P0454208 WEDGE DOG
202 P0454202 FLAT WASHER 8MM 209 P0454209 SET SCREW M6-1 X 12
203 P0454203 LOCK WASHER 8MM 210 P0454210 ECCENTRIC SHAFT
204 P0454204 EXTENSION WING 211 P0454211 BALL BEARING 6201ZZ
205 P0454205 STAR KNOB M12-1.75 212 P0454212 BED ROLLER
206 P0454206 LOCK ROD 213 P0454213 MAIN TABLE
207 P0454207 GIB 214 P0454214 SET SCREW M8-1.25 X 20
