-51-
G0453/G0454 (Mfg. Since 3/08)

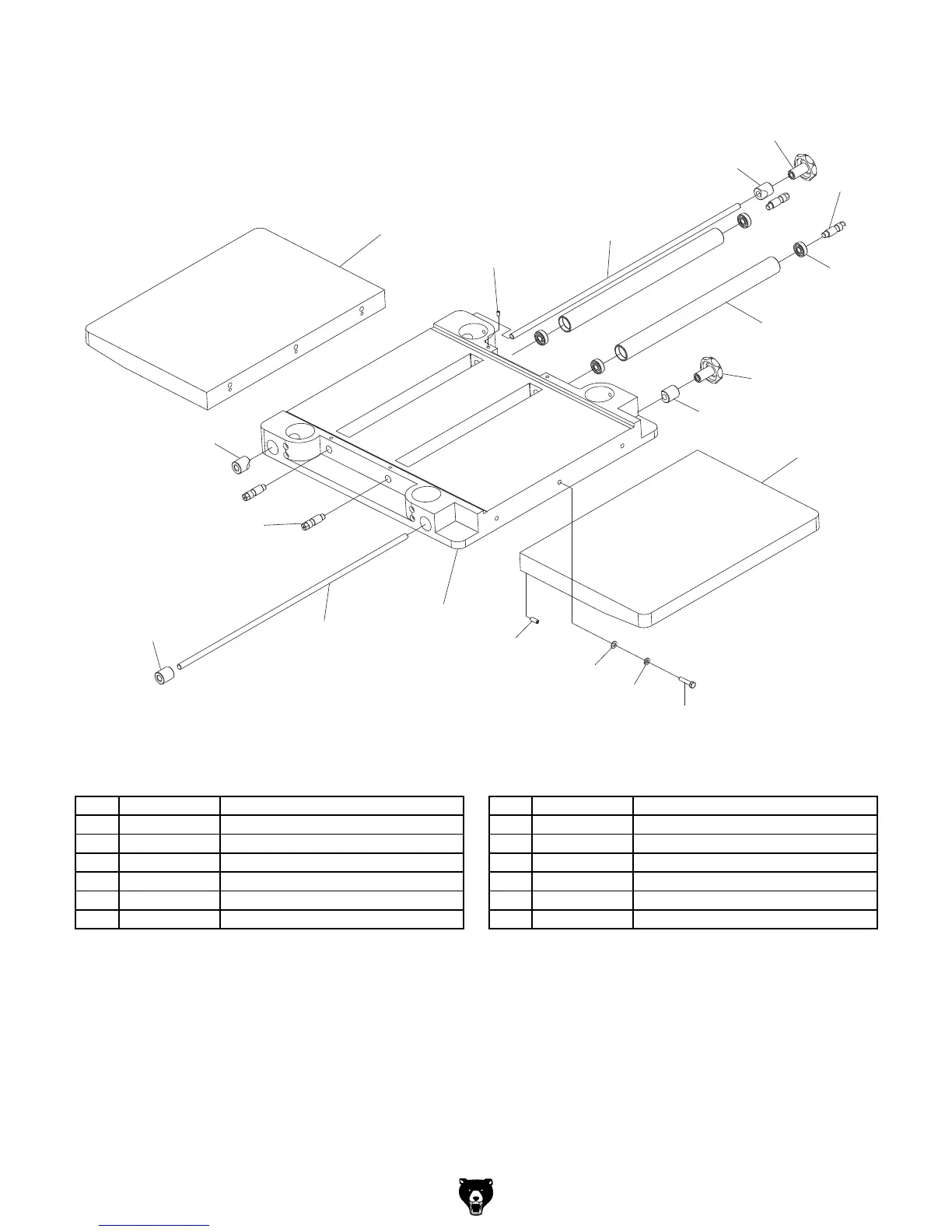

G0453 Table Breakdown
203
204
205
206
207
208
209
210
211
212
213
214
215
216
208
210
209
211
213
207
REF PART # DESCRIPTION REF PART # DESCRIPTION
203 P0453203 SET SCREW M8-1.25 X 20 210 P0453210 GIB
204 P0453204 HEX BOLT M8-1.25 X 30 211 P0453211 WEDGE DOG
205 P0453205 FLAT WASHER 8MM 212 P0453212 SET SCREW M6-1 X 16
206 P0453206 LOCK WASHER 8MM 213 P0453213 ECCENTRIC SHAFT
207 P0453207 TABLE EXTENSION WING 214 P0453214 BALL BEARING 608ZZ
208 P0453208 STAR KNOB M12-1.75 215 P0453215 BED ROLLER
209 P0453209 LOCK BOLT 216 P0453216 MAIN TABLE
