Model G0621X (Mfd. Since 07/17)
Main Components: (Figure 2) Qty
A. Bandsaw Unit ............................................. 1
B. 6" Handwheel ............................................. 1
C. Handwheel Handle ..................................... 1
D. Miter Gauge ................................................ 1
E. Table .......................................................... 1
F. Scale .......................................................... 1
G. Table Insert ................................................ 1
H. Stand Door Knob
5
⁄16"-18 x 1" ..................... 1
I. Dust Port 2
1
⁄2" ............................................. 1
J. Table Trunnion Knobs
3
⁄8"-16 ..................... 2
K. Rear Rail .................................................... 1
L. Front Rail .................................................... 1
M. Front Rail L-Brackets ................................. 2
N. L-Bracket Knobs
5
⁄16"-18 x
5
⁄8" ..................... 2
O. Fence Assembly ......................................... 1
P. Stand Assembly ......................................... 1
Fasteners and Tools: (not shown) Qty
• Rubber Feet (Stand) .................................. 4
• Hex Bolts
5
⁄16"-18 x 1" (Feet) ...................... 4
• Flat Washers
5
⁄16" (Feet) ............................. 4
• Hex Nuts
5
⁄16"-18 (Feet) .............................. 4
• Hex Bolts
5
⁄16"-18 x 3" (Stand/Bandsaw) .... 4
• Flat Washers
5
⁄16" (Stand/Bandsaw) ........... 8
• Hex Nuts
5
⁄16"-18 (Stand/Bandsaw) ............ 4
• Hex Bolt
3
⁄8"-16 x 3
1
⁄2" (Positive Stop) ........ 1
• Hex Nut
3
⁄8"-16 (Positive Stop) ................... 1
• Cap Screws
1
⁄4"-20 x
5
⁄8" (Front Rail) .......... 2
• Front Rail T-Slot Nuts (Front Rail) ............. 2
• Cap Screws
1
⁄4"-20 x
5
⁄8" (Rear Rail) ........... 2
• Guide Blocks (Blade Guides) ..................... 4
• Thumbscrews
1
⁄4"-20 x
1
⁄2" (Blade Guides) . 4
• Phlp Hd Screws 10-24 x
1
⁄4" (Dust Port) ..... 4
• Hex Wrenches 3, 5, 8mm ................. 1 each
• Flat Wrench 12/14mm ................................ 1
• Lock Nut
5
⁄16"-18 (Stand Guard) ................. 1
Inventory
A
B
C
D
E
F
J
I
P

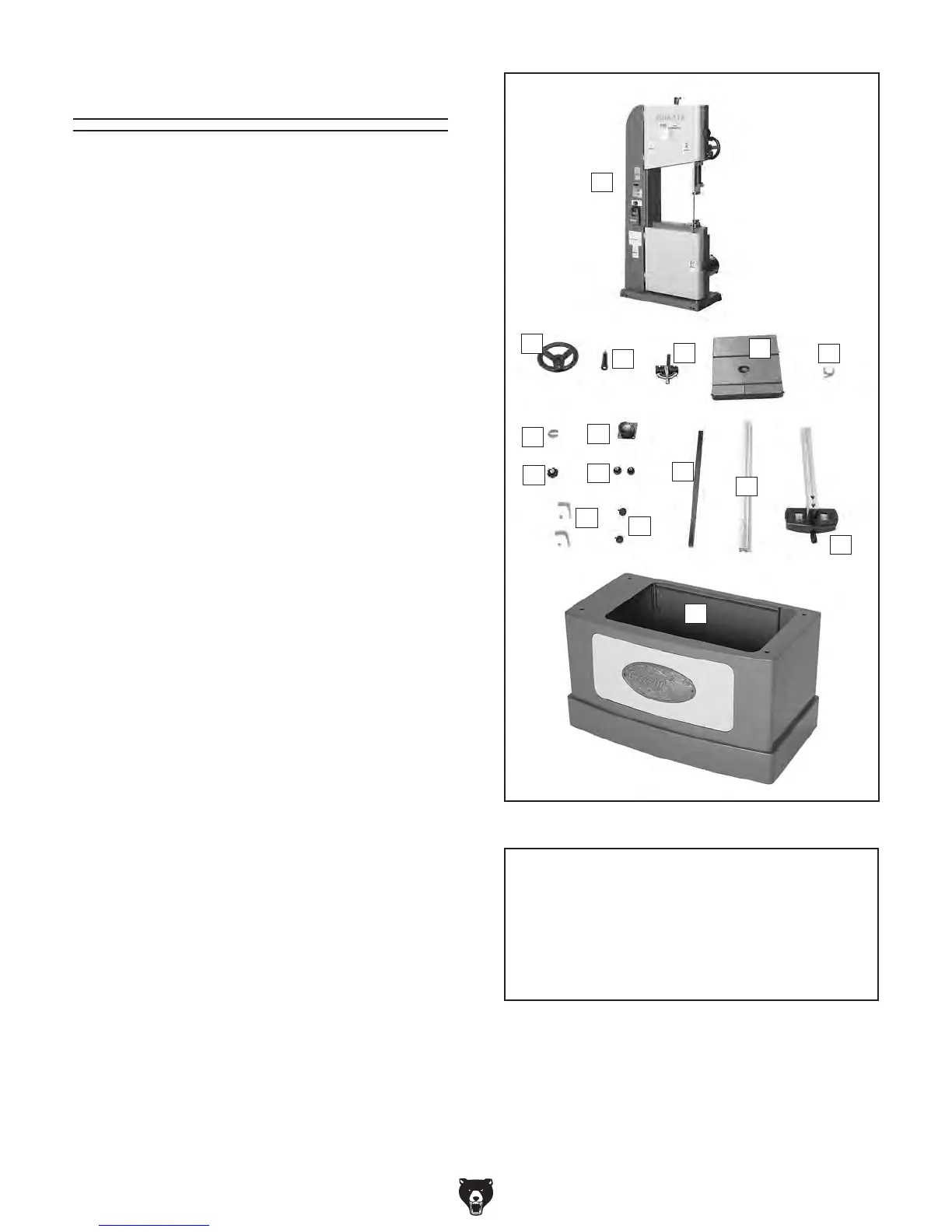

Figure 2. Main components inventory.
K
G
H
M
L
N
O
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
NOTICE
If you cannot find an item on this list, care-
fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack-
ing or they are pre-installed at the factory.
