Model G0621X (Mfd. Since 07/17)
-57-
301
302
303
300
304
305
306
307
308
309
310
303
311
312
313
314
315
316

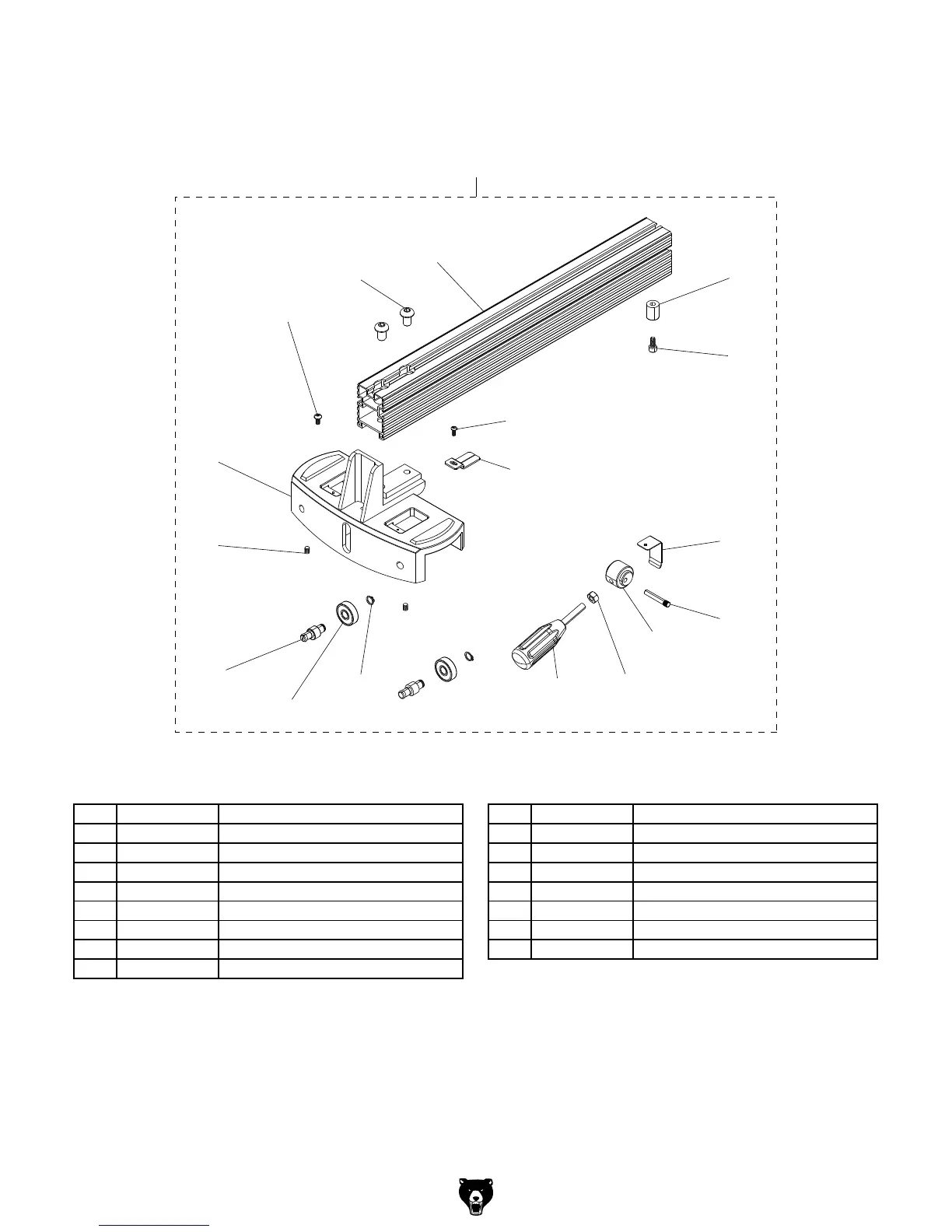

Fence Parts Breakdown
REF PART # DESCRIPTION REF PART # DESCRIPTION
300 P0621X300 COMPLETE FENCE ASSY 309 P0621X309 RUNNER
301 P0621X301 FENCE BODY 310 P0621X310 CAP SCREW M6-1 X 16
302 P0621X302 BUTTON HD CAP SCR M10-1.5 X 16 311 P0621X311 FENCE POINTER
303 P0621X303 PHLP HD SCR M5-.8 X 10 312 P0621X312 PLATE
304 P0621X304 FENCE BASE 313 P0621X313 PIN
305 P0621X305 SET SCREW 1/4-20 X 3/8 314 P0621X314 LOCK MECHANISM
306 P0621X306 ECCENTRIC SHAFT 315 P0621X315 HEX NUT M8-1.25
307 P0621X307 BALL BEARING 6200 ZZ 316 P0621X316 FENCE HANDLE M8-1.25
308 P0621X308 INT RETAINING RING 10MM
