Grizzly G0621X User Manual

-16-
Model G0621X (Mfd. Since 07/17)

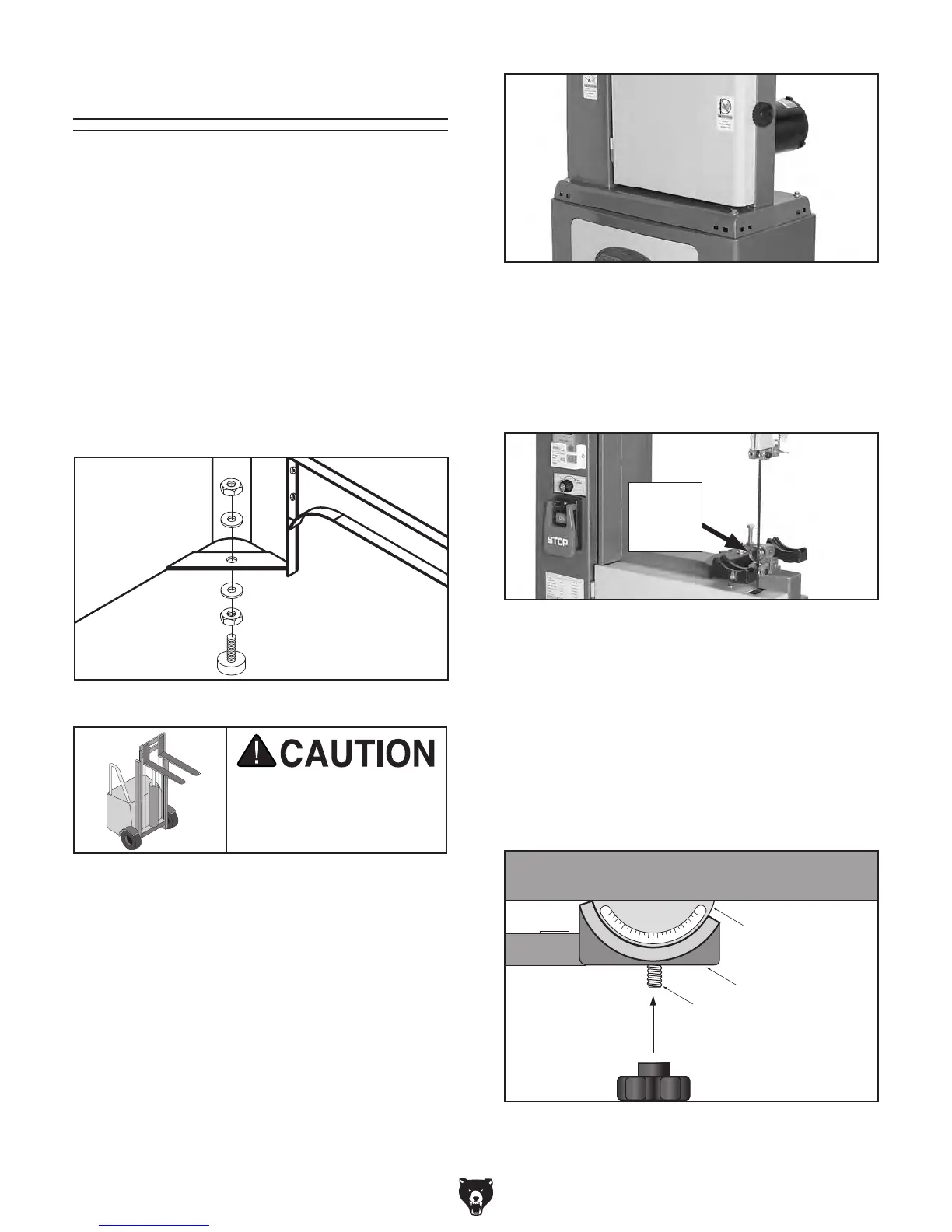

Assembly
The bandsaw is heavy
and awkward to lift. Use a
forklift or other powered
lifting aid.
To assemble the bandsaw:
1. Install the rubber feet into the bottom of the
cabinet stand, as shown in Figure 5, with the
four
5
⁄16"-18 x 1" hex bolts, four
5
⁄16" flat wash-
ers, and four
5
⁄16"-18 hex nuts.
Figure 5. Rubber foot order of installation.
2. Using a forklift or other powered lifting aid,
place the bandsaw on top of the stand.
3. Align the mounting holes on the bandsaw
base with those in the stand.
4. Secure the bandsaw to the stand with the
four
5
⁄16"-18 x 3" hex bolts, eight
5
⁄16 flat wash-
ers, and four
5
⁄16"-18 hex nuts (Figure 6).
Figure 6. Bandsaw mounted to stand.
Figure 7. Positive stop bolt installed.
Positive
Stop
Bolt
5. Thread a
3
⁄8"-16 hex nut half way up the posi-
tive stop bolt (Hex Bolt
3
⁄8"-16 x 3
1
⁄2").
6. Thread the positive stop bolt into the trunnion
base so it is installed as shown in Figure 7.
7. Remove the table pin from the table.
8. Fit the table around the blade and rest the
table trunnions on the trunnion base, making
sure the trunnion bolts extend through the
bottom of the trunnion base.
9. Thread the two table trunnion knobs onto the
trunnion bolts, as illustrated in Figure 8.
Table Trunnion
Table
Trunnion Base
Trunnion Bolt
Trunnion Knob
Figure 8. Table installation on trunnion base.
The machine must be fully assembled before it
can be operated. Before beginning the assembly
process, refer to
Needed for Setup
and gather
all
listed items.
To ensure the assembly process
goes smoothly, first clean any
parts that are
cov-
ered or coated in heavy-duty rust preventative (if
applicable).
