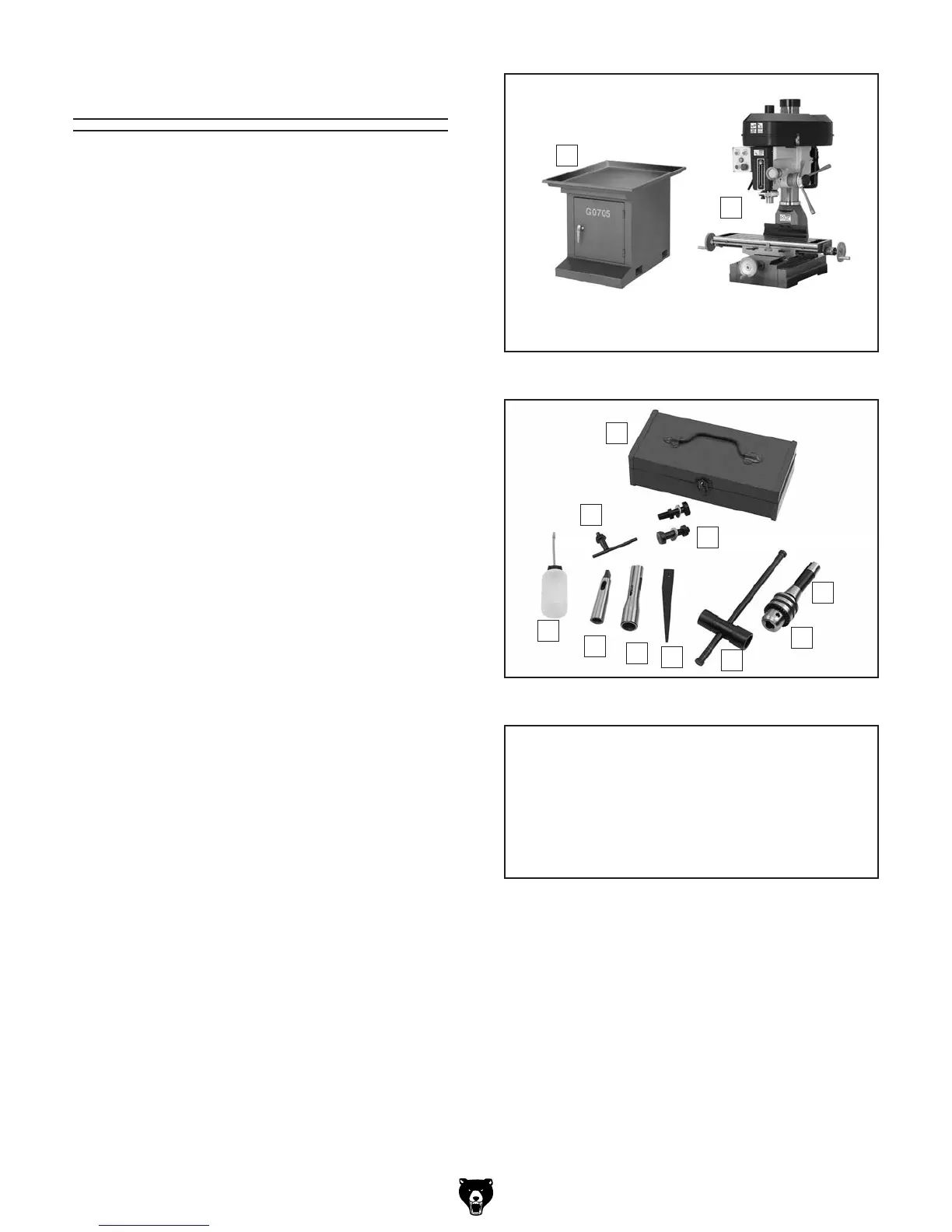

Figure 12. Inventory.
G
E
C
D
F
H
I
J
K
L
Inventory
Crate Contents (Figures 11 & 12) Qty
A. Cabinet Base .............................................. 1
B. Machine ...................................................... 1
C. Toolbox ....................................................... 1
D. Drill Chuck B16 1–13mm ............................ 1
E. Drill Chuck Arbor R8–B16 .......................... 1
F. Lug Wrench ................................................ 1
G. T-Bolt Assemblies ....................................... 2
—T-Bolt M14-2 x 55 .................................... 2
—Flat Washer 14mm .................................. 2
—Hex Bolt M14-2 ....................................... 2
H. Drill Chuck Key ........................................... 1
I. Drift Key ...................................................... 1
J. Collet Adapter R8 to MT#3 ......................... 1
K. Collet Adapter MT#3 to MT#2 .................... 1
L. Bottle For Oil .............................................. 1
Not Shown
• Hex Wrenches 3, 4, 5mm .................. 1 Each
• Hex Bolts M10-1.25 x 140 ........................... 4
• Flat Washers 10mm ................................... 4
• Lock Washers 10mm .................................. 4
• Open-End Combo Wrench 17/19mm ......... 1
• Hex Bolts M12-1.75 x 40 ............................. 4
• Hex Nuts M12-1.75 ..................................... 4
• Cap Screws M6-1 x 16 ............................... 3
• Flat Washers 6mm ..................................... 3
• Drawbar ...................................................... 1
Figure 11. Main inventory.
A
B
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
NOTICE
If you cannot find an item on this list, care-
fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack-
ing or they are pre-installed at the factory.
