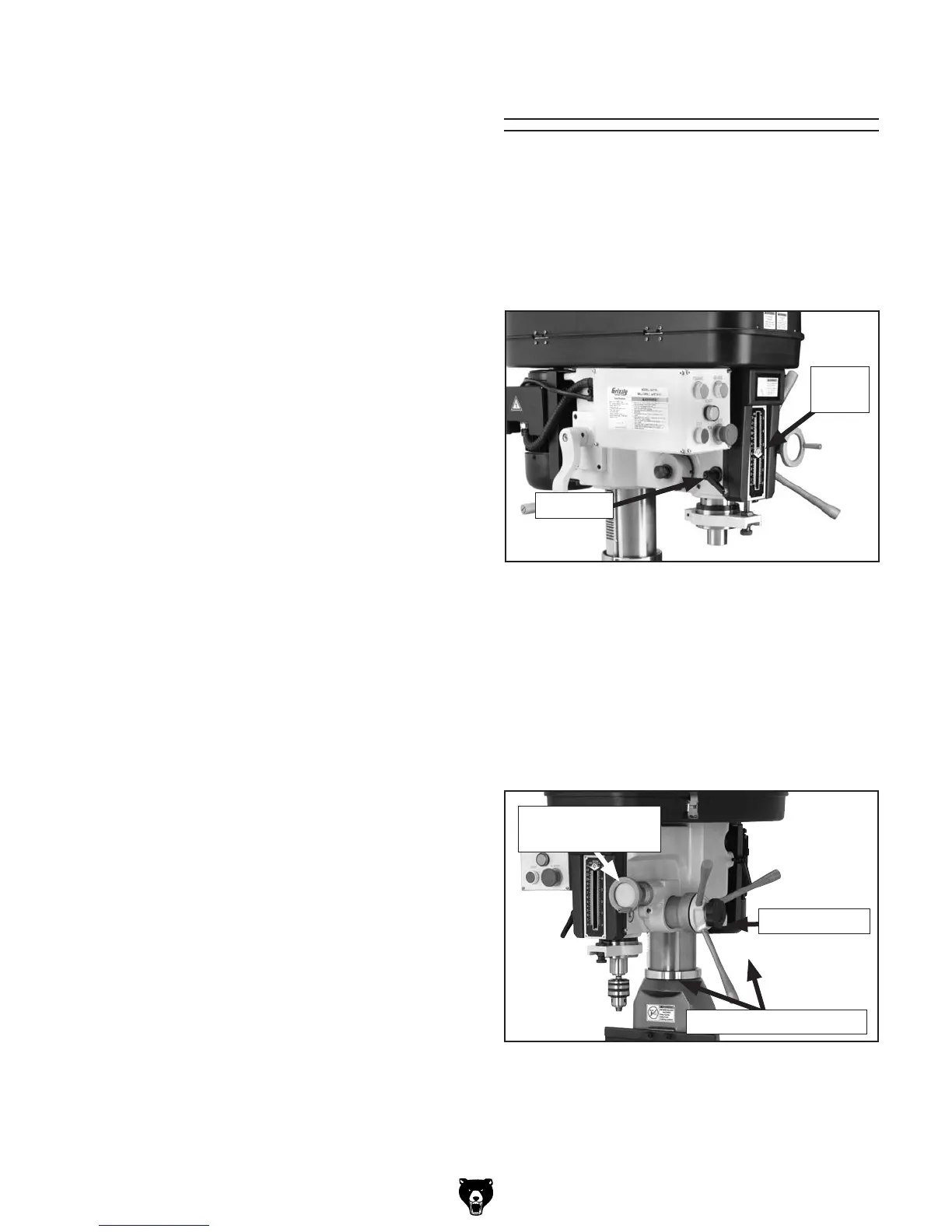

Basic Controls
Use the descriptions and figures below to become
familiar with the basic controls of your machine.
Depth Stop: Stops the spindle travel at a pre-
determined depth.
Quill Lock: Locks the quill in position.
Figure 23. Head controls.
Quill lock
Depth
Stop
Fine Downfeed Handwheel: Provides fine con-
trol over vertical spindle travel.
Locking Knob: Engages/disengages the micro-
adjustment handwheel.
Quill Downfeed Levers: Provide coarse control
over vertical spindle travel.
Figure 24. Spindle controls.
Locking Knob
Fine Downfeed
Handwheel
Quill Downfeed Levers
8. For milling operations, loosens the quill lock
lever and uses the quill feed lever or the
fine feed knob to set the cutting tool height
according to the workpiece. Then, presses
the FORWARD or REVERSE button to start
the spindle and uses the table handwheels to
move the table so the cutter removes mate-
rial evenly from the workpiece.
For drilling operations, presses the FORWARD
button and uses the quill feed lever or
fine feed knob to lower the drill bit into the
workpiece, then raises the drill bit out of the
workpiece using the same controls.
9. Presses the STOP button to stop the spindle.
