Grizzly G0705 User Manual

Model G0705 (Mfg. since 09/09)
-27-
Longitudinal Travel Handwheels: Control longi-
tudinal (X-Axis) travel of the table.
Cross Travel Handwheel: Controls cross (Y-Axis)
travel of the table.
Table Locks: Lock the table in position along
their respective axes.
Travel Stops: Limit longitudinal table travel.
Motor Locking Lever: When tightened, locks
motor in position and maintains belt tension.
When loosened, frees motor and releases belt
tension.
Headstock Lock Nuts: Clamp the headstock
to the column. Can be loosened for headstock
repositioning

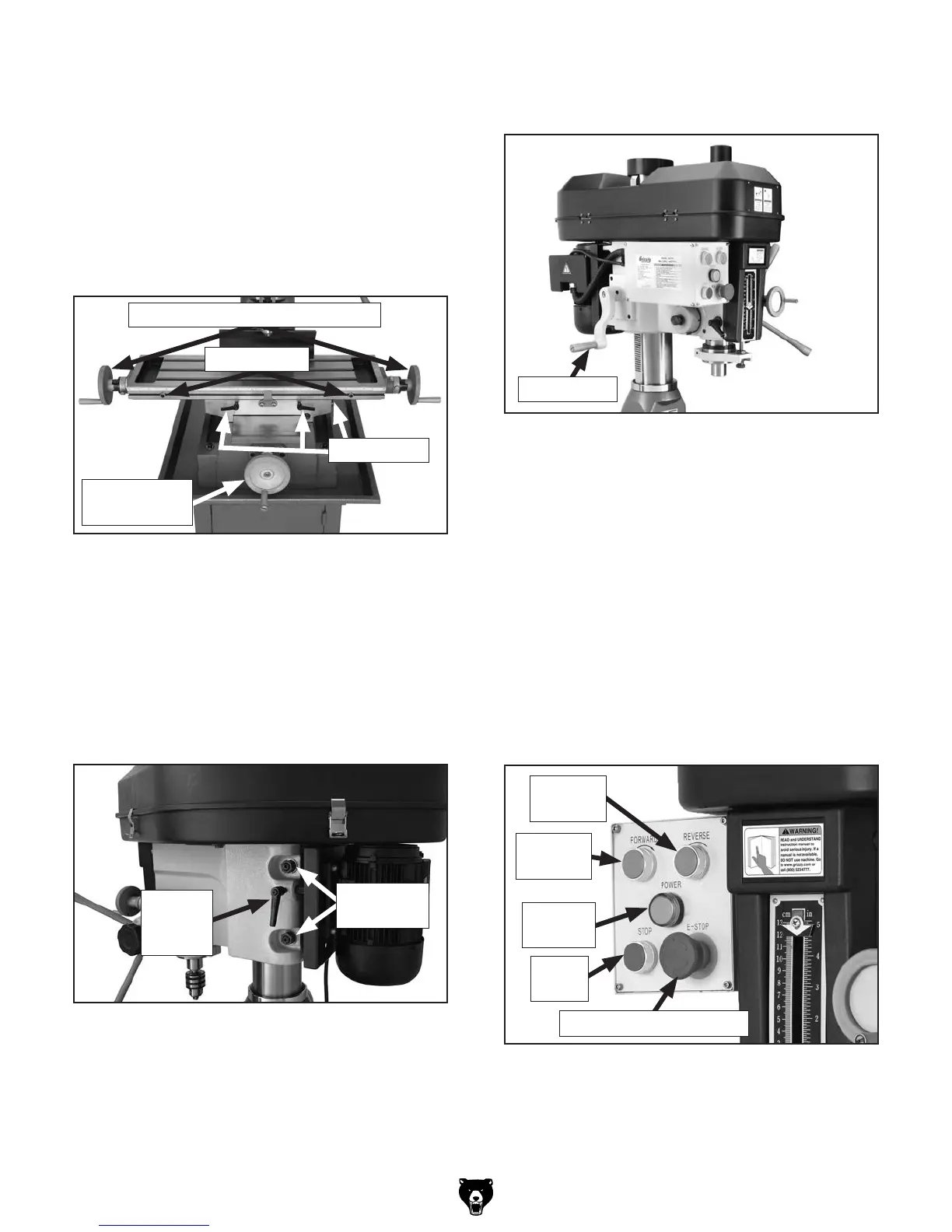

Figure 25. Table travel controls.
Longitudinal Travel Handwheels
Table Locks
Travel Stops
Cross Travel
Handwheel
Reverse Button: Moves the spindle in a counter-
clockwise direction.
Forward Button: Moves the spindle in a clock-
wise direction.
Power Indicator: Illuminates when power is sup-
plied to the machine.
Stop Button: Stops spindle rotation.
Emergency Stop Button: Cuts power to the
machine. Once pressed, must be twisted clock-
wise to reset.
Figure 28. Control panel.
Forward
Button
Emergency Stop Button
Stop
Button
Power
Indicator
Reverse
Button
Head Crank: Changes the elevation of the entire
headstock.
Figure 27. Head crank.
Head Crank
Figure 26. Headstock controls.
Motor
Locking
Lever
Headstock
Lock Nuts
