Grizzly G0705 User Manual

Model G0705 (Mfg. since 09/09)
-37-

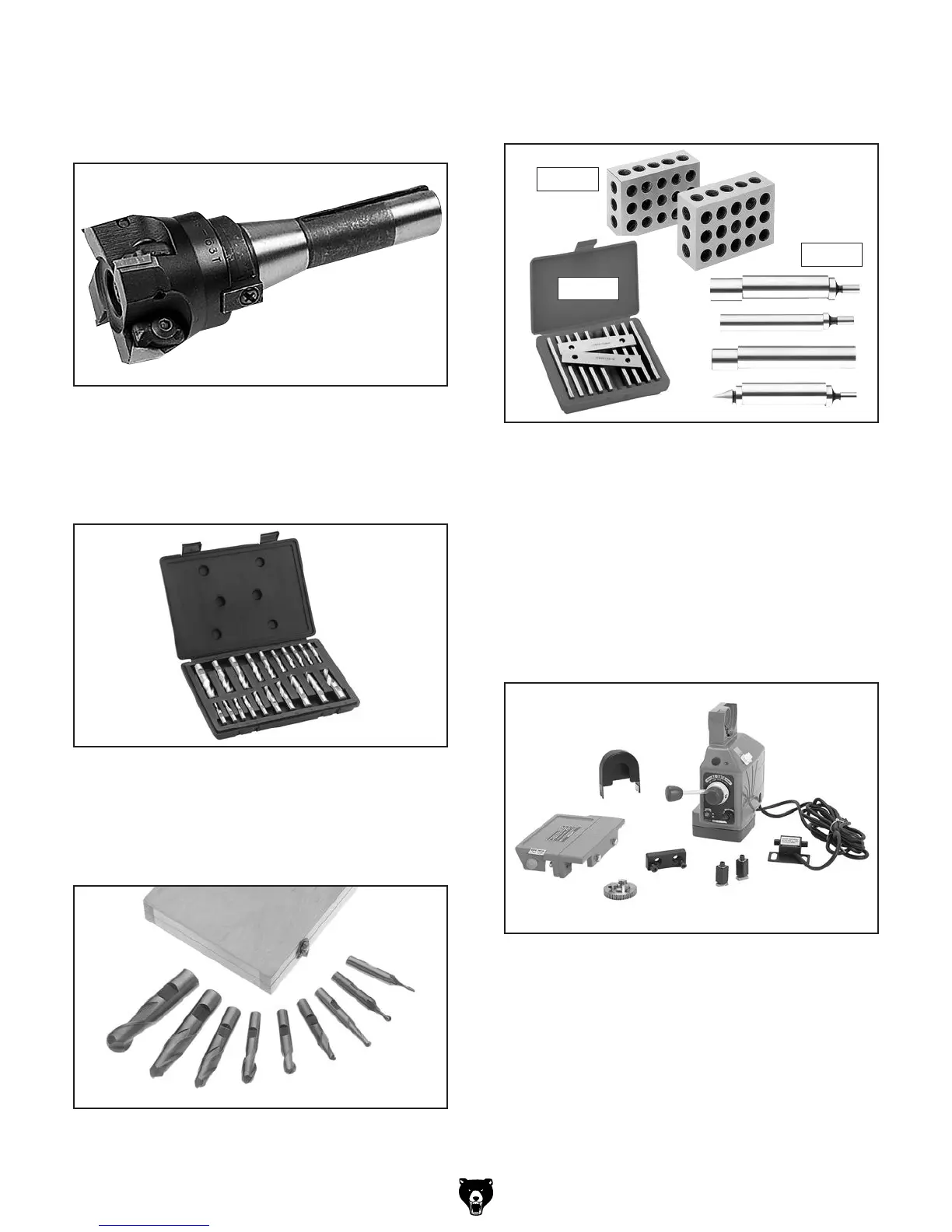

G2861—Face Mill
G4051—Carbide Insert for Face Mill
This 2
1
/2" Face Mill accepts four carbide inserts
(not included). Comes with an R-8 arbor.
Figure 49. G2861 Face Mill.
G9760—20-PC. 2 & 4 Flute TiN End Mill Set.
Includes these sizes and styles in two and four
flute styles:
3
/16",
1
/4",
5
/16",
3
/8",
7
/16",
1
/2",
9
/16",
5
/8",
3
/8",
11
/16", and
3
/4".
Figure 50. G9760 20-PC End Mill Set.
G9765—9-PC. Ball End Mill Set
Features 2 flute ball nose end mills. Includes the
following sizes:
1
/8",
3
/16",
1
/4",
5
/16",
3
/8",
7
/16",
1
/2",
5
/8"
and
3
/4".
Figure 51. G9765 9 PC. Ball End Mill Set.
G5641—1-2-3 Blocks
G9815—Parallel Set
H5556—Edge Finder Set
Figure 52. G5641 1-2-3 Blocks, G9815 Parallel
Set, and H5556 Edge Finder Set.
G5641
G9815
H5556
H8370—Power Feed for Mills
If you want to get the most out of your mill, you
really need a power feed. This power feed comes
with everything required to start milling with exact
control. Comes supplied with a mounting bracket,
gear, auto-stop limit switch with moveable stop
pins, gear guard, and motor. Specs: 0–140 RPM,
200 RPM rapid switch, 440 in/lb. maximum torque,
110V 60Hz motor, 4:1 bevel drive gear.
Figure 53. H8370 Power Feed.
