Inspect regularly for tension and wear. Refer to
Figure 57 for proper belt tension. Belt deflec-
tion should be approximately
1
⁄4" under moderate
pressure. Replacement V-belts can be found in
the back of this manual in the part breakdowns.
Check pulleys to ensure that they are properly
aligned when installing V-belts.
To replace the V-belts, refer to Speed Changes
on Page 29 to loosen the belts. Remove them
from the pulleys, then install new V-belts.
V-Belts
Pulley
Deflection
Pulley

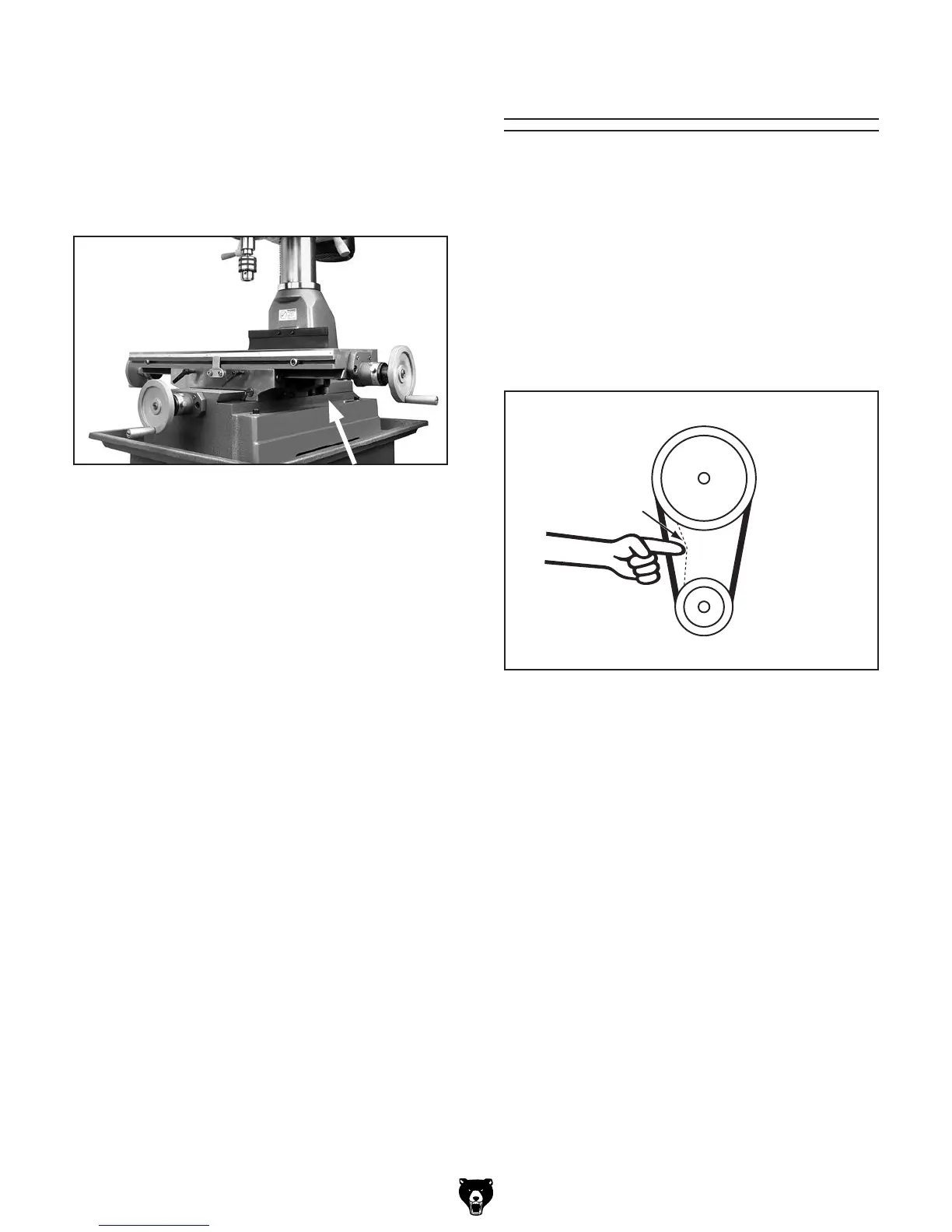

Figure 57. Belt tension.
1
⁄4"
5. Using the longitudinal handwheel, move the
table as far to one side as possible.
6. Use mineral spirits and a brush to clean as
much of the oil and debris as possible off of
the longitudinal leadscrew shown in Figure
56. Allow the leadscrew to dry.
7. Apply oil to the exposed leadscrew threads,
then move the table through its full range of
longitudinal motion several times to disperse
the oil along the full length of the leadscrew.
Figure 56. Longitudinal leadscrew location.
