Model G0765 (Mfd. Since 5/15)
-15-
Inventory
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.

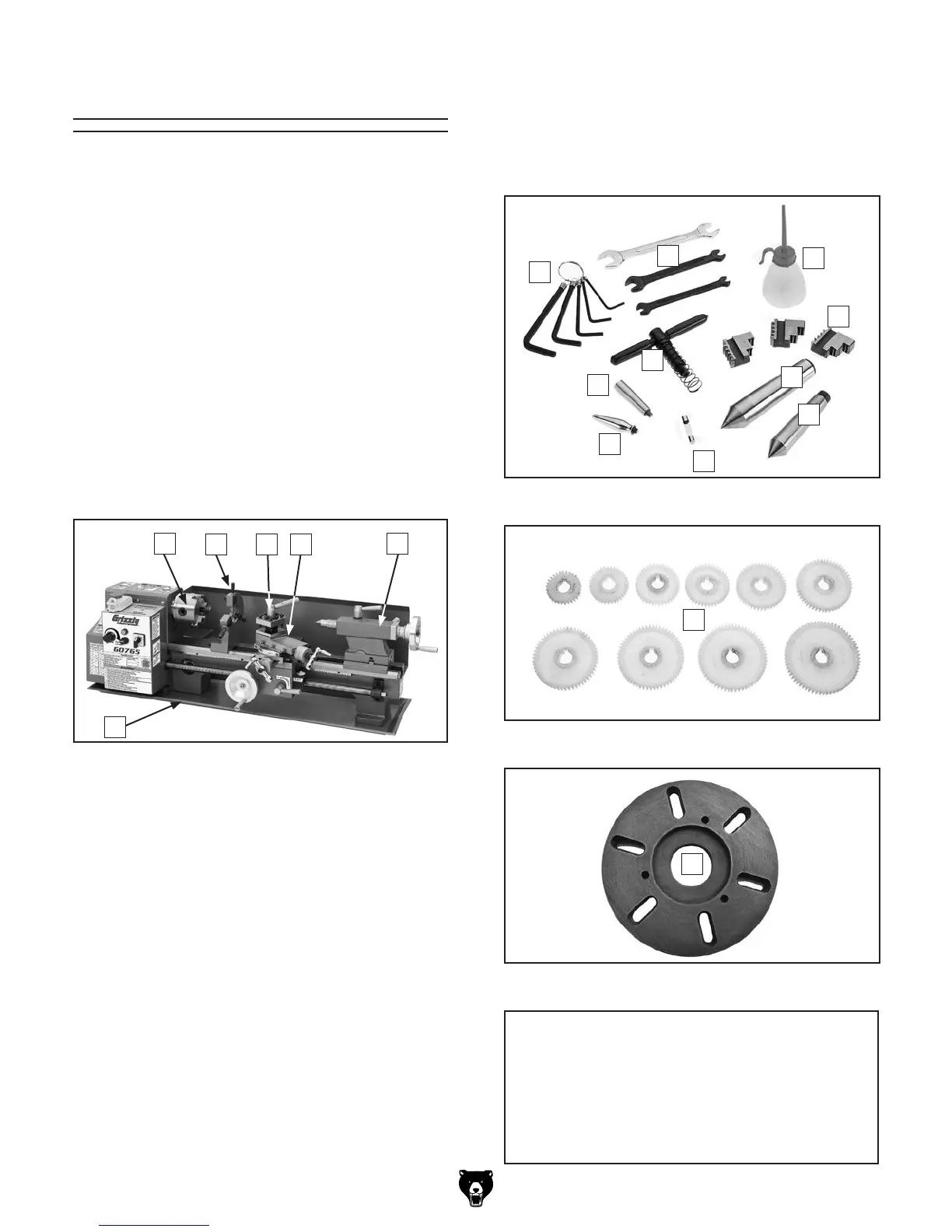

Installed Components (Figure 8) Qty.
A. 3" Three-Jaw Chuck w/Internal Jaw Set .... 1
B. Steady Rest ................................................ 1
C. 4-Way Tool Post ......................................... 1
D. Compound Rest ......................................... 1
E. Tailstock ...................................................... 1
F. Chip Tray .................................................... 1
G. Feet (not shown) ......................................... 4
Packaged Components (Figures 9–11) Qty.
H. Hex Wrench Set (2.5, 3, 4, 5, 6mm) ......1 Ea
I. Wrench Set (6/7, 8/10, 13/16mm) ..........1 Ea
J. Bottle for Oil ............................................... 1
K. 3-Jaw Chuck External Jaw Set .................. 1
L. Dead Center MT#3 ..................................... 1
M. Dead Center MT#2 .................................... 1
N. Fuse ............................................................ 1
O. Cross Slide Handwheel Handle ................. 1
P. Carriage Handwheel Handle ...................... 1
Q. 3-Jaw Chuck Key ....................................... 1
R. Change Gear Set ....................................... 1
— Change Gear (20-tooth, Installed) ......... 1
— Change Gear (30-tooth) ......................... 1
— Change Gear (35-tooth) ......................... 1
— Change Gear (40-tooth) ......................... 2
— Change Gear (45-tooth) ......................... 1
— Change Gear (50-tooth) ......................... 1
— Change Gear (55-tooth) ......................... 1
Figure 8. Installed components.
D
A
B
C
E
F
— Change Gear (57-tooth) ......................... 1
— Change Gear (60-tooth) ......................... 1
— Change Gear (65-tooth) ......................... 1
— Change Gear (80-tooth, Installed) ......... 2
S. 5" Faceplate ................................................ 1
Figure 10. Change gears.
R
Figure 11. Faceplate.
S
NOTICE
If you cannot find an item on this list, care-
fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack-
ing or they are pre-installed at the factory.
Figure 9. Packaged components.
I
J
K
L
M
N
O
P
Q
H
