-28-
Model G0765 (Mfd. Since 5/15)
Tailstock
The tailstock is typically used to support long
workpieces at the side opposite the spindle, using
a live or dead center. It can also hold a tapered
drill bit (or a drill chuck with a regular drill bit) for
boring holes. Unlike boring done with a drill press
where the workpiece is fixed and the drill bit
rotates, the drill bit in a tailstock remains station-
ary while the workpiece is rotated by the spindle.
The entire tailstock can be repositioned and
locked in place along the length of the bed. An
independently controlled offset adjustment allows
the upper part of the tailstock to move perpen-
dicular to the bedways so it can be aligned with
the spindle center (for concentric turning) or offset
from the spindle center (for tapered turning).
The tailstock quill also features independent
adjustment controls that allow it to be advanced
toward the spindle or locked firmly in position.
Graduated Dial on Handwheel
Increments ................................................. 0.001"
One Full Revolution ...................................0.200"
Increments on Quill Scale
Inch ................................ 0"–2" in
1
⁄8" Increments
Metric .................... 0–50mm in 1mm Increments
Tailstock Quill Specs
Positioning Tailstock
1. Rotate tailstock lock lever clockwise (facing
machine) to unlock tailstock from bedways.
2.
Slide tailstock to desired position by pushing
it along the bedways.
3.
Rotate tailstock lock lever counterclockwise
to lock tailstock against bedways.
Using Quill
1. Loosen quill lock lever.
2. Turn quill handwheel clockwise to move quill
toward spindle or counterclockwise to move it
away from it.
3. Tighten quill lock lever.

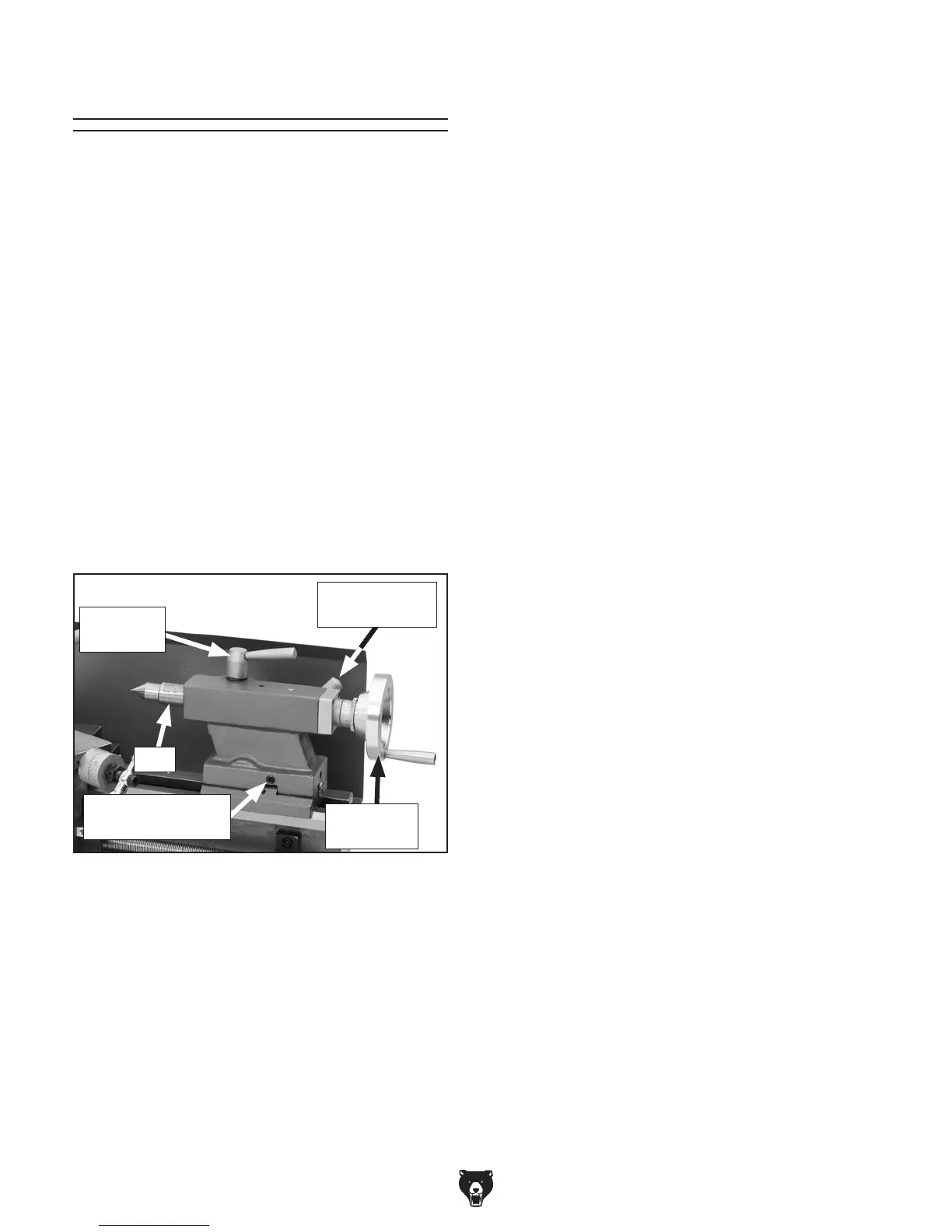

Figure 27. Tailstock controls and features.
Offset Adjustment
Screw (1 of 2)
Quill
Quill Lock
Lever
Quill
Handwheel
Tailstock Lock
Lever
