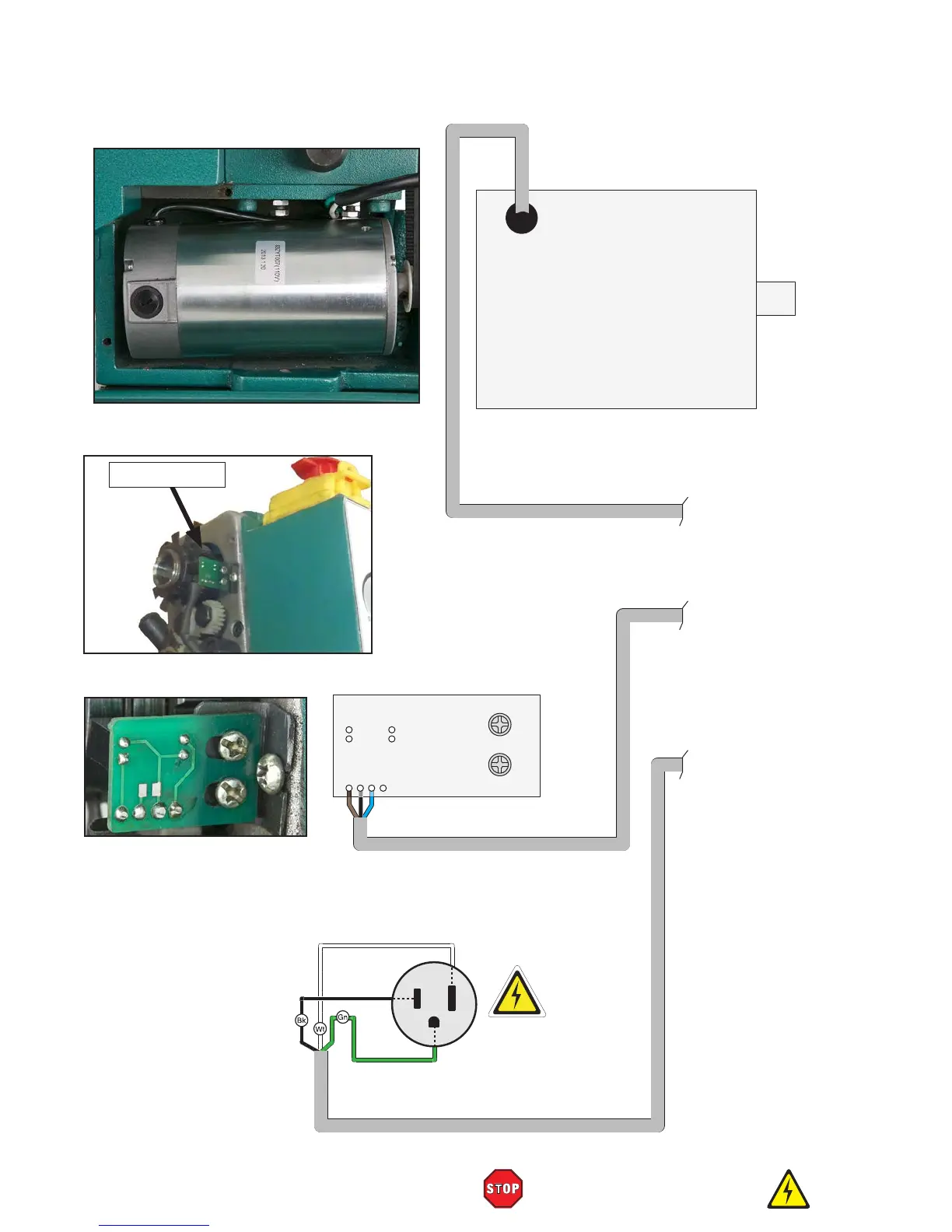

Grizzly G0765 - Motor;Speed Sensor; Plug Wiring

Model G0765 (Mfd. Since 5/15)
-63-
READ ELECTRICAL SAFETY
ON PAGE 62!
MOTOR
Neutral
Hot
Ground
110 VAC
5-15 Plug
SPEED SENSOR
83ZYT007
110V
Wires connect on back
side of circuit board
To Control Panel
Page 63
To Control Panel
Page 63
To Control Panel
Page 63
Figure 100. Speed sensor
wiring.
Figure 98. Motor wiring.
Figure 99. Speed sensor location.
Motor/Speed Sensor/ Plug Wiring
Speed Sensor
