Model G0765 (Mfd. Since 5/15)
-43-
Adjuster
Hex Nut
C (20 or 60T)
B (65T)
A (40T)
D (50T)

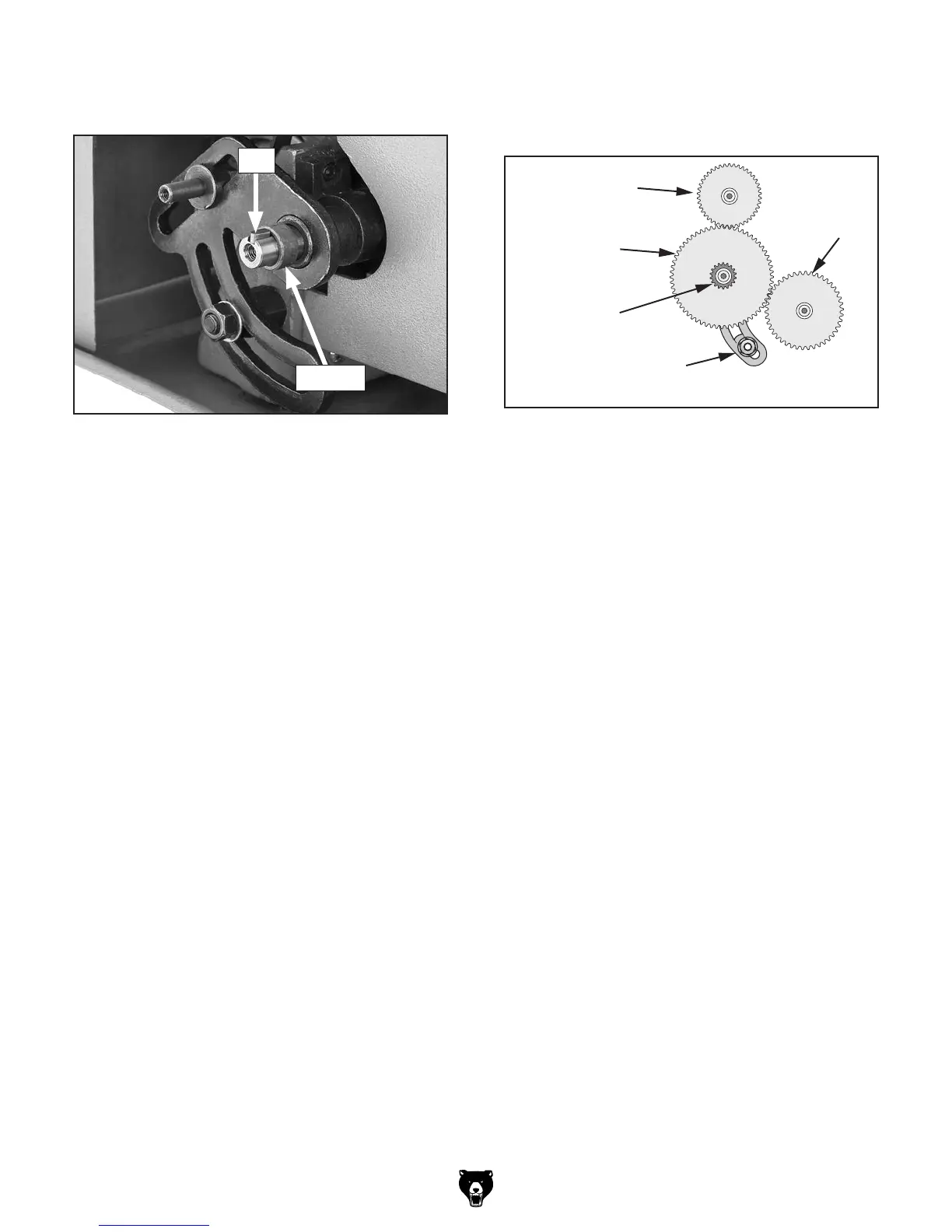

Figure 63. End gear placement.
8. Remove key and bushing from D gear shaft
(see Figure 62).
12. Slide bushing removed in Step 8 onto 50T
gear.
13. Position adjuster so gears mesh. Then tight-
en adjuster hex nut and B/C gear shaft hex
nut.
14. Secure gears with cap screws and washers
removed earlier.
15. Re-install end cover.
9. Remove existing B gear from keyed bushing
shared with C gear.
10. Slide 65T B gear onto keyed bushing and
firmly against C gear.
Figure 62. D gear shaft key and bushing.
Key
Bushing
11. Slide 40T, 65T, and 50T gears onto gear
shafts (see Figure 63), making sure to re-
install key with 50T gear.
To Next Page
