Even TPI Not Divisible by 4 or 8: Use opposing
number pairs 1 and 5 on thread dial (see example
in Figure 70).
7
1
3
5
Thread Dial
TPI Dial Number
1, 514, 18, 22, 26, 38

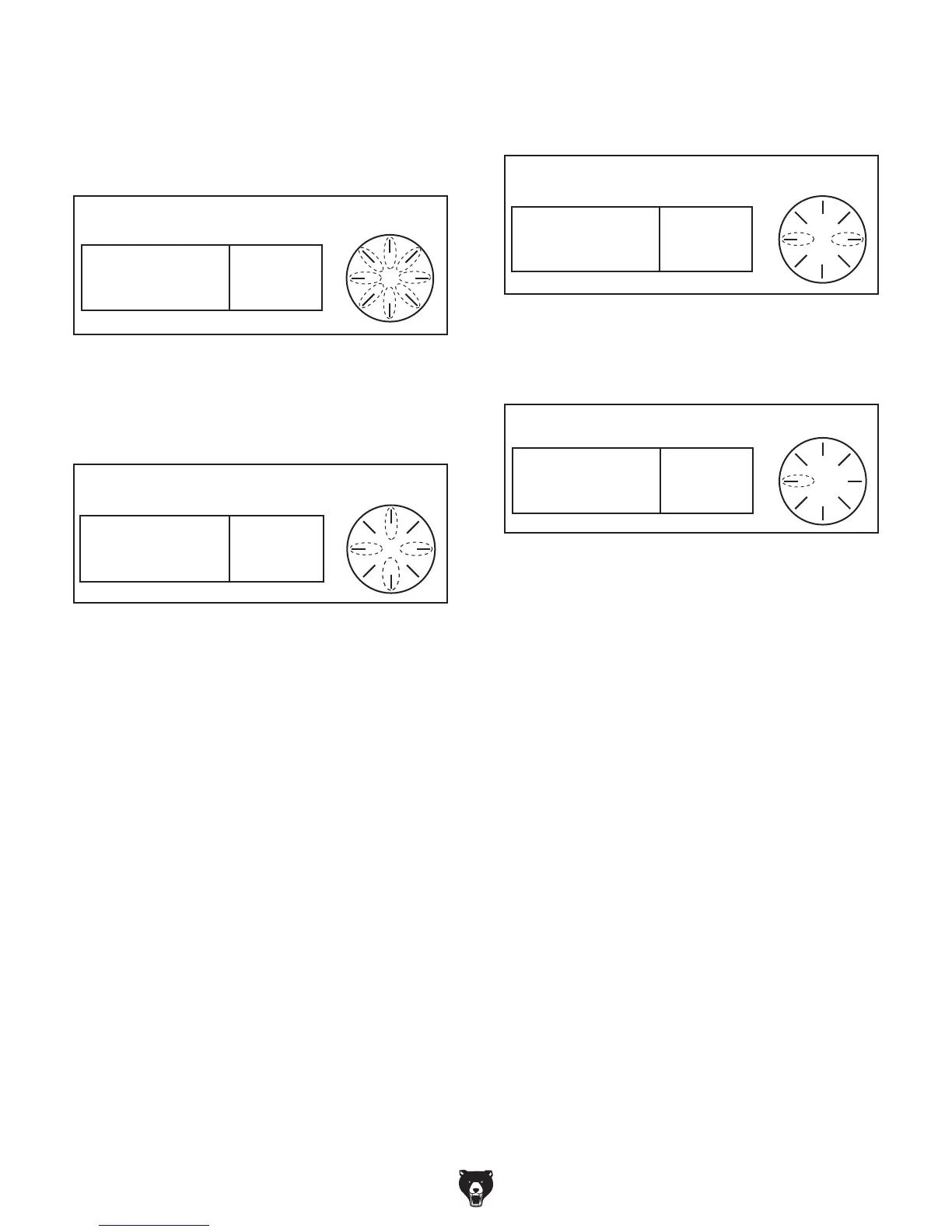

Figure 70. Example of even numbered inch
thread pitch.
Odd TPI: Use line 1 on thread dial (Figure 71).
7
1
3
5
Thread Dial
TPI Dial Number
113, 19
Figure 71. Example of odd numbered inch
thread pitch.
7
1
3
5
Thread Dial
TPI Dial Number
1, 3,5, 7
12, 20, 28, 36, 44,
52
Figure 69. Example of inch thread pitch divisible
by 4.
Even TPI Divisible by 4: Use any numbered line
on thread dial (see example in Figure 69).
The following examples explain how to use
the thread dial and the thread dial chart.
TPI Divisible by 8: Use any line on the thread dial
(see example in Figure 68).
7
1
3
5
Thread Dial
TPI Dial Number
16, 24, 32, 40, 48
1–8
Figure 68. Any position on dial for threading TPI
divisible by 8.
