Model G0765 (Mfd. Since 5/15)
-5-
Tailstock Rear Controls

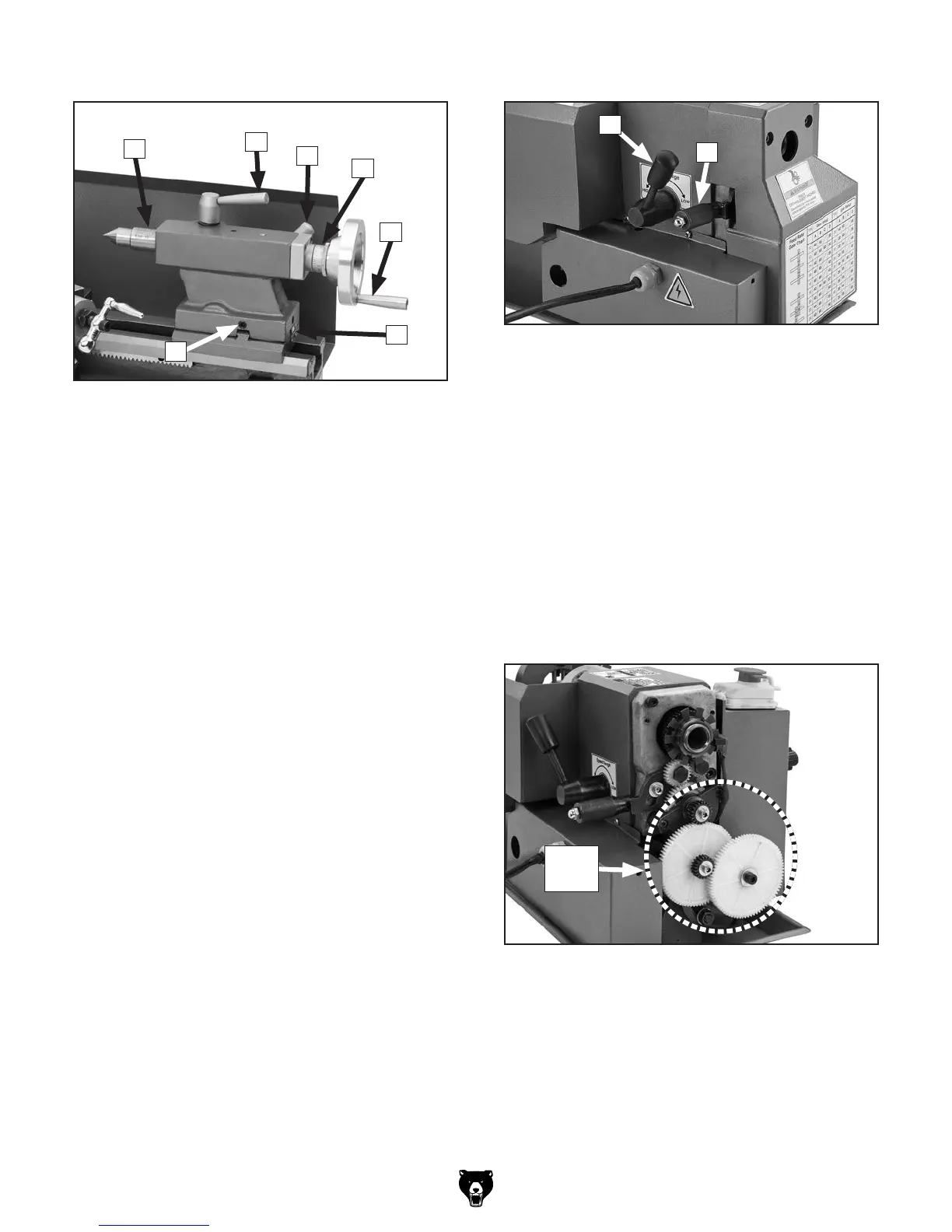

Figure 4. Tailstock controls.
O
M
N
P
Q
M. Tailstock Quill: Moves a tool or center
mounted in the tailstock toward or away from
the workpiece.
N. Tailstock Quill Lock Lever: Secures the
quill position.
O. Tailstock Lock Lever: Secures tailstock in
position along the bedway.
P. Graduated Scale: Indicates quill movement
in increments of 0.001", with one full revolu-
tion equaling 0.04" of quill travel.
Q. Quill Handwheel: Moves quill toward or
away from spindle.
R. Offset Scale: Indicates relative distance of
tailstock offset from spindle centerline.
S. Tailstock Offset Screws: Adjusts tailstock
offset left or right from spindle centerline (1 of
2).
R
S
T. High/Low Range Lever: Sets the spindle
speed range to LOW (100–1000 RPM) or
HIGH (100–2000 RPM). Do NOT shift while
lathe is running or damage to machine may
occur!
U. Feed Direction Lever: Used to select
leadscrew rotation direction. Up is for clock-
wise rotation and leftward carriage move-
ment. Center is neutral. Down is for counter-
clockwise leadscrew rotation and rightward
carriage movement.
End Gears
Figure 6. End gear components.
End
Gears
Configuring the end gears (shown in Figure
6) controls the speed of the leadscrew for thread-
ing or power feed operations.
Figure 5. Rear controls.
T
U
