Grizzly G0768 - Removing Compound Rest; Re-Installing Compound Rest

Model G0768/G0769 (Mfd. Since 8/15)
-61-
Removing
Compound Rest
The compound rest and tool post must be removed
before milling/drilling so the cross slide table can
be used as the milling table.
Re-installing Compound Rest
Align compound rest with swivel base mounting
holes and nut (see Figure 103), then secure with
cap screws previously removed.
Note: While re-installing compound rest, use a
3mm hex wrench to press swivel base up from
underneath and keep it from sliding back down
into cross slide.

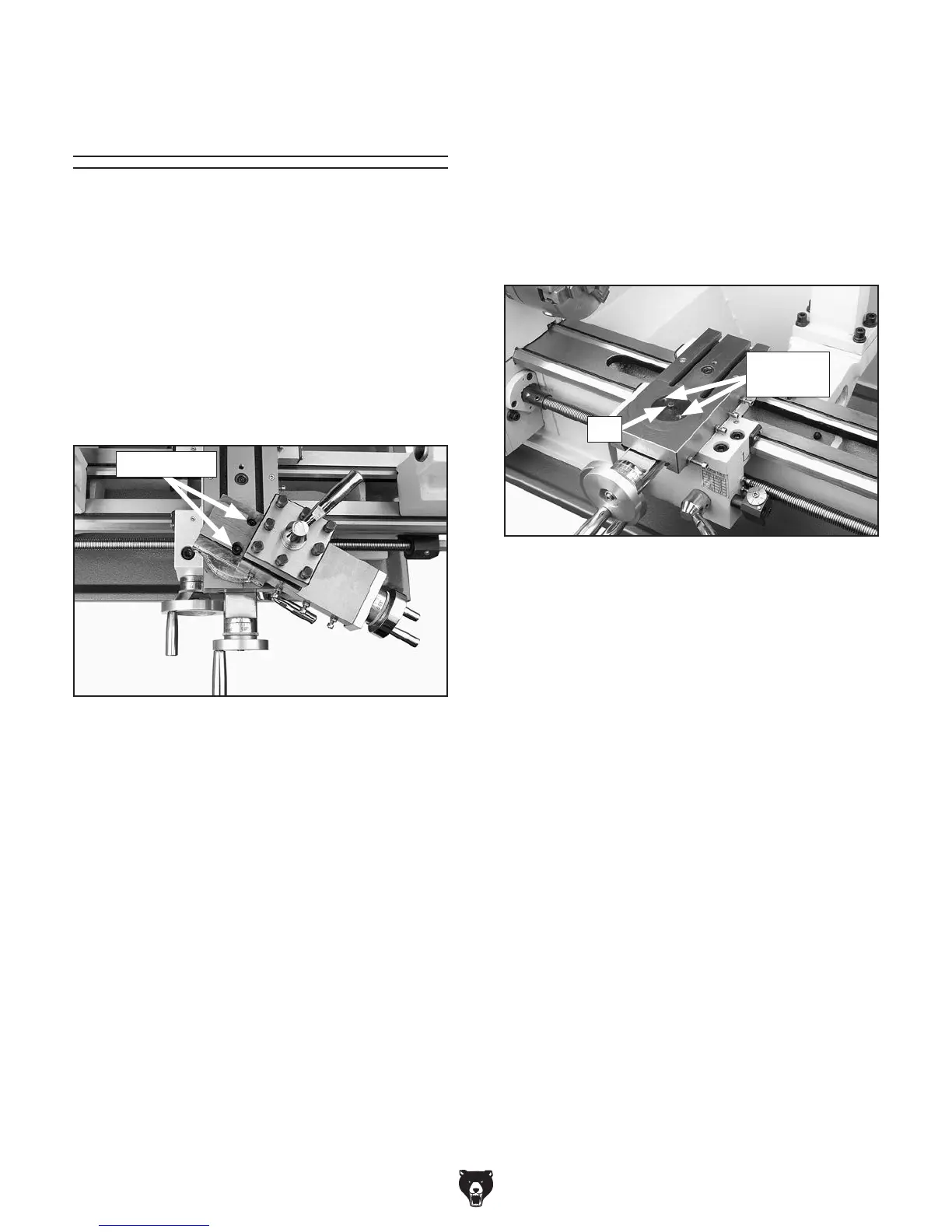

Figure 103. Swivel base components.
Mounting
Holes
Nut
Tools Needed Qty
Hex Wrench 3mm .............................................. 1
Hex Wrench 4mm .............................................. 1
Removing Compound Rest
Remove the two cap screws that secure com-
pound rest (see Figure 102), then remove it.
Figure 102. Location of compound rest cap
screws.
Cap Screws
