Model G0939/G0940 (Mfd. Since 12/20)
-15-
SECTION 3: SETUP
This machine was carefully packaged for safe
transport. When unpacking, separate all enclosed
items from packaging materials and inspect them
for shipping damage.
If items are damaged
call us immediately
at (570) 546-9663.
IMPORTANT:
Save all packaging materials until
you are completely satisfied with the machine and
have resolved any issues between Grizzly or the
shipping agent. You MUST have the original pack-
aging to file a freight claim. It is also extremely
helpful if you need to return your machine later.
Unpacking
Box 1 (Figure 6) Qty
A. 13" Planer (not shown) ............................... 1
B. Cutterhead Elevation Crank ....................... 1
C. Dust Chute ................................................. 1
D.
Cap Screw M5-.8 x 25 (Elevation Crank) ... 1
E. T-Handle Torx Wrenches T-20 (G0940) ..... 2
F.
Flat Washer 5mm (Elevation Crank) .......... 1
G.
T-Handle Hex Wrench 4mm (G0939) ......... 1
H.
Dust Port Adapter 4" .................................. 1
I.
Knob Bolts M6-1 x 14 (Dust Chute) ............ 2
J. Magnets (G0939) ........................................ 2
Magnet (G0940) ......................................... 1
K.
Hex Wrench 4mm (G0940) ........................ 1
L.
Indexable Carbide Inserts 15 x 15 x 2.5mm
(G0940) ...................................................... 5
M.
Flat Head Torx Screws T-20 M5-.8 x 12
(G0940) ...................................................... 5
NOTICE
If you cannot find an item on this list, care-
fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpack-
ing or they are pre-installed at the factory.
Inventory
The following is a list of items shipped with your
machine. Before beginning setup, lay these items
out and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
The following are needed to complete the setup
process, but are not included with your machine.
Description Qty
• Safety Glasses ........................................... 1
• Cleaner/Degreaser ..................... As Needed
• Disposable Shop Rags ............... As Needed
• Hex Wrench 4mm ....................................... 1
• Screwdriver Phillips #2 ............................... 1
• Dust Collection System .............................. 1
Needed for Setup

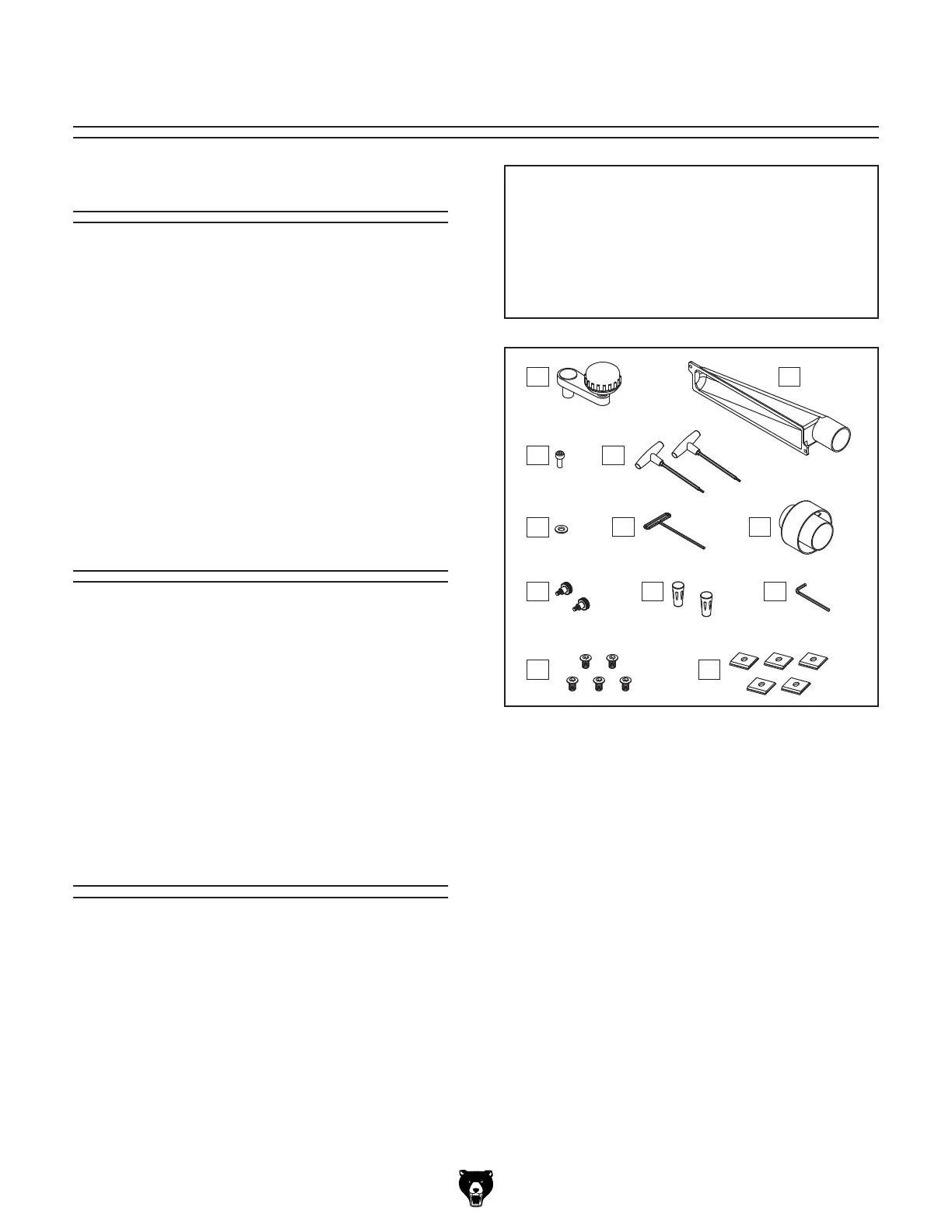

Figure 6. Model G0939/G0940 inventory.
B C
D E
G H
F
I J K
L M
To Next Page
