-44-
Model G0939/G0940 (Mfd. Since 12/20)

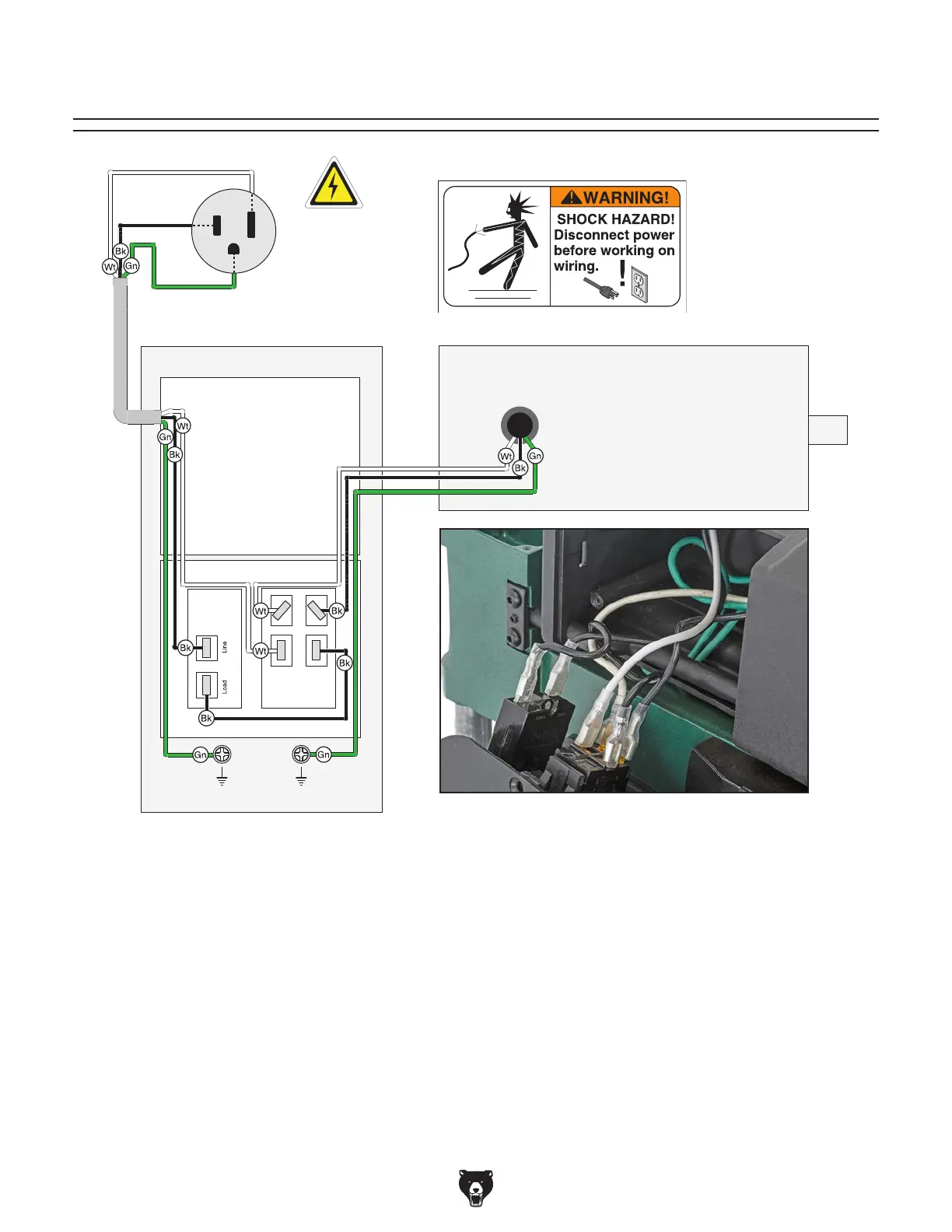

Wiring Diagram
Figure 46. Switch and circuit breaker wiring.
Neutral
Hot
Ground
120 VAC
5-15 Plug
PADDLE SWITCH BOX
120V Motor
Ground
PADDLE SWITCH COVER
Circuit
Breaker
Zhongzui 15A
125/250V
Ground
Paddle Switch
KEDU HY18
12A 125/250V
1
25
4
