Calibrating
Depth Stop Dial
The settings on the depth stop dial indicator are
pre-set by the factory to match the correspond-
ing measurements on the elevation scale. Over
time, the dial may need to be adjusted to maintain
accuracy. To ensure accurate depth of cut, always
follow the directions in Calibrating Headstock
Elevation Scale before performing the steps out-
lined below.
Tools Needed Qty
Open-Ended Wrench 14mm .............................. 1
Hex Wrench 4mm
.............................................. 1
To calibrate depth stop dial:
1.
DISCONNECT MACHINE FROM POWER!
2. Remove depth stop dial from
machine (see Figure 43).
5. Tighten hex nut to secure setting.
6. Install side panel, top assembly, and dial,
and turn cutterhead elevation crank until
cutter assembly rests gently on depth stop.
Compare depth stop dial scale to cutterhead
elevation scale.
7. Repeat Steps 2–6 as needed until both
scales match.
3.
Remove top assembly and side panels.

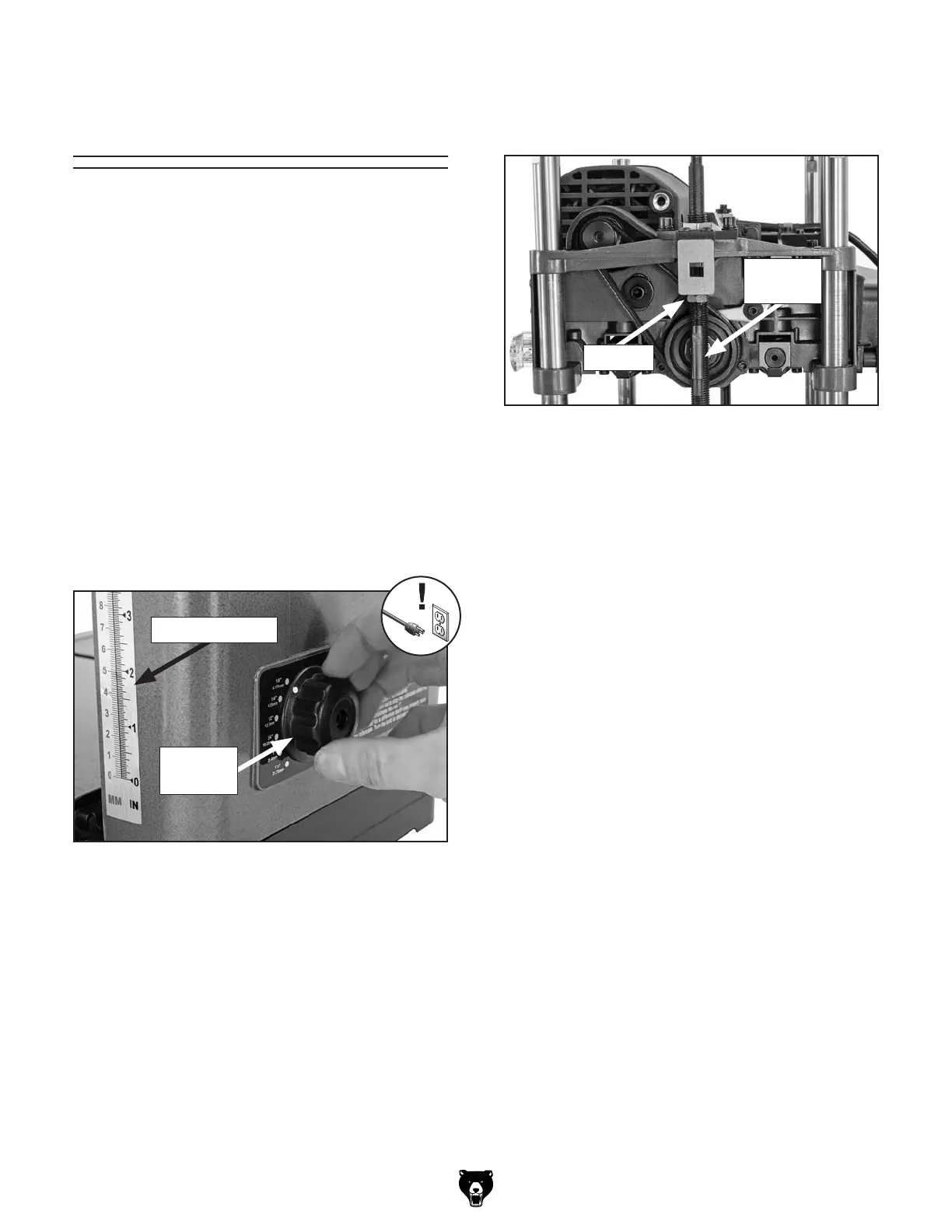

Figure 43. Removing dial from machine body.
Depth
Stop Dial
Elevation Scale
4. Loosen hex nut (see Figure 44) and adjust
height stop bolt up or down to increase or
decrease depth of cut.
Figure 44. Components to adjust depth stop
height.
Hex Nut
Height
Stop Bolt
