Internal Components
A. Infeed Roller: Rotates with the direction
of feed to pull the workpiece toward the
cutterhead.
B
. Chip Breaker: Breaks off chips created by
the cutterhead to prevent tear out and diverts
the chips to the dust port.
C. Cutterhead: Holds the knives/inserts that
remove material from the workpiece. Rotates
opposite the direction of feed.
D.
Chip Deflector: Directs chips into the dust
port.
E
. Outfeed Roller: Rotates with the direction of
feed to pull the workpiece through the planer.
F
. Planer Table: Provides a smooth, flat sur-
face for the workpiece to slide against as
it moves through planer. Planer extension
tables fold up and down for mobility.
Like all machinery there is potential danger when operating this machine. Accidents are fre-
quently caused by lack of familiarity or failure to pay attention. Use this machine with respect
and caution to decrease the risk of operator injury. If normal safety precautions are overlooked
or ignored, serious personal injury may occur.

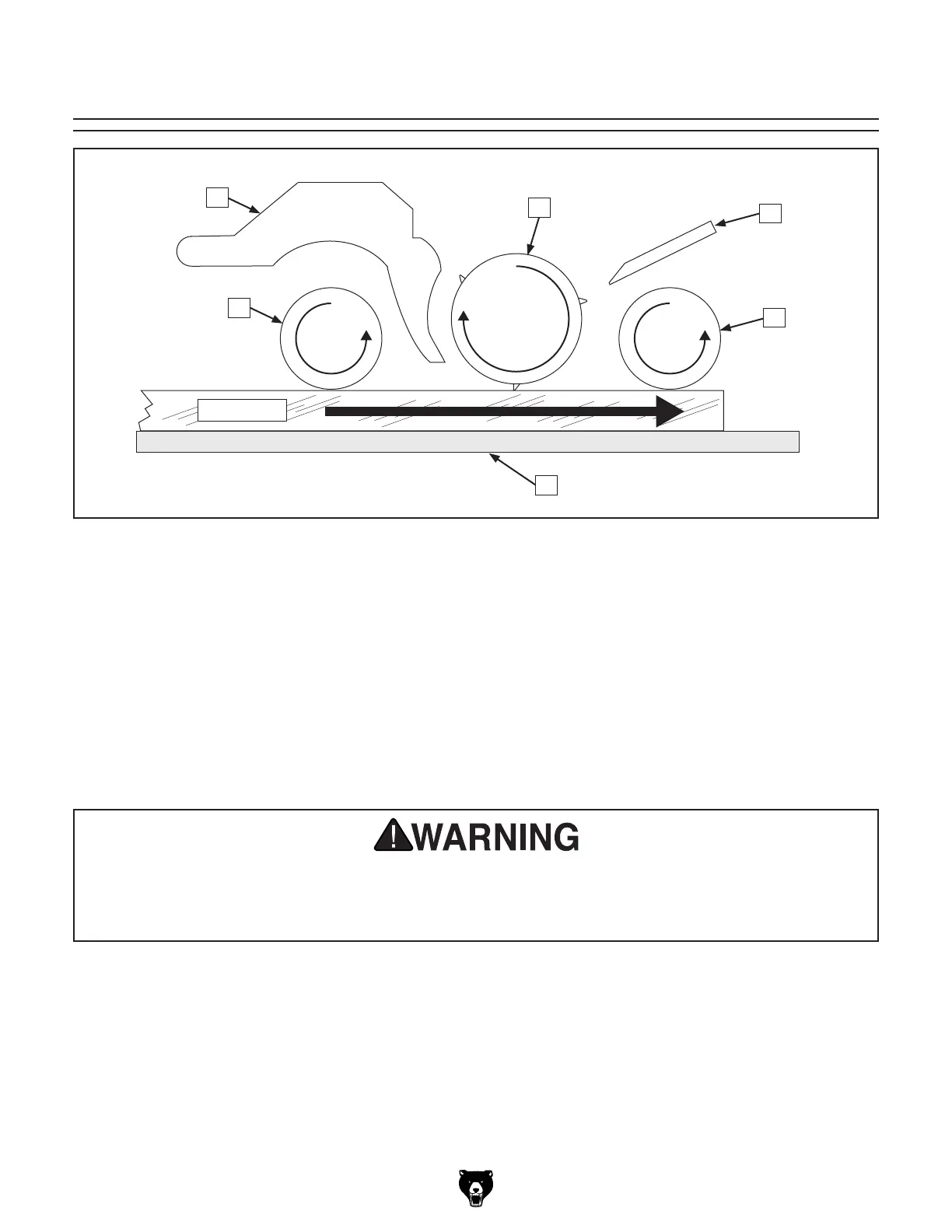

Figure 4. Workpiece path and major planing components (side cutaway view).
