IX. ASSEMBLY

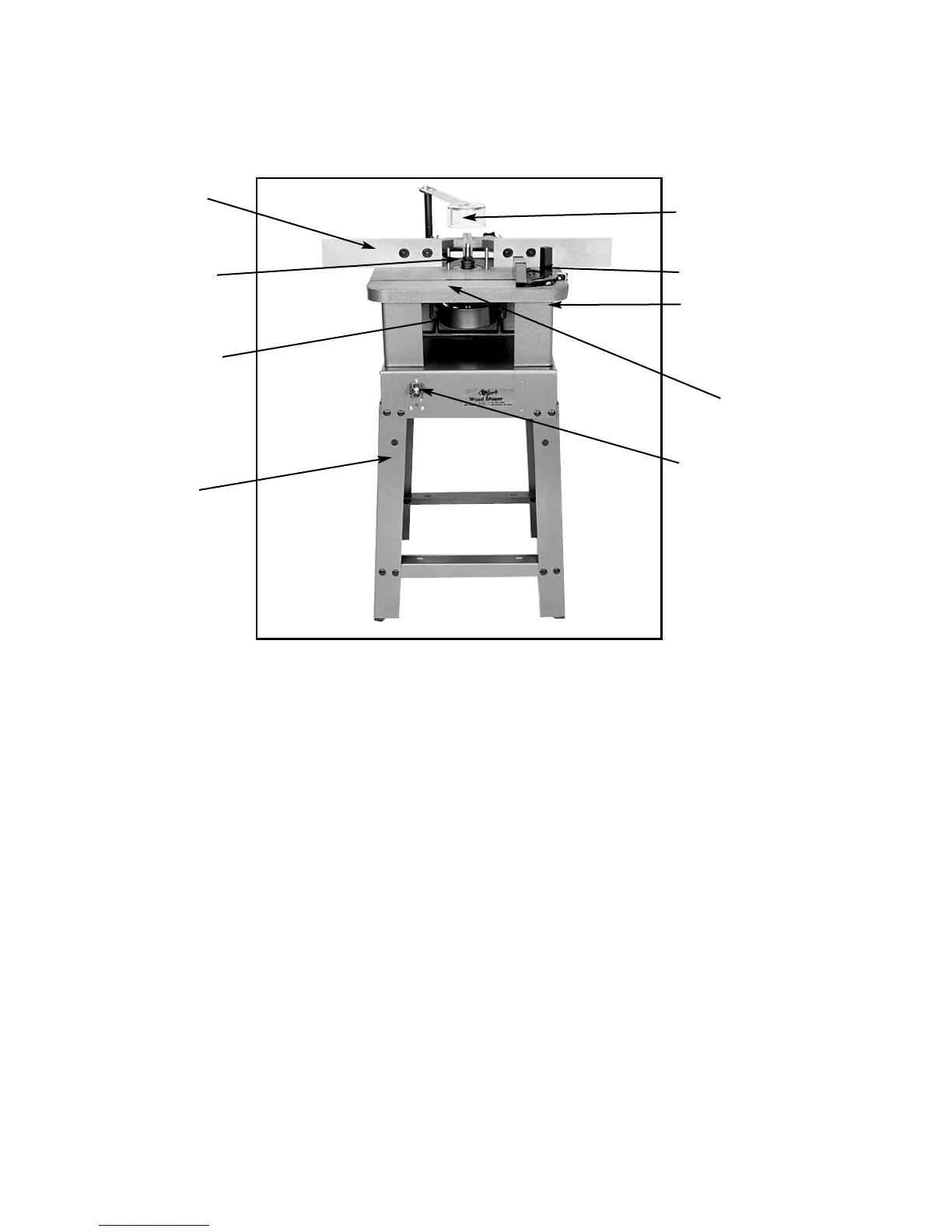

Figure 3
Carefully lift the Model G1024 Shaper from its packaging. Be sure to get plenty of help when attempt-
ing to lift or move the machine. The Model G1024 Shaper has a shipping weight of more than 150
lbs. Make sure you have plenty of help when it comes time to move the machine. The Model G1024
is largely pre-assembled at the factory, so very little actual assembly is required. The motor is
already mounted and all wiring is in place. The remaining parts which require assembly are:
A. Stand
B. Fence
C. Safety Guard
The necessary assembly can be accomplished with a few hand tools. You’ll need a 12mm wrench,
a 14mm wrench, metric Allen wrenches and a Phillips head screwdriver. An adjustable wrench and
a metric socket set are helpful, but not essential, for assembly.
FENCE
SPINDLE LOCK
KNOB
MITER GAUGE
STAND
SAFETY GUARD
TABLE
ON/OFF SWITCH
- 8 -
SPINDLE
SPINDLE
ELEVATION
HOUSING
