VIII. ELECTRICAL SERVICE REQUIREMENTS
The Grizzly Model G1024 Shaper is furnished with a complete electrical package: A 3450 RPM
TEFC
3
/4 H.P. motor, ON-OFF starter switch, FORWARD/REVERSE switch and a cord set. The
motor is single phase and may be operated on 220/240V, as well as 110/120V.
A. GENERAL
The Model G1024 comes with a standard 110V cord and plug. Its motor draws 10 amps. While that
is not excessive, using the Model G1024 on a circuit that is already close to capacity could result in
overload. If possible, add a circuit specifically for the shaper. A 15-amp circuit breaker is ideal for the
Model G1024.
If you choose to re-wire the Model G1024 for 220V operation, use NEMA-approved connecter plugs.
See Figure 2 for examples of typical plug configurations. You should also check with our service
department for specific information on motor re-wiring requirements. Your local building department
or a licensed electrical contractor should also be able to help you if electrical requirements exceed
your understanding.

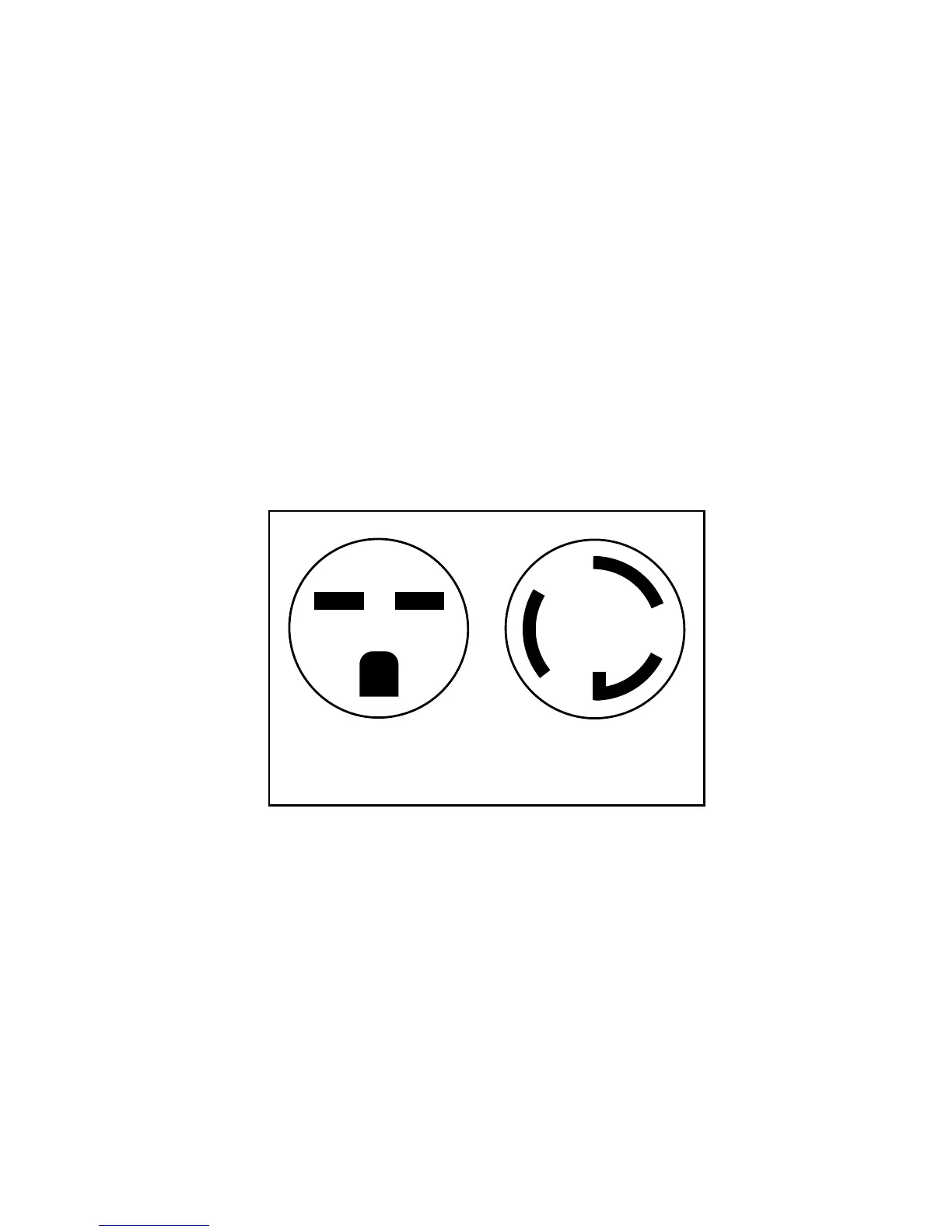

Figure 2
If you are plugging into an existing outlet, ensure that it is grounded. If not, it will be necessary to
run a separate grounding wire, #10 copper or larger, from the frame of the machine to the ground-
ing stud at your service panel.
If you find it necessary to use an extension cord with your shaper, make sure its conductors are rated
at #10 or larger (for 220V). The cord should be rated for hard service (S-type jacket), with NEMA-
approved connectors and a ground wire. An SJ-rated cord (#12-wire) should be sufficient for 110V.
CAUTION: Never cut the grounding pin from the plug. If you have problems with the electrics sup-
plied with the G1024, please contact our service department for assistance. Should you decide to
use a larger motor on the machine, DO NOT rely on the information above. Contact a licensed elec-
trician or your local building department for proper wiring requirements.
- 7 -
