Grizzly G1035 - Spindle Parts List

"*)"
BdYZa<&%(*$<&%(*EB[\#H^cXZ)$&%
''%
'&*
'&,
'&-6
'&.
'%-
'%-
'&%
''.
'&(
'&)
'&+
'%&6
'%&7
'('
'(&
'%(
'%'
'%)
'%*
'%+
'()
'%,
'((
'%&8
'%&9
'(*
''&
'''
''(
'')
''*
''+
'',
''-

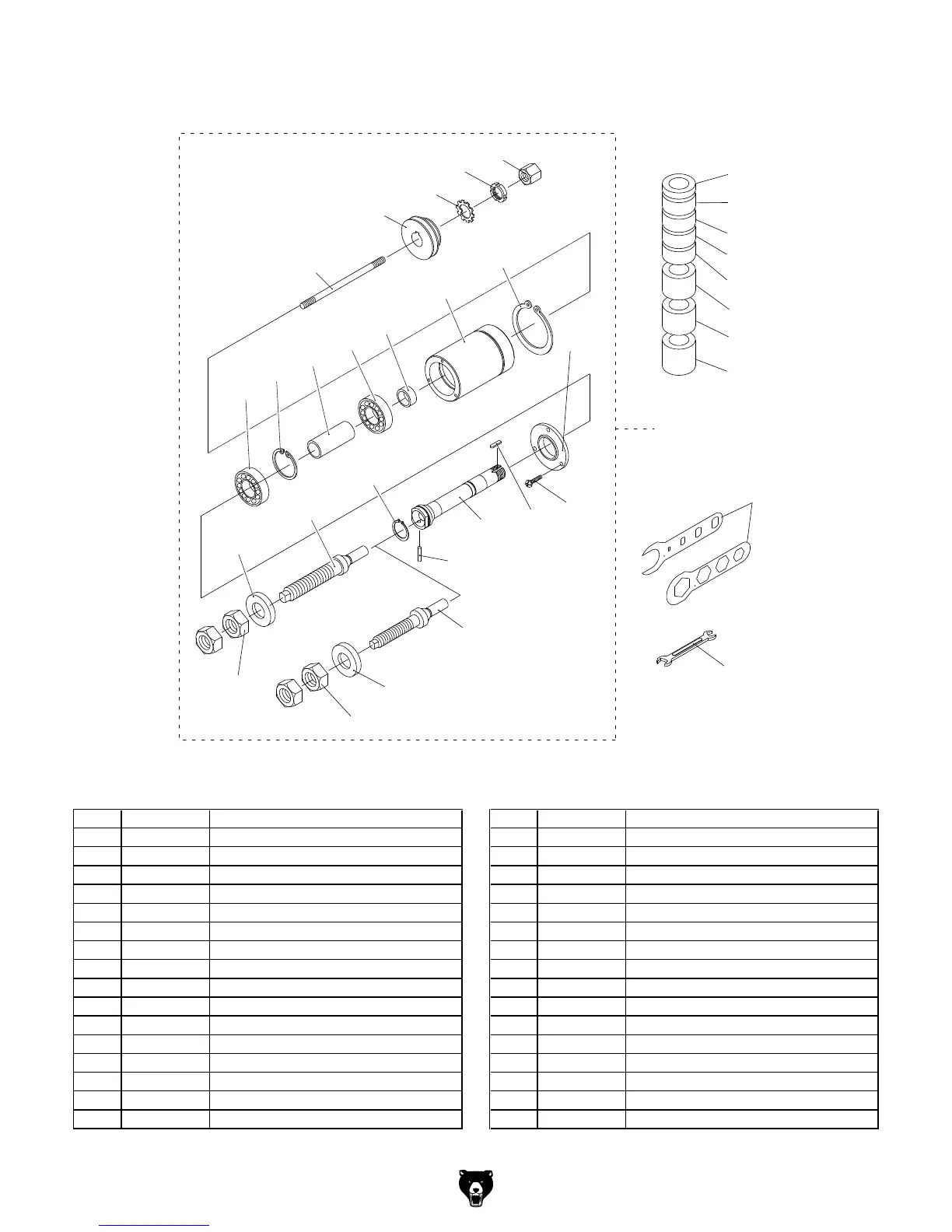

Spindle
REF PART # DESCRIPTION REF PART # DESCRIPTION
201A P1035201A SPINDLE 1/2" 218A P1035218A SMALL TOOTHED WASHER 3/4"
201B P1035201B SPINDLE 3/4" 219 P1035219 SPANNER NUT 3/4-10
201C P1035201C SPINDLE NUT 1/2" 2PC SET 220 P1035220 DRAWBAR NUT 3/4-10
201D P1035201D SPINDLE NUT 3/4" 2PC SET 221 G2454 SPACER 1/2" X 1" X 1/4"
202 PR15M EXT RETAINING RING 30MM 222 G2455 SPACER 1/2" X 1" X 3/8"
203 P1035203 PIN 223 G2456 SPACER 1/2" X 1" X 1/2"
204 P1035204 SPINDLE CARTRIDGE 224 G2457 SPACER 1/2" X 1" X 3/4"
205 PK20M KEY 5 X 5 X 15 225 G2460 SPACER 3/4" X 1-1/4" X 1/4"
206 P1035206 HOUSING CAP 226 G2461 SPACER 3/4" X 1-1/4" X 3/8"
207 PS01 PHLP HD SCR 10-24 X 1/2 227 G2462 SPACER 3/4" X 1-1/4" X 1/2"
208 P6204ZZ BALL BEARING 6204ZZ 228 G2463 SPACER 3/4" X 1-1/4" X 3/4"
210 PR25M INT RETAINING RING 47MM 229 P1035229 LONG SPACER
213 P1035213 SLEEVE 231 P1026223 SPINDLE WASHER 1/2 X 26 X 3
214 P1035214 BEARING HOUSING 232 P1026224 SPINDLE WASHER 3/4 X 32 X 3
215 P1035215 DRAWBAR 233 P1026226 SPINDLE WRENCH SET
216 PR13M EXT RETAINING RING 65MM 234 P1035234 SPINDLE ASSEMBLY
217 P1035217 STEP PULLEY 235 PWR1214 WRENCH 12 X 14
