Ground Zero DSP Series User Manual

- 10 -

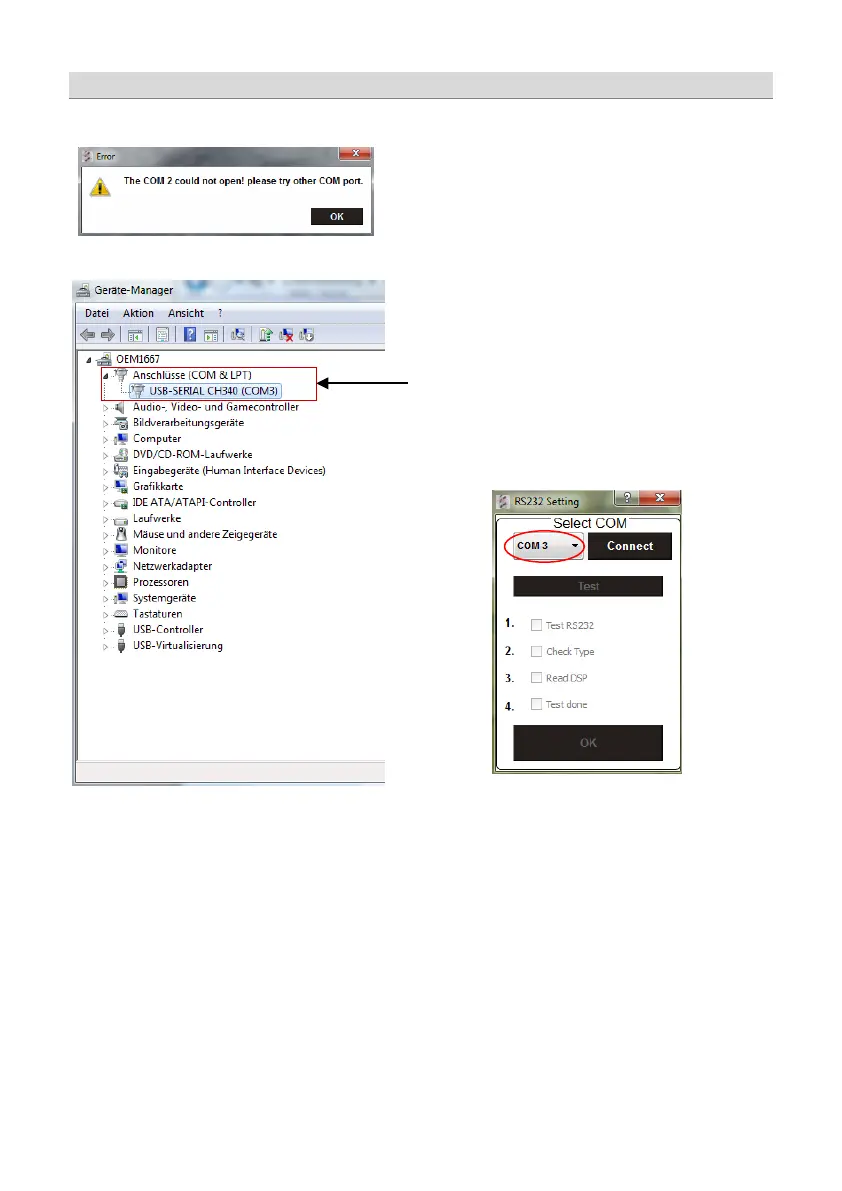

Wrong COM-Port error message
If this message will appear, the operating system
assigned the wrong COM port or it was not possible
to assign one of the COM1 to COM9 ports due to
environmental issues of the PC. The COM port
assignment may be checked with the operating
system´s device manager.
In this case the correct COM port is number 3
Close the pop-up window by clicking
OK
. Now it is
possible to select the correct COM port at the Select
COM window.
Important note:
If the assigned COM port will be COM10 or even
higher one of the unused COM ports 1 to 9 has to be
deleted in order to change the previously automatically
assigned COM port for the
USB-SERIAL CH340
device.
Subsequently, the COM port can be selected in the
properties
of the
USB-SERIAL CH340
device (right click
on the device at the device manager).
