FREQUENCY DIAGRAM
EQUALIZER
Function of the frequency diagram

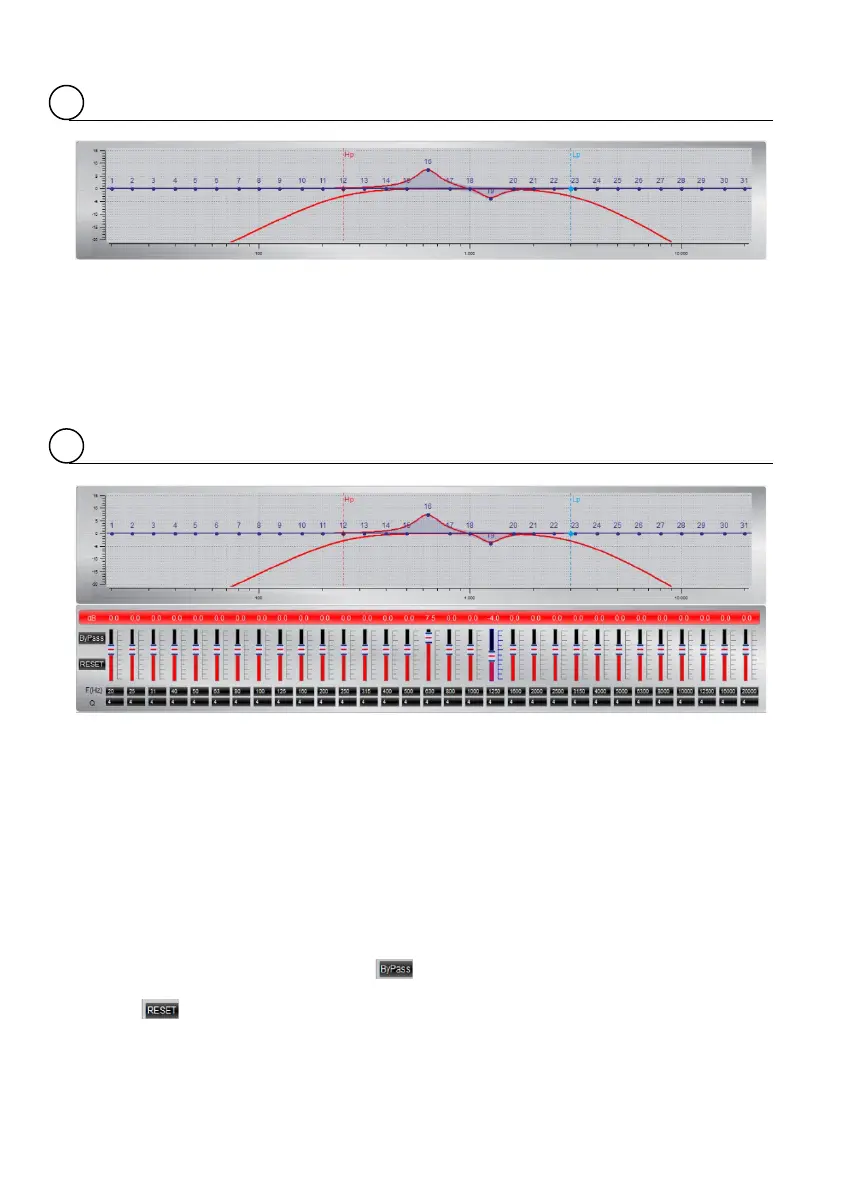

The frequency chart displays the adjustments of the 31 band equalizer (9) and the setting of the
crossover (7) for every output channel or a pair of output channels.
Furthermore the curves can be adjusted individually using the mouse (drag&drop).
Adjusting the parametric 31-band equalizer
The output channels A to F can be equalized by adjusting 31 frequency bands (20 - 20000 Hz) using
the controls (-18 to +12dB) individually. The subwoofer output channels G/H offer 11 bands (20 - 200
Hz) to adjust the audio signal.
Each frequency can be adjusted individually in 1-Hz steps in the F(Hz) window.
Additionally, it is possible to change the filter Q (bandwidth/slope) by typing the required value directly
into the box below each band control (0,5/narrow - 9,0/wide) or by using the up/down cursor buttons.
Furthermore, the curves can be adjusted individually in window 8 using the mouse (drag&drop).
The EQ-function can be deactivated with the
button without resetting the EQ-setup.
Using the
button will cause a full reset of the EQ-setup to factory setting. (Other adjustments are
not affected).
